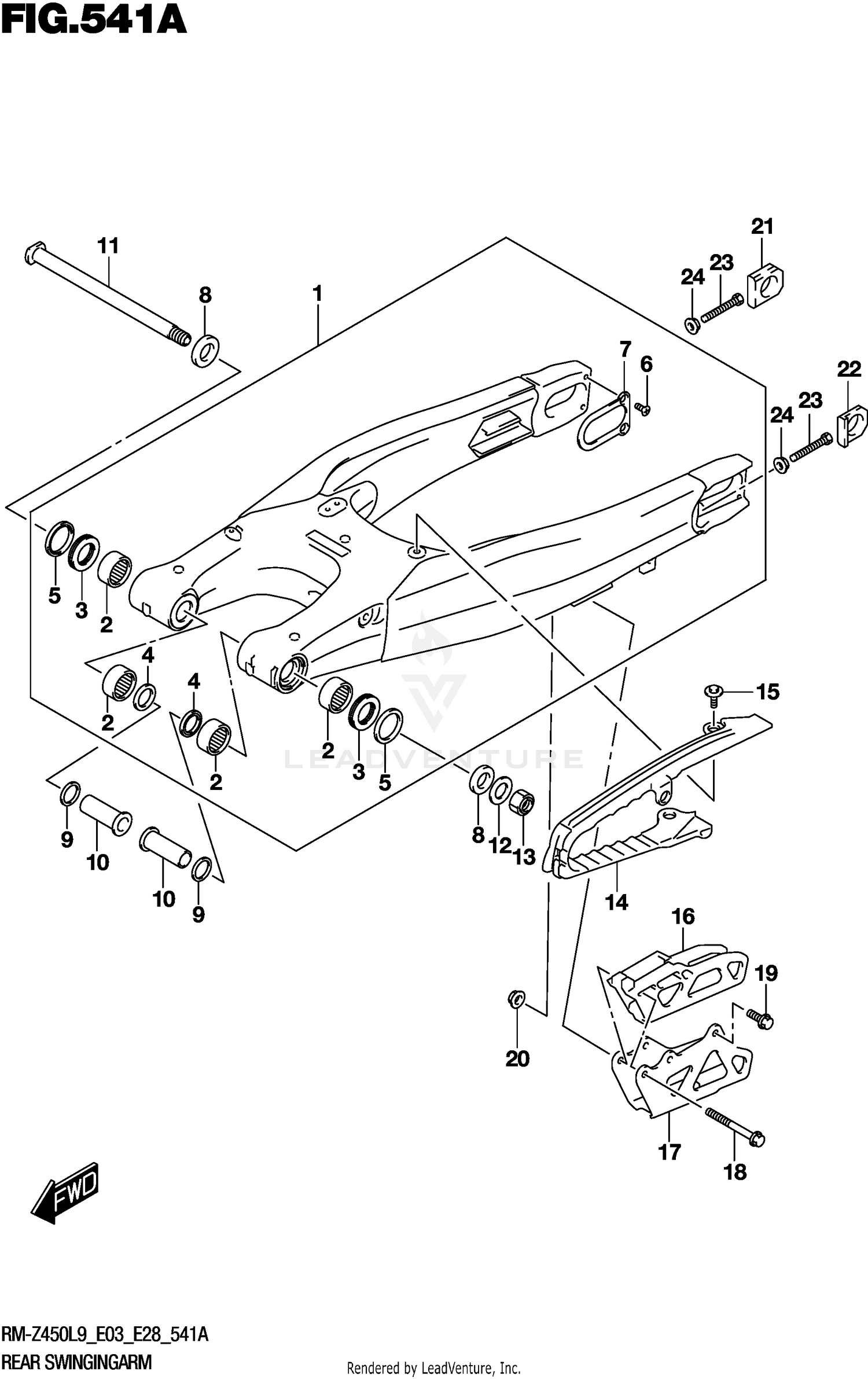

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWGARM ASSY,REAR
61000-37K00
Superseded by 61000-37K01
|
$1,466.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (22X29X15)
09263-22070
|
$37.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (22X35X2)
09263-22064
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
09285-22001
Superseded by 09285-22006
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,REAR SWGARM PIVOT,OUTER
61262-36E00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW (5X12)
09120-05005
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PLATE,SWGARM REAR
61128-28H30
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,RR SWGARM PIVOT,OUTER
61251-36E01
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-22365
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER,SWGARM PIVOT,INNER
61252-37F01
|
$49.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT,RR SWGARM PIVOT
61211-35G00
|
$95.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08322-0116B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-16007
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUFFER,CHAIN TOUCH DEFENSE
61273-37K00
|
$40.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X16)
09111-06251
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE,CHAIN
61341-37K00
|
$50.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE,CHAIN GUIDE
61342-37K00
|
$40.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER,CHAIN ADJUSTER,R
61445-28H11
|
$54.94 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,CHAIN ADJUSTER,L
61446-35G01
|
$41.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X50)
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
09159-08034
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
