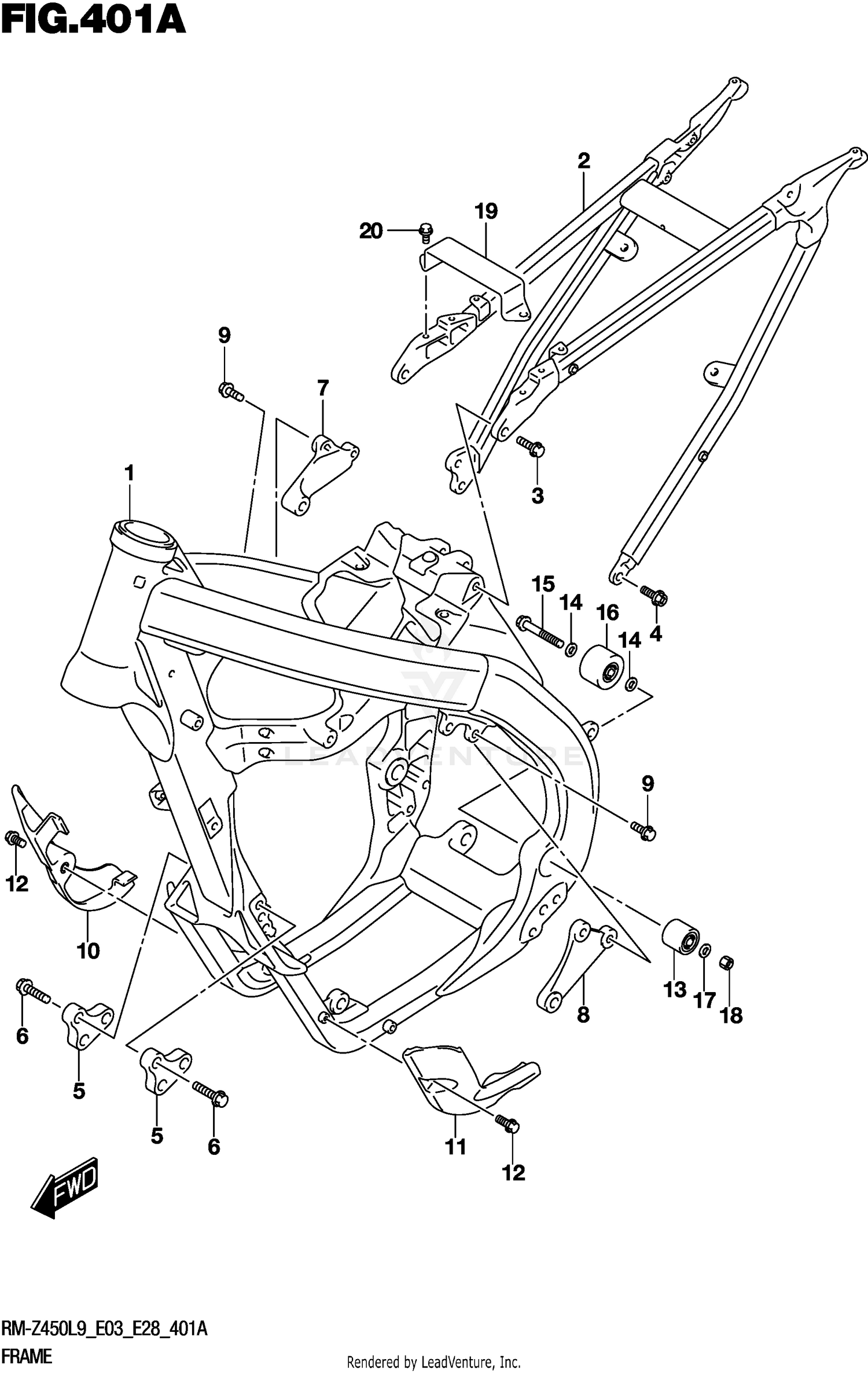

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
41100-37K00
Superseded by 41100-37K10
|
$3,336.80 | ||
|
Unavailable |
|||
|
#2
RAIL,SEAT
41200-37K00
|
$849.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HOOK
09103-08255
Superseded by 09103-08288
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X20)
09103-08505
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,ENG MTG FR
41991-37K00
|
$57.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (10X32)
09103-10342
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,ENG MTG UPPER,R
41931-37K00
Superseded by 41931-37K01
|
$96.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,ENGINE MOUNT UPPER LH
41941-37K01
|
$109.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (8X20)
09103-08505
|
$3.77 | ||
|
Unavailable |
|||
|
#10
PROTECTOR,FRONT RH
42520-28H10
Superseded by 42520-28H11
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR,FRONT LH
42530-28H20
|
$32.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X25)
09116-06177
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROLLER,CHAIN
43910-37F00
|
$74.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM (8X16X1)
09181-08167
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X45)
09103-08207
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER,CHAIN
43910-37F00
|
$74.07 | ||
|
Unavailable |
|||
|
#17
SHIM (8X12X1)
09181-08111
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-2108A
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BRIDGE,SEAT RAIL UPPER
41540-37K00
|
$104.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
