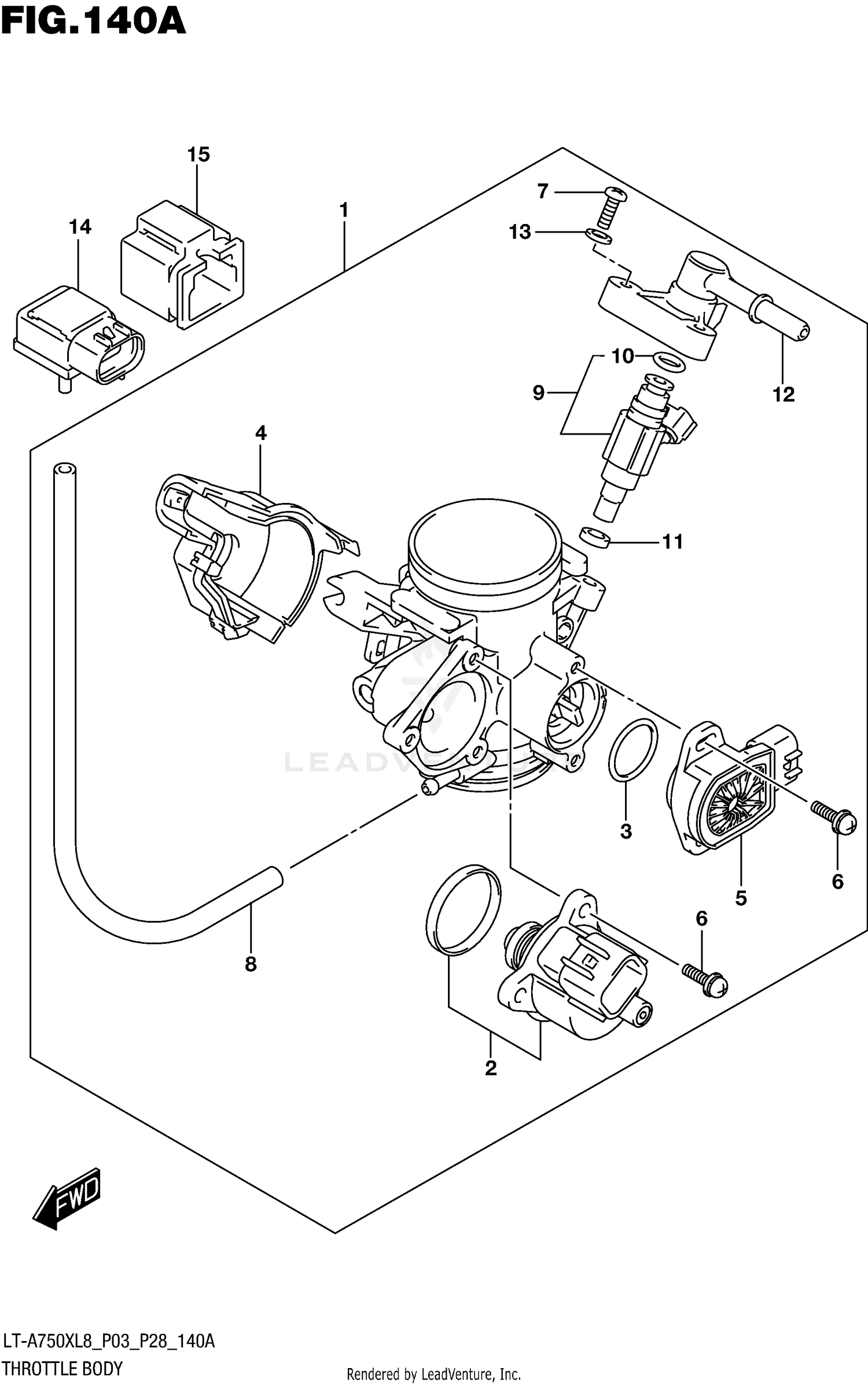

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY, THROTTLE
13400-31G10
|
$886.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
.MOTOR, ISC STEPPING
13520-31G00
|
$263.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O RING
13575-31G00
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
.COVER
13578-31G00
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SENSOR ASSY
13580-31G00
|
$264.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW
13601-13G00
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW
13601-11J00
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13683-10F70
Superseded by 13683-10F71
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
.INJECTOR ASSY, FUEL
15710-31G10
|
$281.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
..O RING
15717-31G00
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL
15722-29G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
.DELIVERY PIPE
15731-31G10
|
$228.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, AIR PRESSURE
15620-10G00
|
$250.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, AIR PRESSURE
15625-10G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
