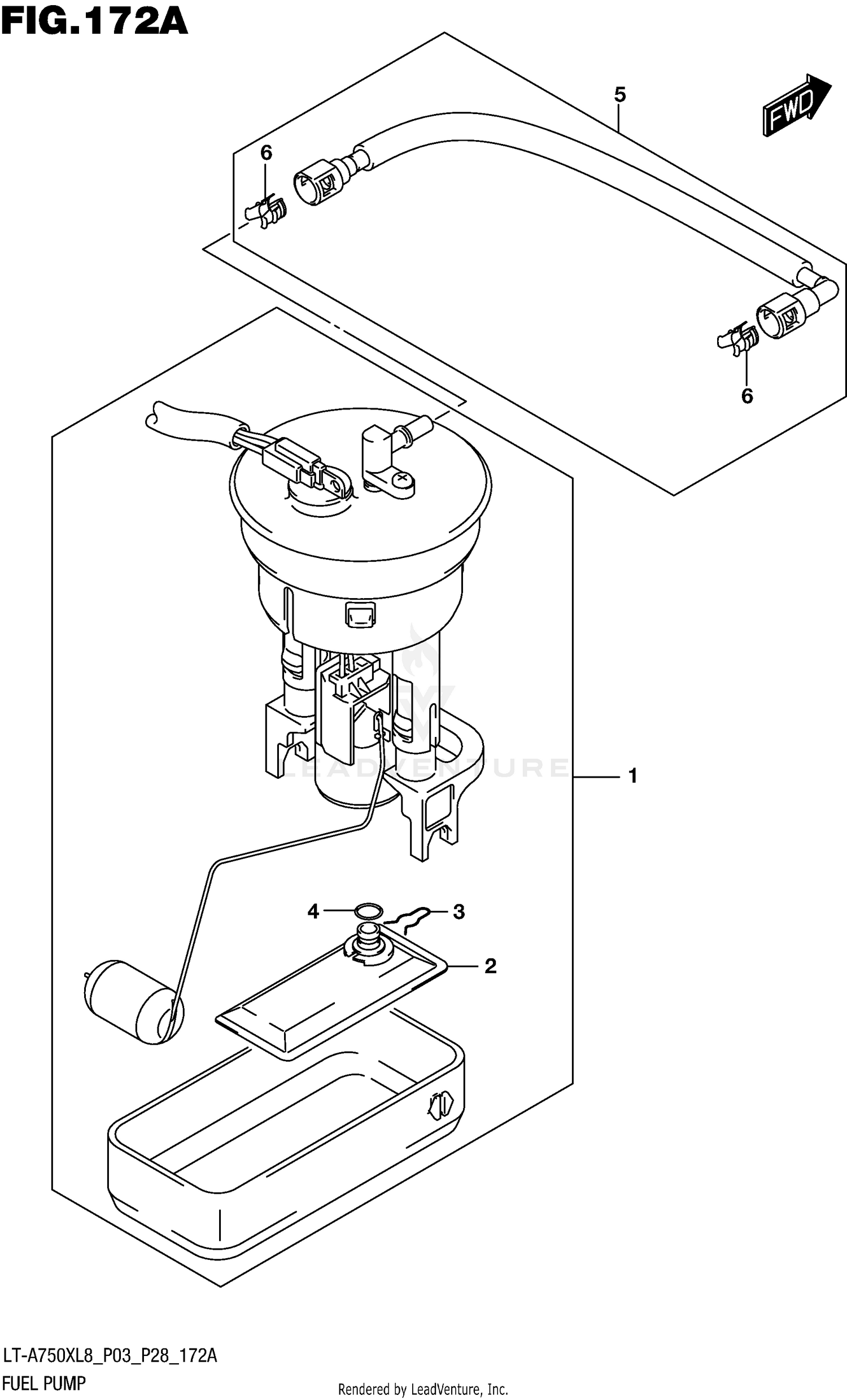

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,FUEL
15100-31G30
Superseded by 15100-31G31
|
$507.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FILTER SET, FUEL PUMP
15420-31G00
|
$89.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CLIP
15421-31G00
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O RING
15424-31G00
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE, FUEL
15810-31G02
Superseded by 15810-31G03
|
$47.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RETAINER
15815-35F00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
