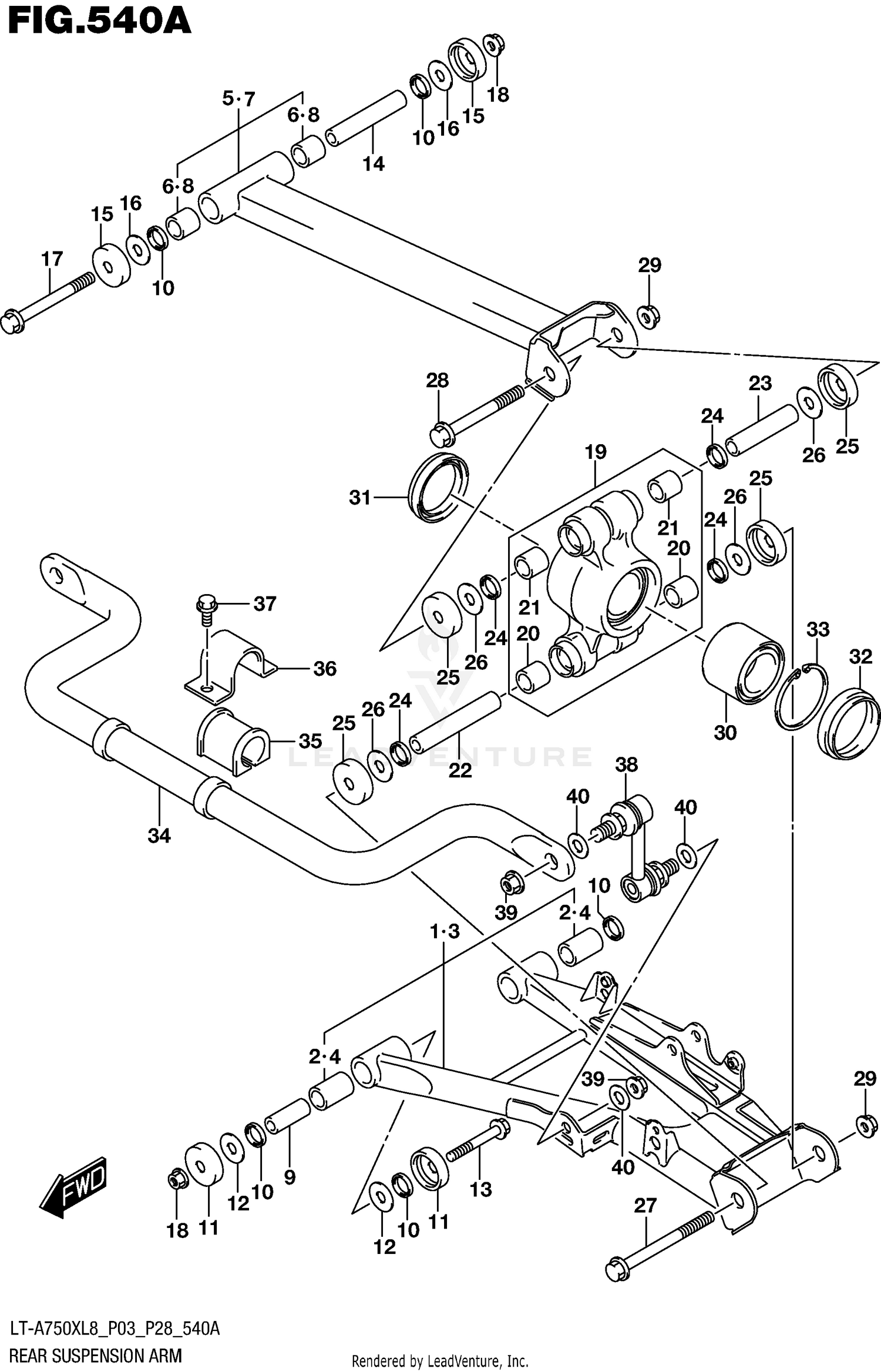

Rear Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM SET, RR SUSPENSION LOW RH
61510-31821
|
$375.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BUSH
51236-31G00
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM SET, RR SUSPENSION LOW LH
61520-31821
|
$382.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#5
ARM SET, RR SUSPENSION
61530-31830
|
$249.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#7
ARM SET, RR SUSPENSION
61540-31830
|
$244.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#9
SPACER, RR SPNSN ARM LOWER
61552-31G10
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
52454-45G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SEAL,KNUCKLE ARM (28.6X3
51255-18900
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08211-10281
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (10X70)
09103-10392
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, RR SPNSN ARM UPPER
61554-31G00
|
$26.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, RR SPNSN ARM UPPER DUST
51255-31G00
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-10281
|
$2.57 | ||
|
Unavailable |
|||
|
#17
BOLT (10X120)
09103-10388
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
KNUCKLE SET, RR SUSPENSION
61600-31830
|
$409.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#21
.BUSH, RR KNUCKLE UPPER
61551-31G10
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, RR SPNSN ARM UPPER
61554-31G00
|
$26.11 | ||
|
Unavailable |
|||
|
#23
SPACER, RR KNUCKLE UPPER
61553-31G10
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL
52454-45G00
|
$9.88 | ||
|
Unavailable |
|||
|
#25
DUST SEAL,KNUCKLE ARM (28.6X3
51255-18900
|
$5.78 | ||
|
Unavailable |
|||
|
#26
WASHER
08211-10281
|
$2.57 | ||
|
Unavailable |
|||
|
#27
BOLT (10X120)
09103-10388
|
$7.61 | ||
|
Unavailable |
|||
|
#28
BOLT (10X96)
09103-10387
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
|
#30
BEARING,RR HUB
43440-58J00
Superseded by 43440-58J01
|
$96.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, REAR HUB INNER DUST
61615-31G00
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL, REAR HUB OUTER DUST
61616-31G00
|
$24.01 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
08331-4162A
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAR, RR STABILIZER
61651-31G10
|
$243.84 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUSH, RR STABILIZER
61652-31G20
Superseded by 61652-34K00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE, RR STABILIZER
42415-66D00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT (8X16)
09103-08283
Superseded by 09103-08570
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
JOINT, RR STABILIZER
61660-31G20
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
09159-10223
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER (10.5X22X2.3)
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
