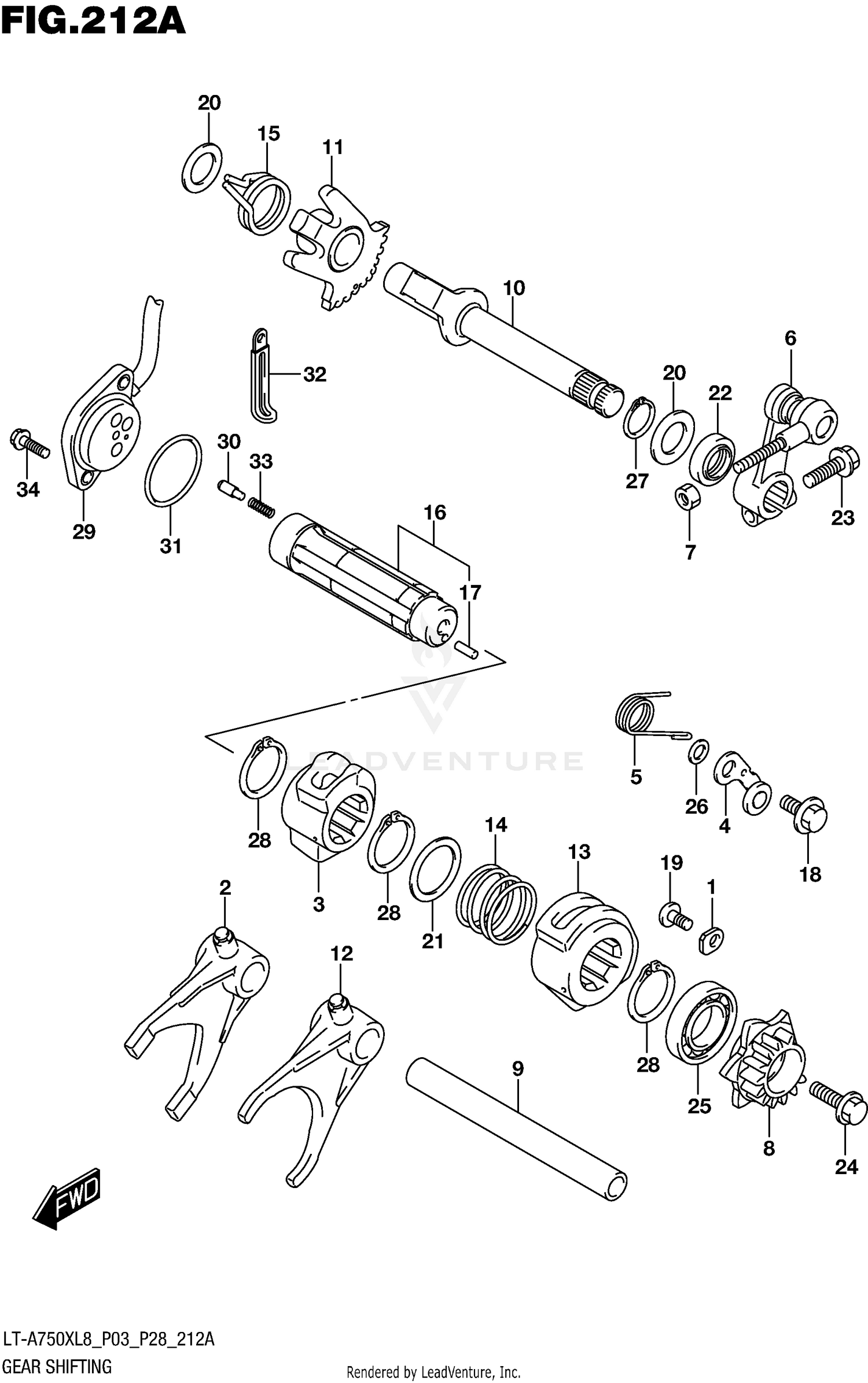

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RETAINER, SUB T/M SHIFT CAM
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, REVERSE GEAR SHIFT
25240-31G10
|
$95.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM, REVERSE GEAR SHIFT
25321-31G00
|
$92.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SHIFT CAM
25350-31G00
|
$11.03 | ||
|
Unavailable |
|||
|
#5
SPRING, SHIFT CAM STOPPER
25355-35F01
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, SELECT
25360-31G10
|
$90.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE, GR SHIFT CAM STOPPER
25381-31G00
|
$30.31 | ||
|
Unavailable |
|||
|
#8
PLATE, GR SHIFT CAM STOPPER
25381-31G00
|
$30.31 | ||
|
Unavailable |
|||
|
#9
SHAFT, SUB T/M GEAR SHIFT
25411-38A00
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,SUB T/M SHIFT NO.2
25510-31G00
Superseded by 25510-31G01
|
$101.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, SUB T/M SHIFT (NT:32)
25540-31G00
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
FORK, SUB T/M GEAR SHIFT
29510-31G10
|
$101.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAM, SUB T/M GEAR SHIFT
29611-31G00
|
$86.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, SUB T/M SHIFT FORK
29612-31G00
|
$3.71 | ||
|
Unavailable |
|||
|
#15
SPRING,SHIFT ARM RETURN
29613-31G00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, SUB T/M GEAR SHIFT
29620-31G01
|
$103.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X14.3)
09111-06041
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (6X12)
09125-06122
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM (14X24X1)
09181-14195
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (25X32X1)
09181-25139
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, SHIFT SHAFT (14X22X6)
09283-14005
Superseded by 09283-14006
|
$8.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-0620A
|
$2.45 | ||
|
Unavailable |
|||
|
#25
BEARING
08110-69040
|
$44.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
08211-06121
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
08331-3114A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP
08331-31259
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#29
BASE ASSY, GEAR SHIFT TERM
37720-31G00
|
$126.23 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN (5X15.5)
09209-05011
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
O RING (D:2.4,ID:35.5)
09280-35006
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#33
SPRING
09440-04010
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
07120-0516A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
