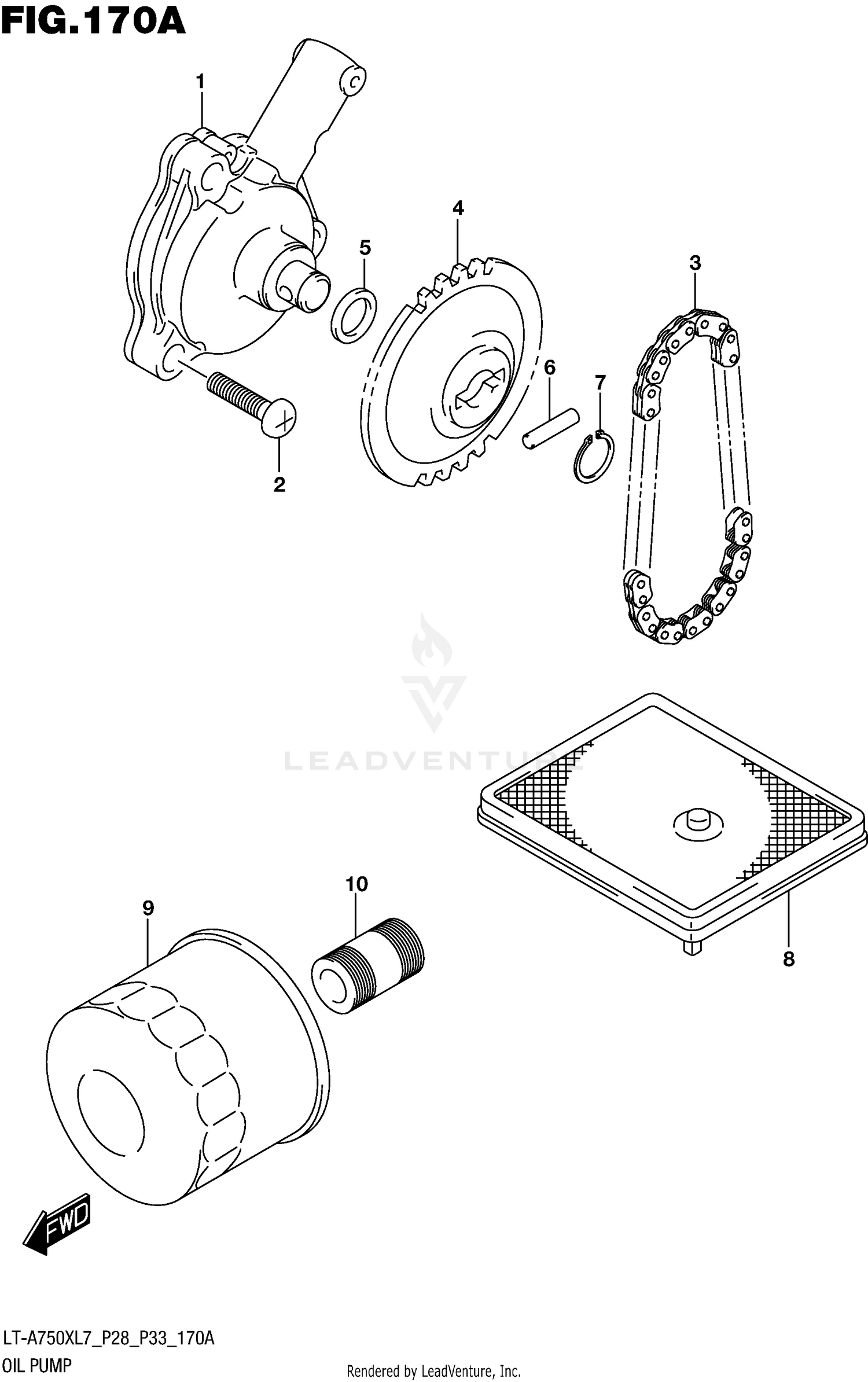

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENG OIL
16400-31G00
|
$196.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (6X25)
09125-06035
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, OIL PUMP DRIVE
16310-31G00
|
$42.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, OIL PUMP DRIVE
16310-31G00
|
$42.42 | ||
|
Unavailable |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN
16331-31G00
|
$75.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN
16331-31G00
|
$75.49 | ||
|
Unavailable |
|||
|
#5
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
STRAINER,ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER ASSY,ENGINE OIL
16510-07J00
Superseded by 16510-07J10
|
$16.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
UNION,OIL STAND
16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
