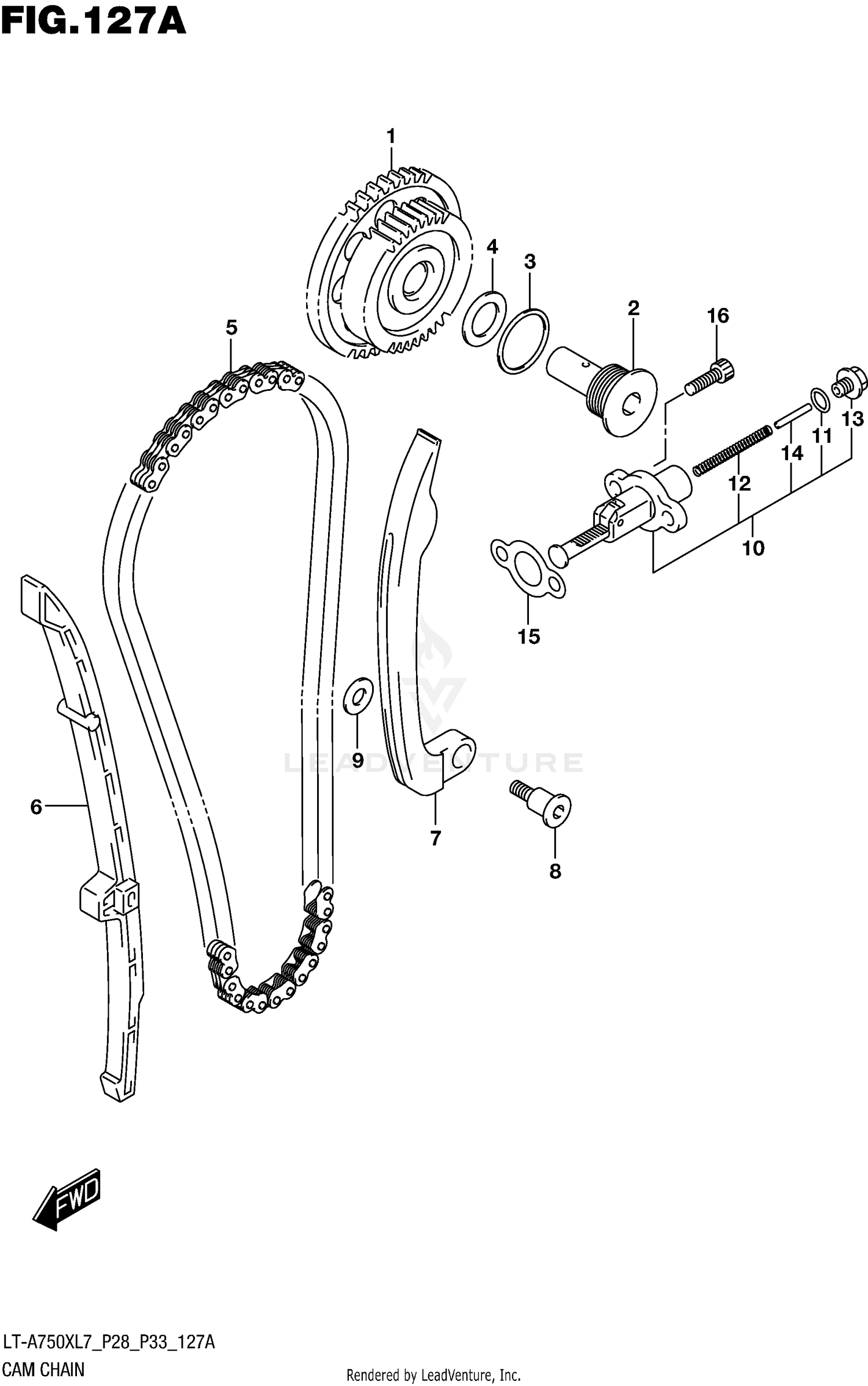

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, CAM CHAIN IDLER
12750-31G00
|
$189.56 | ||
|
Available to order. Add to View Price |
|||
|
#1
GEAR, CAM CHAIN IDLER
12750-31G00
|
$189.56 | ||
|
Unavailable |
|||
|
#2
SHAFT, CAM CHAIN IDLER GEAR
12755-02F01
|
$59.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET (26.5X30.5X1)
09168-26001
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
SHIM (T:0.9)
09181-15164
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
SHIM (T:1.0)
09181-15166
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4-3
SHIM (T:1.1)
09181-15172
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#4-4
SHIM (T:1.2)
09181-15176
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4-5
SHIM (T:1.3)
09181-15181
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4-6
SHIM (T:1.4)
09181-15182
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, CAMSHAFT DRIVE
12760-31G00
|
$157.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, CAMSHAFT DRIVE
12760-31G00
|
$157.11 | ||
|
Unavailable |
|||
|
#6
GUIDE, CAM CHAIN
12771-31G00
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
TENSIONER,CAM CHAIN
12811-31G00
Superseded by 12811-31G01
|
$60.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CAM CHAIN TENSIONER
12812-31G00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-08202
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
ADJUSTER ASSY, TENSIONER
12830-19B02
|
$128.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
12832-02A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SPRING
12833-19B00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PLUG
12834-19B00
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BAR
12835-19B00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
.GASKET,TENSIONER ADJUSTER
12837-19B10
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
