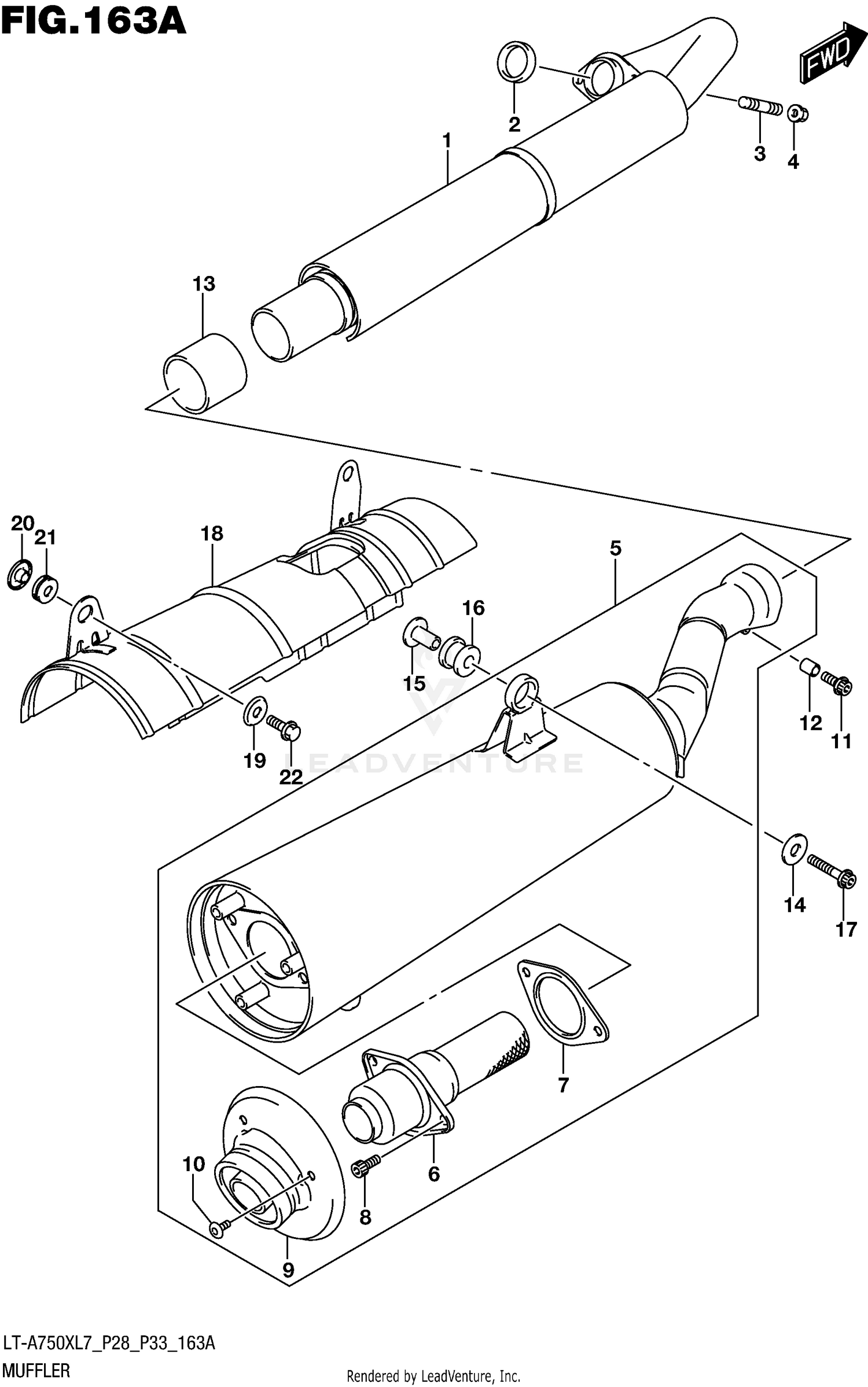

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE ASSY, EXH
14100-31G60
|
$354.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET, EXH PIPE
14181-31G00
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD BOLT
01421-0820A
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, MUFFLER
14320-31G70
|
$926.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
.ARRESTER
14850-31G70
|
$75.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET
14773-31G02
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
07130-0612B
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
.COVER, MUF TAIL
14790-31G60
|
$122.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW (6X12)
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-0835B
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, CLAMP
14458-45G01
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CONNECTOR, MUFFLER JOINT
14771-45G00
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (8.5X30X2.3)
09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (8.6X12X24.2)
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
09320-12071
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
07120-0840A
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, MUFFLER
14880-31G60
|
$178.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, MUF COVER
14184-07G00
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, MUF COVER
14185-07G00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION
09320-08069
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
