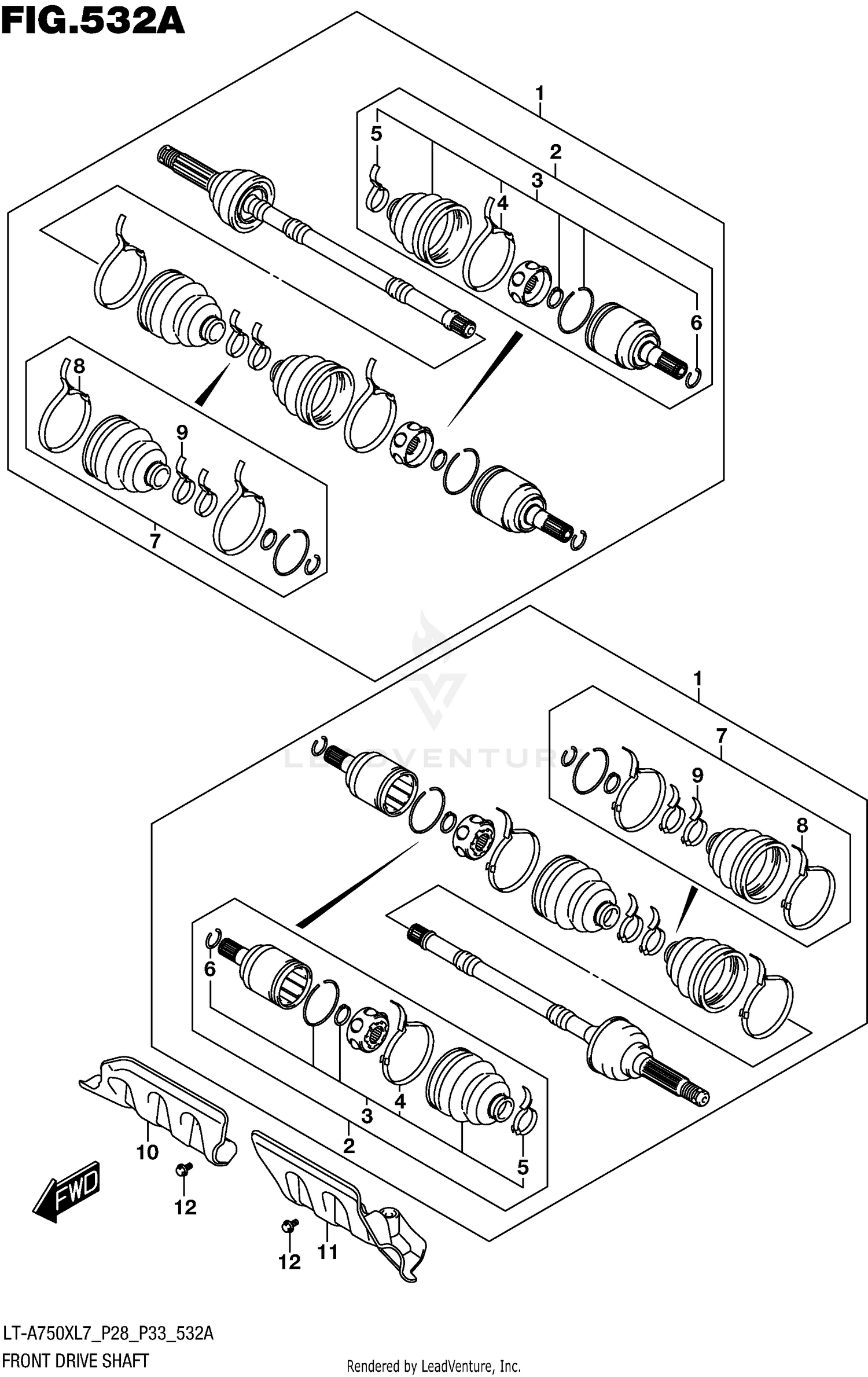

Front Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT ASSY, FRONT DRIVE
54901-31G41
|
$461.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
.JOINT SET
54933-31G13
|
$304.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT SET, INNER
54931-31G13
|
$87.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
...BAND, BOOT
44121-31G30
|
|||
|
Unavailable |
|||
|
#5
...BAND, BOOT
44124-31G00
|
|||
|
Unavailable |
|||
|
#6
...CIRCLIP
54925-19B01
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BOOT SET, OUTER
54930-31G14
|
$107.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
..BAND, BOOT
44121-31G00
|
|||
|
Unavailable |
|||
|
#9
..BAND, BOOT
44124-31G00
|
|||
|
Unavailable |
|||
|
#10
PROTECTOR,FR DRIVE SHAFT,R
54903-31G00
Superseded by 54903-31G01
|
$29.03 | ||
|
Unavailable |
|||
|
#11
PROTECTOR,FR DRIVE SHAFT,L
54904-31G00
Superseded by 54904-31G01
|
$29.43 | ||
|
Unavailable |
|||
|
#12
BOLT (6X12)
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
