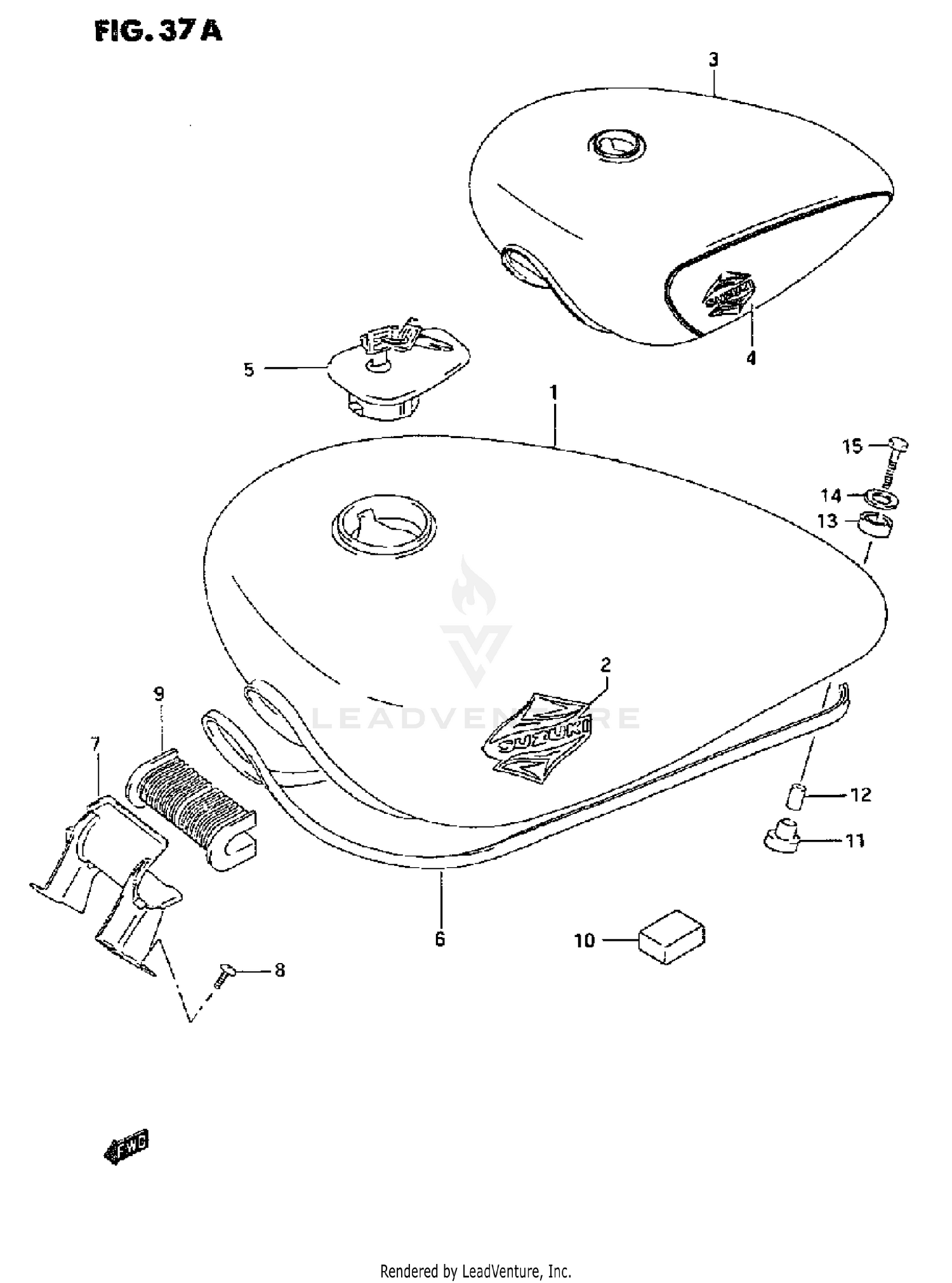

Fuel Tank (model S/t) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-39A80-20F
Superseded by 44100-39A91-20F
|
$708.30 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL
44100-39A80-33J
Superseded by 44100-39A91-33J
|
$739.28 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (MAROON)
44100-39AA0-20F
|
$636.02 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-39AA0-33J
|
$513.92 | ||
|
Unavailable |
|||
|
#2
EMBLEM
68111-38A21-C1J
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM
68111-38A21-C1K
|
$42.32 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-39AB0-2BX
Superseded by 44100-39AC1-2BX
|
$737.21 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-39AB0-1ZV
Superseded by 44100-39AC1-1ZV
|
$737.21 | ||
|
Unavailable |
|||
|
#3
TANK ASSY, FUEL (MAROON)
44100-39AD0-2BX
|
$536.27 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-39AD0-1ZV
Superseded by 44110-38A12-YD8
|
$637.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPE SET, FUEL TANK
68110-38B00-E6Y
|
$183.47 | ||
|
Unavailable |
|||
|
#4
TAPE SET, FUEL TANK
68110-38B00-E7A
|
$189.72 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38820
|
$121.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP SET,FUEL TA
44200-38850
Superseded by 44200-38852
|
$123.78 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38860
|
$128.40 | ||
|
Unavailable |
|||
|
#5
CAP SET, FUEL TANK
44200-38870
|
$59.95 | ||
|
Unavailable |
|||
|
#6
MOLDING (L:300)
68241-27A00
Superseded by 68241-04X50-00B
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FRONT (BLACK)
44250-38A01-20F
Superseded by 44250-38A01-019
|
$58.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FRONT (BLACK)
44250-38A01-019
|
$58.82 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-76163
Superseded by 02112-7616A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FRONT
44511-38A01
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, SIDE
44512-38B00
Superseded by 56314-48B10
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-06091
Superseded by 09180-06273
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, REAR UPPER
09320-14013
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, 6.5X24X1.6
09160-06072
Superseded by 09160-06501
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09128-06055
Superseded by 01500-0635A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
