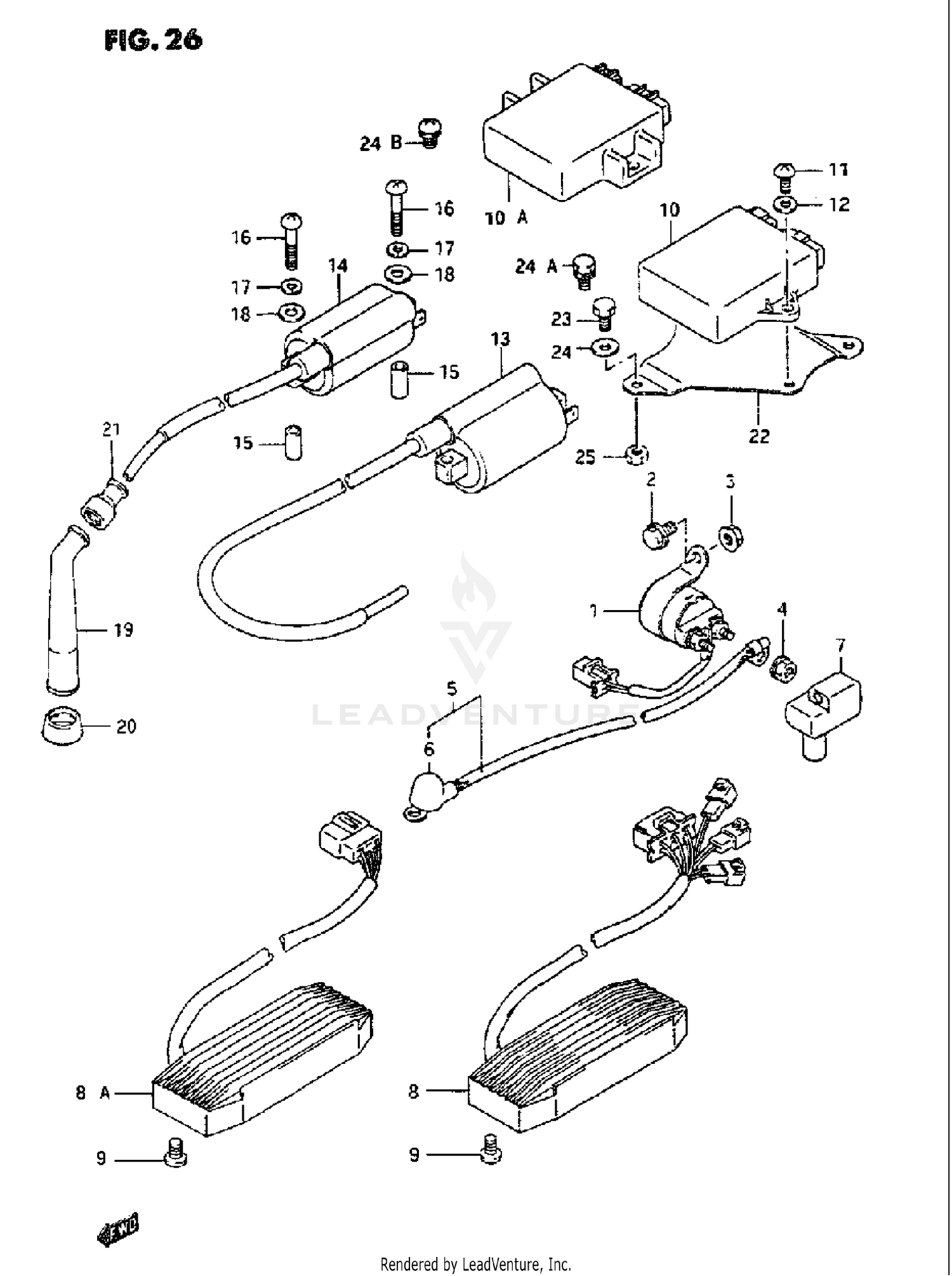

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-15501
|
$126.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01517-06106
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Unavailable |
|||
|
#3
NUT
08316-16066
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NUT
08361-35066
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEAD WIRE, STARTING MOTOR
33850-38A00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, STARTER MOTOR
31861-05300
Superseded by 31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CAP, STARTER MOTOR
31861-48B10
|
$7.40 | ||
|
Unavailable |
|||
|
#7
CAP, TERMINAL
31861-38A00
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CAP, STARTER MOTOR
31861-48B10
|
$7.40 | ||
|
Unavailable |
|||
|
#7
CAP, TERMINAL
31861-38A00
|
$8.89 | ||
|
Unavailable |
|||
|
#8
RECTIFIER, REGULATOR
32800-38A00
|
$297.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECTIFIER ASSY
32800-12E01
|
$356.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01107-06104
Superseded by 01500-0610B
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01500-06103
Superseded by 01500-0610B
|
$2.29 | ||
|
Unavailable |
|||
|
#10
IGNITER UNIT
32900-38A10
|
$857.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
IGNITER UNIT
32900-38A30
Superseded by 32900-38A31
|
$1,144.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-06126
Superseded by 02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
.WASHER
08322-01063
Superseded by 08322-0106B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
COIL, IGNITION (CORD L:300)
33410-38A10
Superseded by 33410-38A11
|
$175.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
COIL, IGNITION (CORD L:300)
33410-38A11
|
$175.37 | ||
|
Unavailable |
|||
|
#14
COIL, IGNITION (CORD L:520)
33420-38A10
Superseded by 33420-38A11
|
$175.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
COIL, IGNITION (CORD L:520)
33420-38A11
|
$175.37 | ||
|
Unavailable |
|||
|
#15
SPACER
09180-06144
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
09125-05053
|
$0.74 | ||
|
Unavailable |
|||
|
#17
LOCK WASHER
08321-21056
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-21056
Superseded by 08322-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#18
WASHER
08322-21056
Superseded by 08322-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#18
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#19
CAP, SPARK PLUG
33510-11410
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, SPARK PLUG
33541-24510
Superseded by 33541-47D00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,HIGH TENSION CORD
33542-98000
Superseded by 33542-38B00
|
$5.60 | ||
|
Unavailable |
|||
|
#22
PLATE, IGNITER FITTING
32910-38A10
|
$7.00 | ||
|
Unavailable |
|||
|
#23
BOLT
01107-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#24
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01570-06123
Superseded by 01570-0612A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02112-36123
Superseded by 02112-3612A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-26066
Superseded by 08316-1006B
|
$3.11 | ||
|
Unavailable |
|||
|
#25
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
