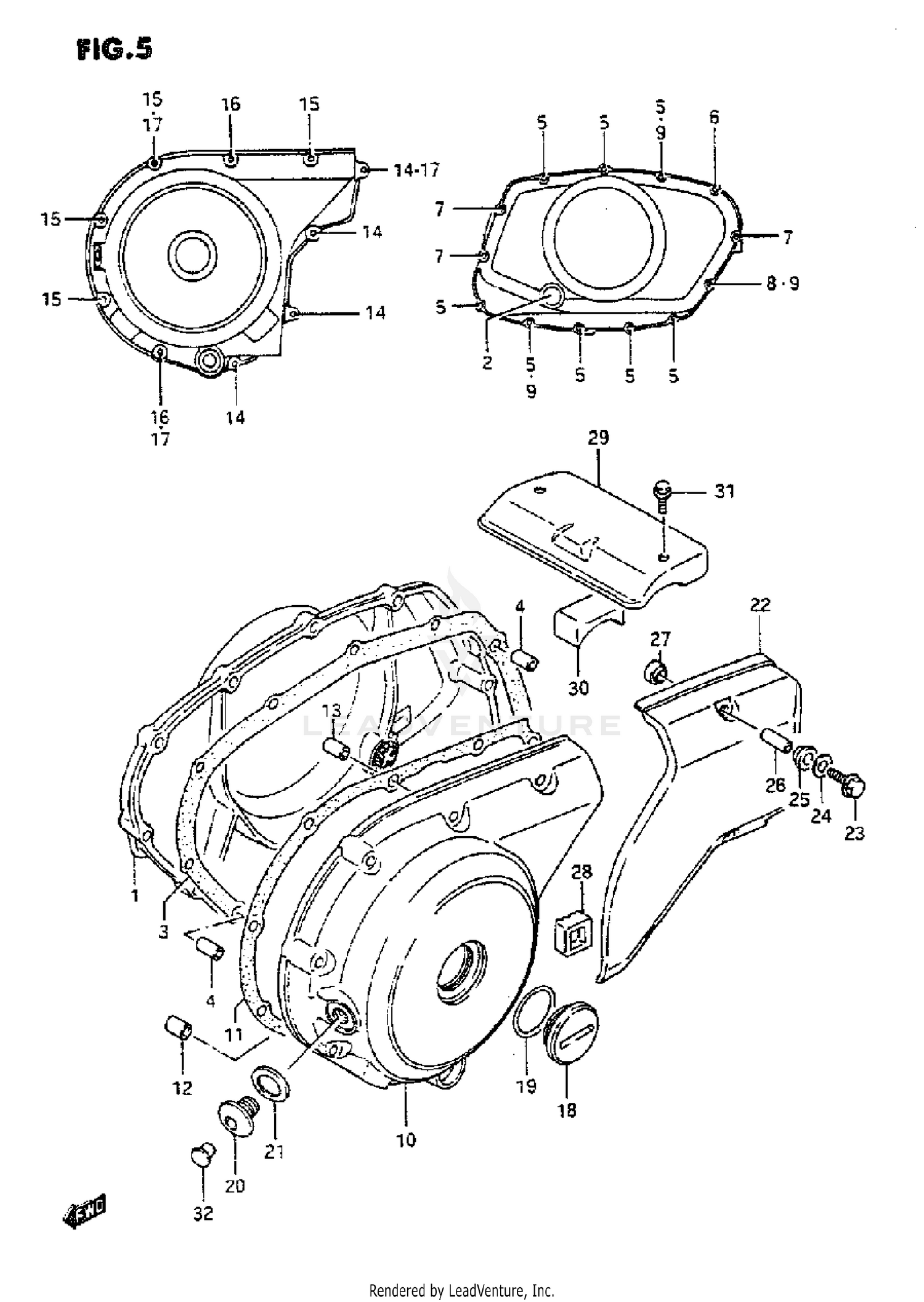

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-38A00
|
$413.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,CLUTCH COVER
11482-38A00-H17
Superseded by 11482-41F00
|
$22.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,CLUTCH COVER
11482-38A10
Superseded by 11482-41F00
|
$22.12 | ||
|
Unavailable |
|||
|
#4
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-06307
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-06357
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01547-06457
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT
01547-06607
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GASKET (5.8X11X1.2)
09168-06024
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, GENERATOR
11351-38A01
Superseded by 11351-38A02
|
$265.54 | ||
|
Unavailable |
|||
|
#10
COVER, GENERATOR
11351-38A02
|
$265.54 | ||
|
Unavailable |
|||
|
#10
COVER, GENERATOR
11351-45C20
|
$252.92 | ||
|
Unavailable |
|||
|
#11
GASKET,GENERATOR COVER
11483-38A00-H17
Superseded by 11483-41F00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN (11X20)
09206-11005
Superseded by 09206-11017
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
04211-09189
|
$2.05 | ||
|
Unavailable |
|||
|
#14
BOLT
01547-06307
|
$2.57 | ||
|
Unavailable |
|||
|
#15
BOLT
01547-06407
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-06507
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#17
GASKET (5.8X11X1.2)
09168-06024
|
$2.55 | ||
|
Unavailable |
|||
|
#18
PLUG, ACCESS
09259-36008
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, SHAFT
09248-14005
Superseded by 09248-14011
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET (14.1X18X1.5)
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#22
COVER, SECONDARY DRIVE
11361-38A50
|
$115.58 | ||
|
Unavailable |
|||
|
#23
BOLT
01547-06457
|
$2.89 | ||
|
Unavailable |
|||
|
#24
WASHER
09160-06097
Superseded by 09160-06125
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION, OUTER
09161-09006
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER, LICENSE LAMP
09180-06160
Superseded by 09180-06278
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#27
CUSHION, INNER
09161-09005
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, SECONDARY COVER
11369-38A00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, STARTER MOTOR
31210-38A00
Superseded by 31210-38A01
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, STARTER MOTOR
31210-38A01
|
$22.57 | ||
|
Unavailable |
|||
|
#30
DAMPER
31212-38A00
|
$7.52 | ||
|
Unavailable |
|||
|
#31
BOLT
01547-05087
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP
09250-08014
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
