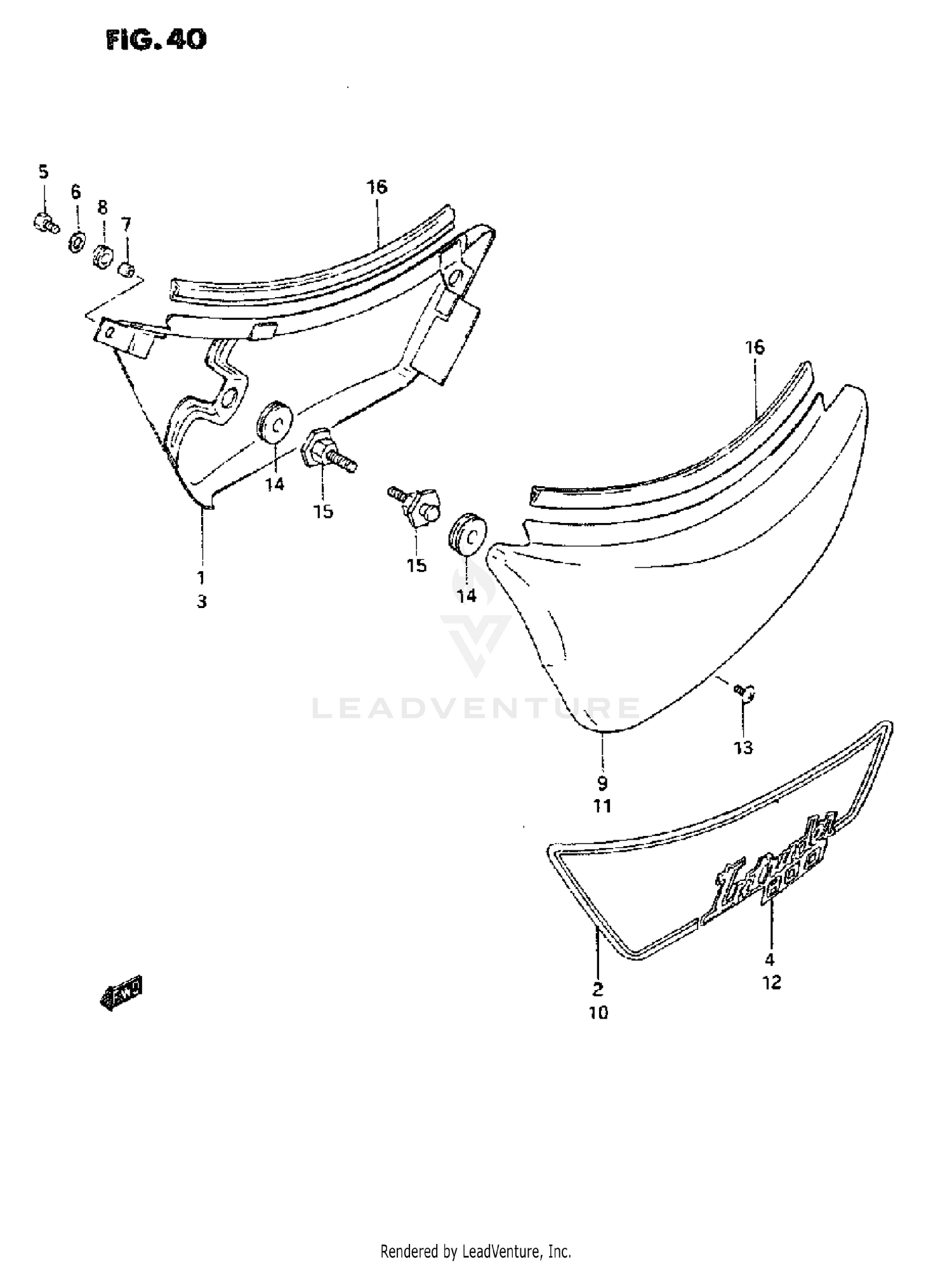

Frame Cover (model N/p/r) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLUE)
47100-39A00-03F
|
$136.50 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (RED)
47100-39A00-10X
Superseded by 47110-38A00-19A
|
$177.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE, RH
68135-39A01-M54
|
$58.84 | ||
|
Unavailable |
|||
|
#2
TAPE, RH
68135-39A01-M55
|
$58.84 | ||
|
Unavailable |
|||
|
#3
COVER, FRAME RH (RED)
47100-39A10-19A
|
$124.50 | ||
|
Unavailable |
|||
|
#3
COVER, FRAME RH (BLUE)
47100-39A10-0CG
|
$120.54 | ||
|
Unavailable |
|||
|
#3
COVER ASSY,FRAM
47100-39A10-33J
Superseded by 47110-38A00-13L
|
$343.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM
68131-39A00-M55
|
$33.82 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-39A00-A6S
|
$33.82 | ||
|
Unavailable |
|||
|
#4
EMBLEM
68131-39A00-C2P
|
$33.49 | ||
|
Unavailable |
|||
|
#5
BOLT, RH
01204-06167
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06084
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPACER
09180-06032
Superseded by 09180-06246
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION (8X18X5.8)
09320-06017
Superseded by 09320-08516
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER ASSY,FRAM
47200-39A00-03F
Superseded by 47210-38A00-13L
|
$276.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER ASSY,FRAM
47200-39A00-10X
Superseded by 47210-38A00-13L
|
$276.22 | ||
|
Unavailable |
|||
|
#10
TAPE, LH
68145-39A01-M54
|
$55.05 | ||
|
Unavailable |
|||
|
#10
EMBLEM
68145-39A01-M55
|
$58.84 | ||
|
Unavailable |
|||
|
#11
COVER, FRAME LH (RED)
47200-39A10-19A
|
$124.50 | ||
|
Unavailable |
|||
|
#11
COVER. FRAME LH (BLUE)
47200-39A10-0CG
|
$136.50 | ||
|
Unavailable |
|||
|
#11
COVER, FRAME LH (BLACK)
47200-39A10-33J
Superseded by 47210-38A00-33J
|
$570.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM
68131-39A00-M55
|
$33.82 | ||
|
Unavailable |
|||
|
#12
EMBLEM
68131-39A00-A6S
|
$33.82 | ||
|
Unavailable |
|||
|
#12
EMBLEM
68131-39A00-C2P
|
$33.49 | ||
|
Unavailable |
|||
|
#13
STOPPER, CL RLSE CAM SHAFT
02142-06104
Superseded by 02142-0610A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER, CL RLSE CAM SHAFT
02142-06103
Superseded by 02142-0610A
|
$1.73 | ||
|
Unavailable |
|||
|
#14
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOSS, FRAME COVER
47250-38A01
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
MOLDING (L:300)
47218-38A00
Superseded by 68241-04X50-300
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
