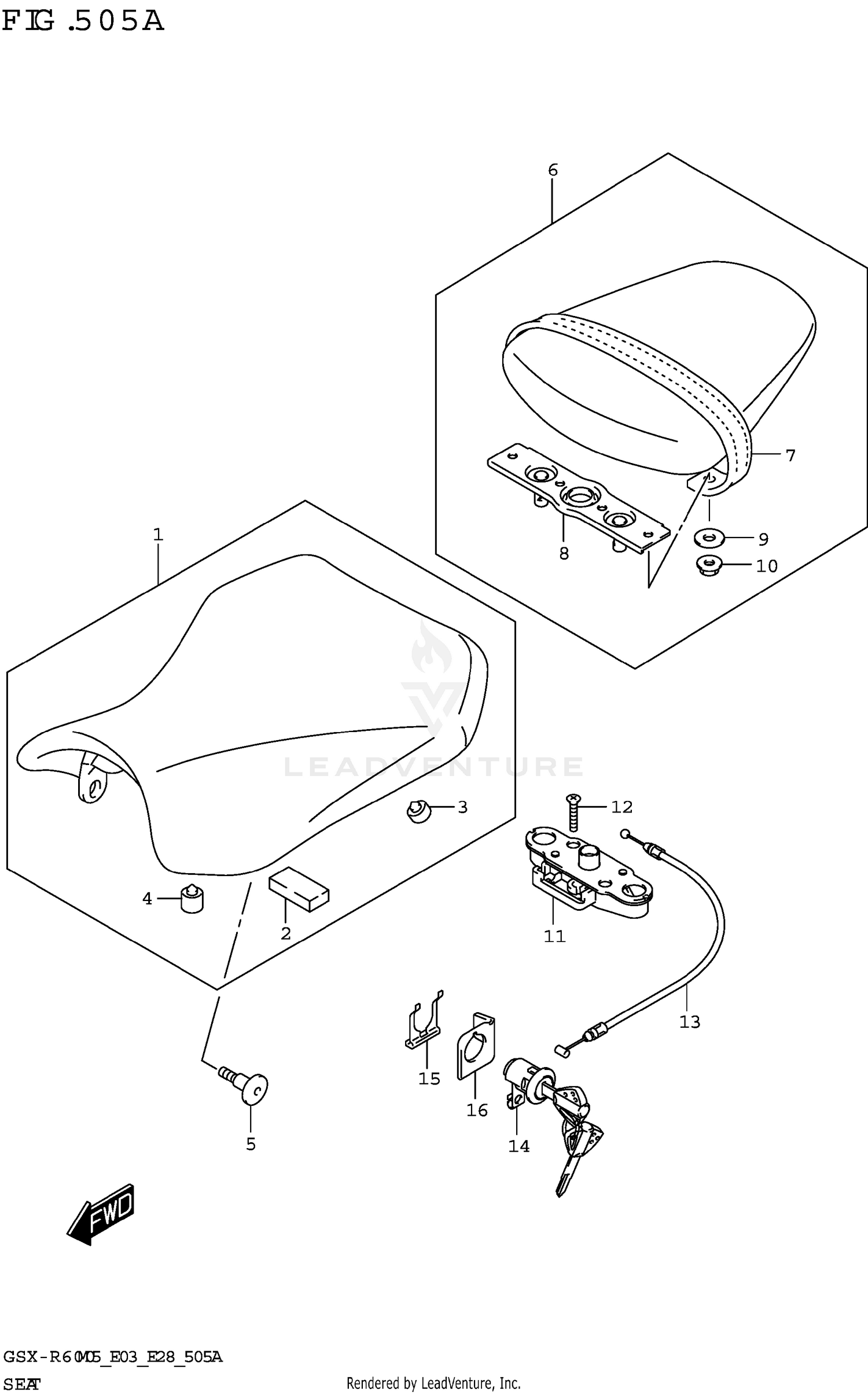

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-14J11-DW2
|
$256.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION
45149-37H00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION
09321-10011
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CUSHION
09321-10034
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (6X20)
09139-06193
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT ASSY,PILLION (BLACK)
45300-14J11-P3H
|
$214.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BAND ASSY,SEAT (BLACK)
45180-14J11-P3H
|
$28.90 | ||
|
Unavailable |
|||
|
#8
.STRIKER
45290-47H01
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRACKET,SEAT SUPPORT
45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02122-0630A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE,SEAT LOCK
45280-14J00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK SET,SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE,SEAT LOCK ASSY
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE,SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
