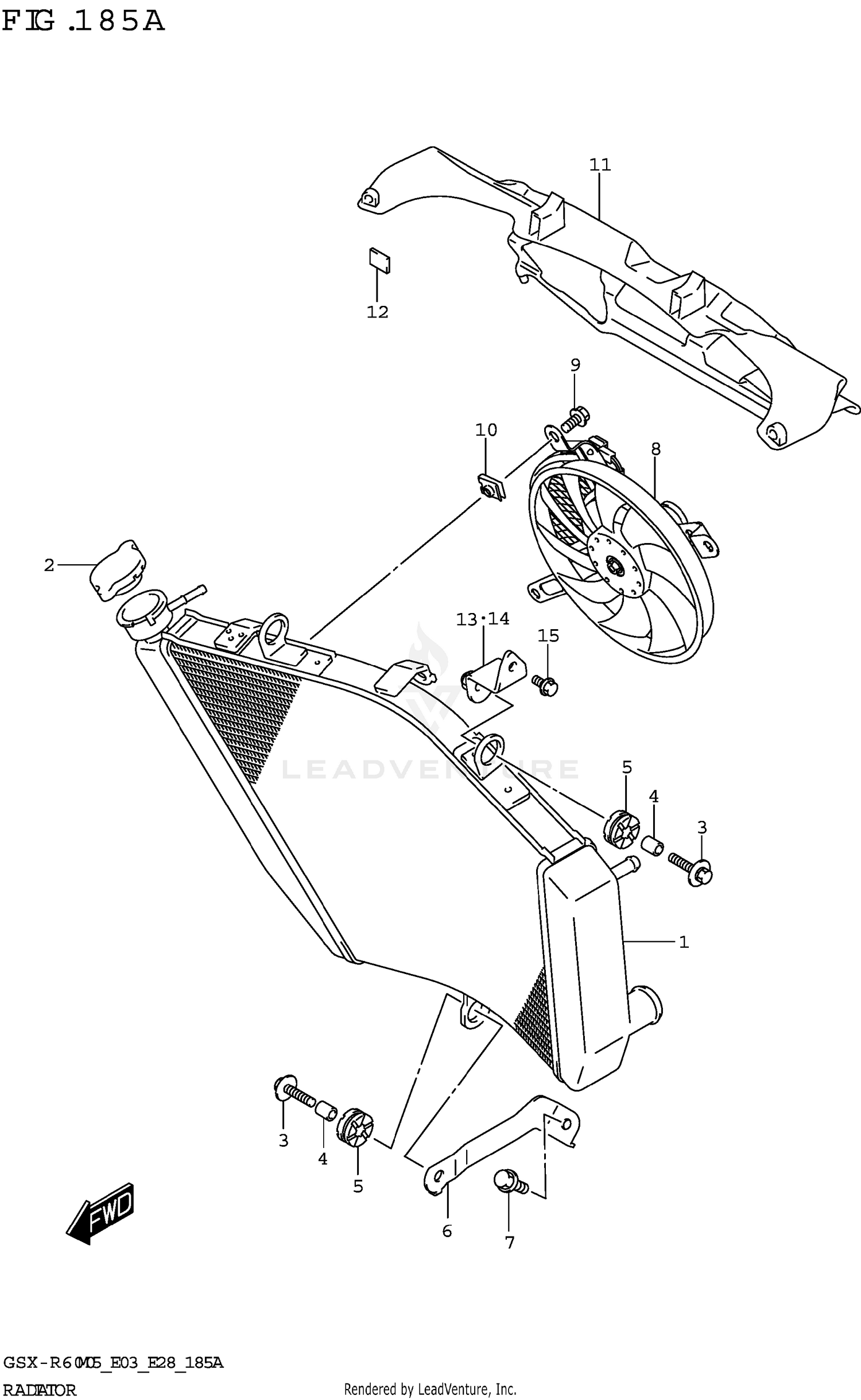

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY,WATER
17710-14J00
|
$1,209.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY, RADIATOR
17730-14G00
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,RADIATOR
17750-14J00
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FAN ASSY,RADIATOR
17800-14J01
|
$592.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT
17711-14G00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NUT,RADIATOR FAN
17802-14F00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIELD,RADIATOR HEAT
17771-14J00
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAD (20X25X2)
47512-10D00
Superseded by 61544-94500
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,RADIATOR UPPER RH
17741-14J00
|
$15.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,RADIATOR UPPER LH
17742-14J00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
