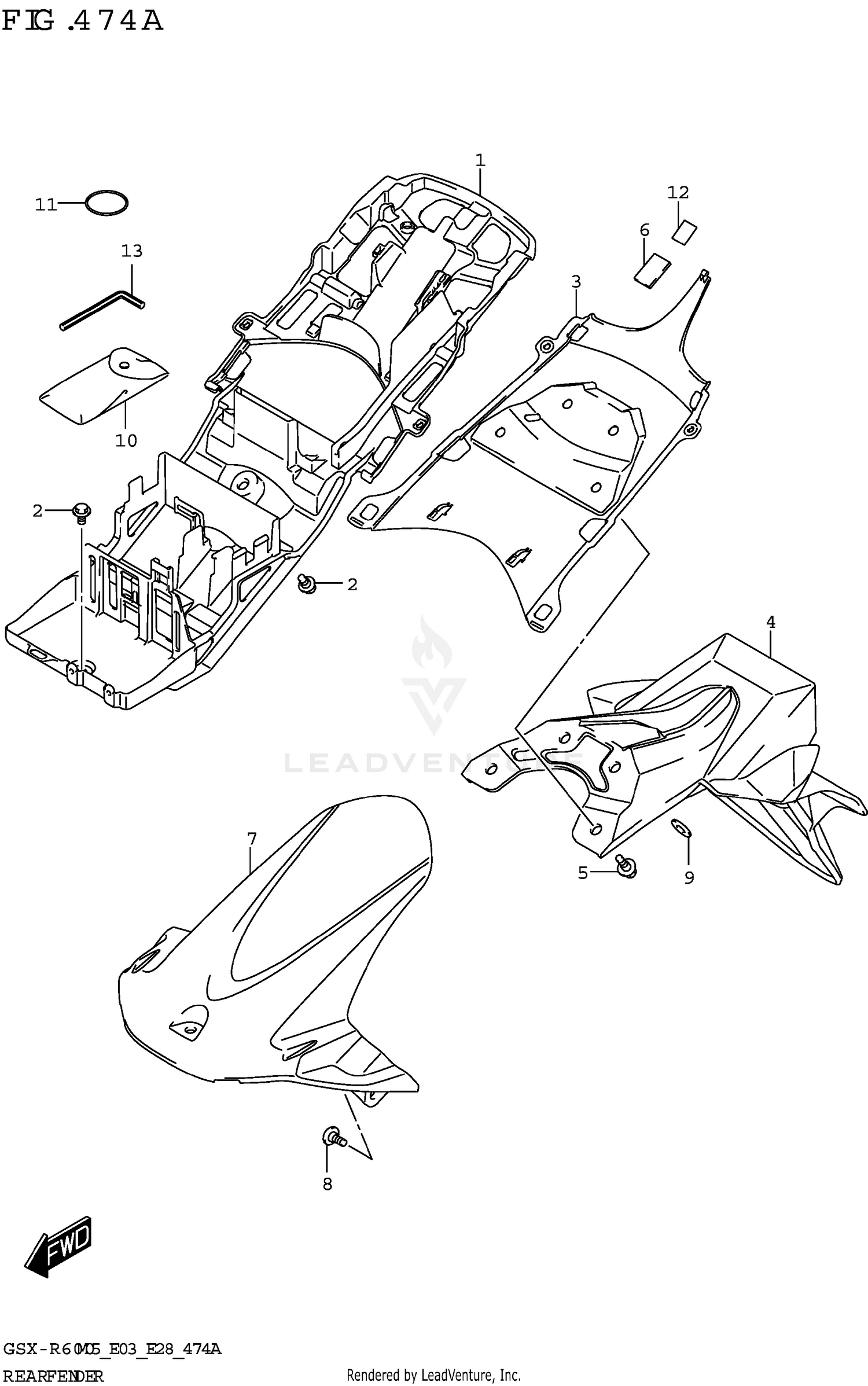

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR FRONT
63111-14J00
|
$153.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,RR FENDER FR
63112-14J10
|
$51.78 | ||
|
Unavailable |
|||
|
#4
FENDER,REAR REAR
63113-14J01
|
$128.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X17.8)
09111-06072
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,FUEL TANK ATTACHMENT
44556-33H00
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER,REAR LOWER
63114-14J01
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (6X16)
09139-06158
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
TOOL ASSY
09800-21100
|
$44.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:3.5,ID:56.5)
09280-57003
|
$5.54 | ||
|
Unavailable |
|||
|
#12
FASTENER,COWLING (20X15X0.8)
44572-37H00
|
$12.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPANNER,HEXAGON (5)
09816-00059
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
