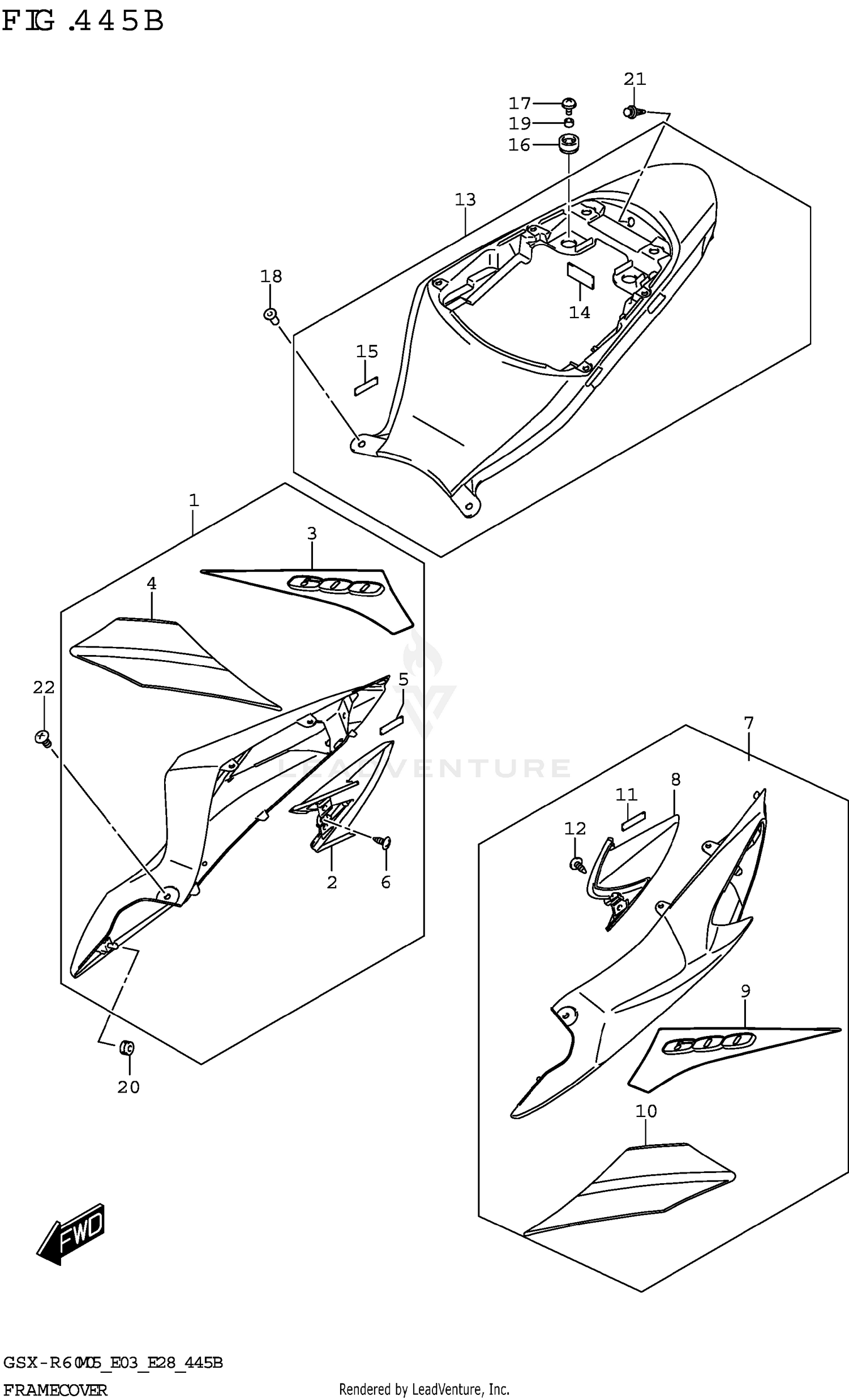

Frame Cover (gsx-r600z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY,FRAME,R (WHITE)
47100-14JB0-YUH
|
$107.17 | ||
|
Unavailable |
|||
|
#2
.COVER,FRAME REAR RH
47611-14J00
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TAPE,FRAME COVER,R
68135-14J70-CQ6
|
$24.73 | ||
|
Unavailable |
|||
|
#4
.TAPE,FRAME COVER,R
68135-14J90-CQV
|
$22.55 | ||
|
Unavailable |
|||
|
#5
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER ASSY,FRAME,L (WHITE)
47200-14JB0-YUH
|
$107.17 | ||
|
Unavailable |
|||
|
#8
.COVER,FRAME REAR LH
47621-14J00
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TAPE,FRAME COVER,L
68145-14J70-CQ6
|
$24.73 | ||
|
Unavailable |
|||
|
#10
.TAPE,FRAME COVER,L
68145-14J90-CQV
|
$22.55 | ||
|
Unavailable |
|||
|
#11
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Unavailable |
|||
|
#12
SCREW
03541-0512A
|
$1.70 | ||
|
Unavailable |
|||
|
#13
COVER ASSY,FRAME CTR
47300-14J10
|
$124.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (10X24X1)
48128-14FA0
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Unavailable |
|||
|
#16
.CUSHION (10X24X13)
47312-37H10
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X16)
09136-06056
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (M5)
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPACER (6.5X10X7)
09180-06283
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-06504
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW
02142-1520B
|
$2.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
