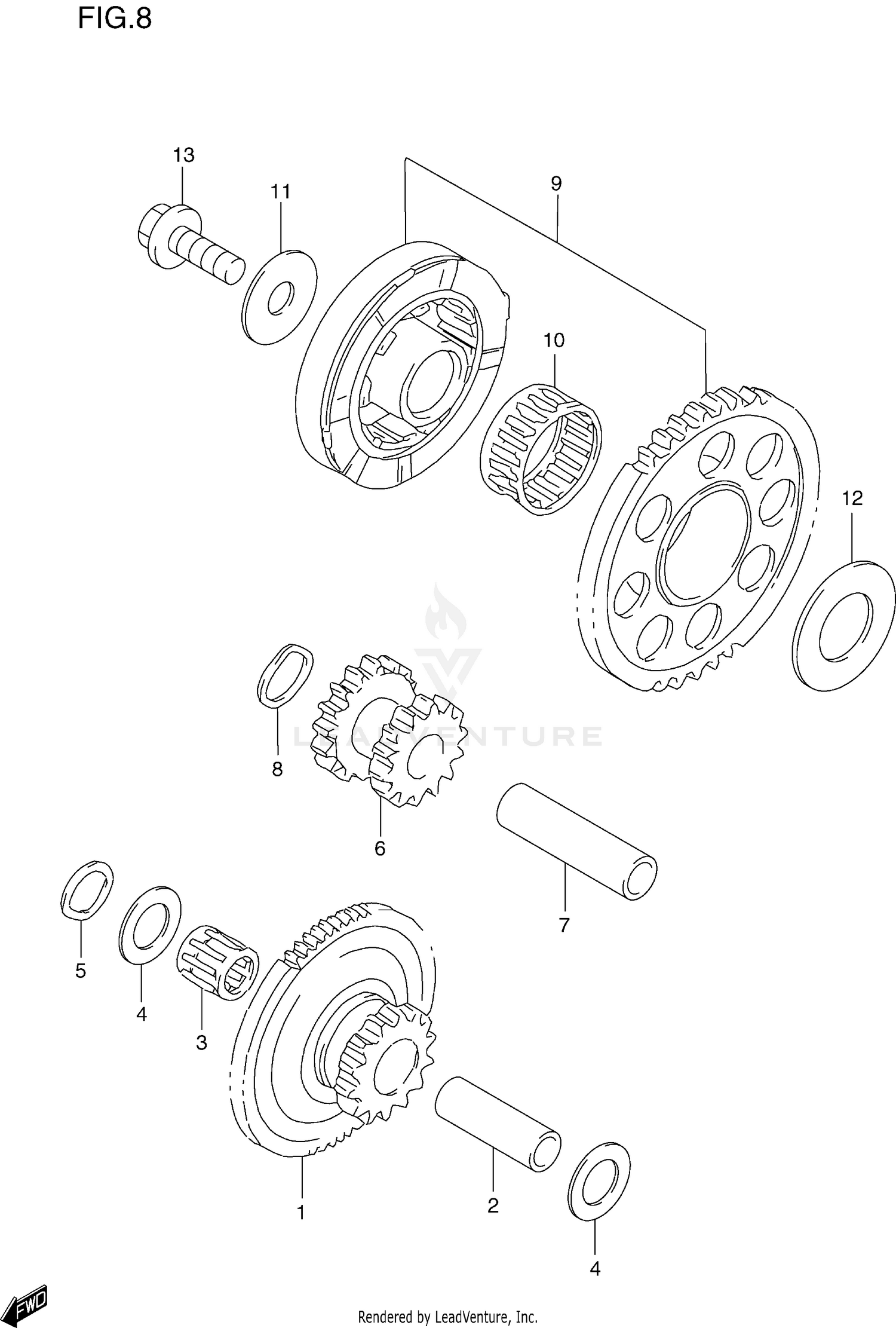

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, STARTER IDLE NO.1 (NT:14/70)
12611-33E02
|
$74.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
12151-09204
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
09263-12023
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
08211-12241
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (37.3X52X1)
09164-12021
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, STARTER IDLE NO.2 (NT:16/14)
12612-33E02
|
$45.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
12151-05200
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09164-14008
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH SET, STARTER
12600-33860
Superseded by 12600-24850
|
$428.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH SET, STARTER
12600-33871
Superseded by 12600-24850
|
$428.26 | ||
|
Unavailable |
|||
|
#10
BEARING
09263-28029-0B0
|
$26.17 | ||
|
Unavailable |
|||
|
#10
BEARING (28X34X16.8)
09263-28031
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08211-10305
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08211-20403
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
