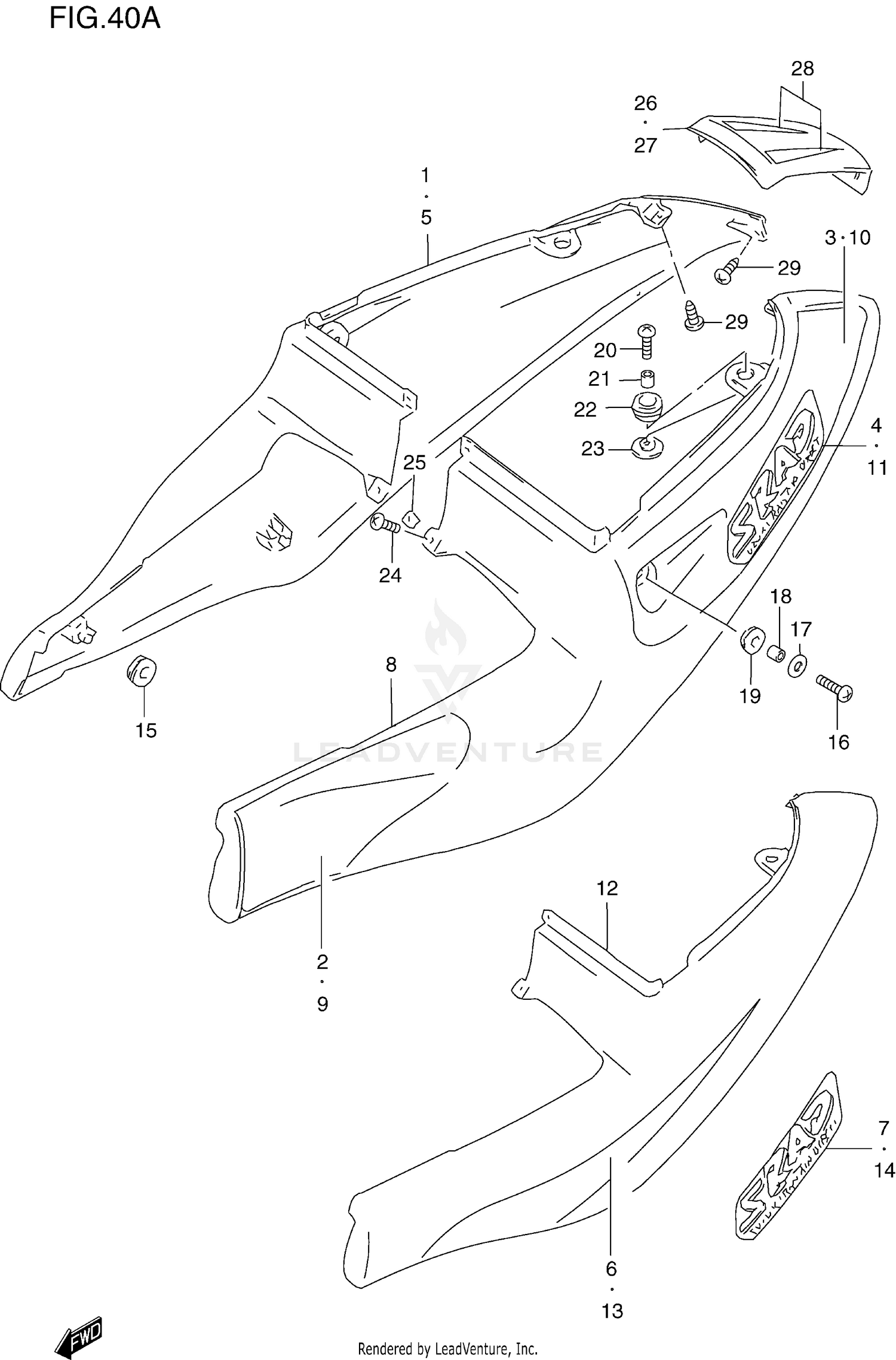

Frame Cover (model W) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLACK)
47110-34E30-1PX
|
$340.16 | ||
|
Unavailable |
|||
|
#2
TAPE, COVER RH (ORANGE)
68135-34E30-Y0W
|
$27.41 | ||
|
Unavailable |
|||
|
#3
TAPE, COVER RH (ORANGE)
68135-34E40-Y0W
|
$39.30 | ||
|
Unavailable |
|||
|
#4
EMBLEM, SRAD
68131-33E30-K4F
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, FRAME RH (WHITE)
47110-34E20-0JW
|
$297.52 | ||
|
Unavailable |
|||
|
#6
TAPE, FRAME COVER RH
68135-34E20-Y3P
|
$24.42 | ||
|
Unavailable |
|||
|
#7
EMBLEM, SRAD
68131-33E30-F3S
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, FRAME LH (BLACK)
47210-34E30-1PX
|
$376.98 | ||
|
Unavailable |
|||
|
#9
TAPE, COVER LH NS.1 (ORANGE)
68145-34E30-Y0W
|
$27.41 | ||
|
Unavailable |
|||
|
#10
TAPE, COVER LH (ORANGE)
68145-34E40-Y0W
|
$44.80 | ||
|
Unavailable |
|||
|
#11
EMBLEM, SARD
68131-33E30-K4F
|
$20.32 | ||
|
Unavailable |
|||
|
#12
COVER, FRAME LH (WHITE)
47210-34E20-0JW
|
$331.33 | ||
|
Unavailable |
|||
|
#13
TAPE, FRAME COVER LH
68145-34E20-Y3P
|
$21.31 | ||
|
Unavailable |
|||
|
#14
EMBLEM, SRAD
68131-33E30-F3S
|
$20.32 | ||
|
Unavailable |
|||
|
#15
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SIDE
09139-06071
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
09180-06258
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
94433-26B00
Superseded by 94433-26B01
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, UPPER
09136-06082
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUSHION
45149-04A00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION, LOWER
45326-17C00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
03241-15103
Superseded by 03241-1510B
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FRAME CENTER (BLACK)
47311-33E00-019
|
$58.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, FRAME CENTER (WHITE)
47310-33E20-0JW
|
$73.17 | ||
|
Unavailable |
|||
|
#28
TAPE SET, CENTER COVER (BLUE)
68165-33E10-1LF
|
$17.82 | ||
|
Unavailable |
|||
|
#29
SCREW
03541-15163
Superseded by 03541-1516A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
