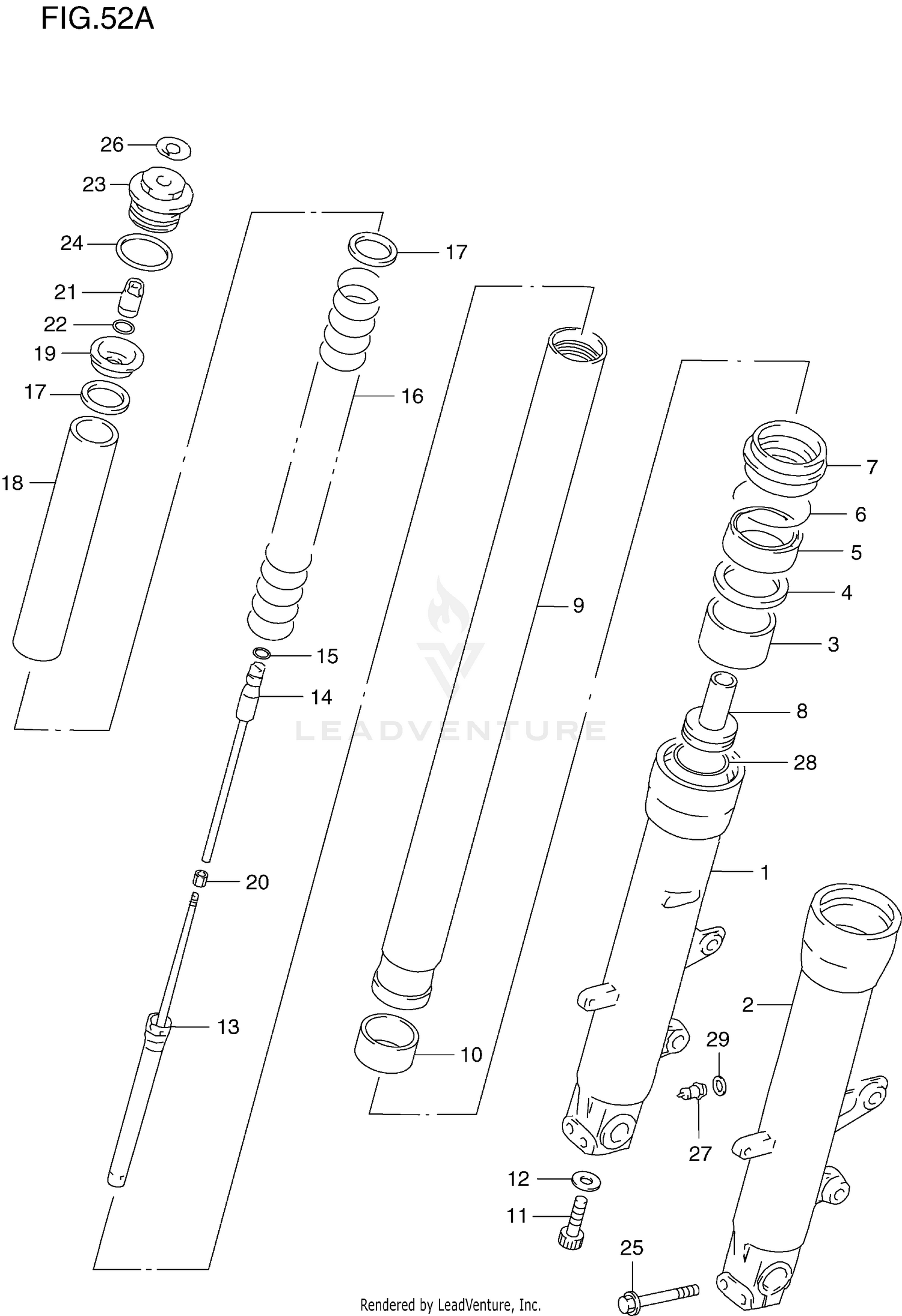

Front Damper (model W/x/y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, FRONT FORK RH
51103-34E20
|
$1,258.75 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, FRONT FORK LH
51104-34E20
|
$1,258.75 | ||
|
Unavailable |
|||
|
#1
TUBE, OUTER RH
51130-34E20
|
$629.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER LH
51140-34E20
|
$341.43 | ||
|
Unavailable |
|||
|
#3
BUSH, GUIDE
51152-34E00
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, SEAL
51158-27C40
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, OIL
51153-34E00
|
$33.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
..RING,OIL SEAL STOPPER
51156-27C40
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
51173-28E40
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIECE, OIL LOCK
51195-34E20
|
$45.87 | ||
|
Unavailable |
|||
|
#9
TUBE, INNER
51110-34E20
|
$401.30 | ||
|
Unavailable |
|||
|
#10
BUSH, SLIDE
51121-34E00
|
$29.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
51147-17C00
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ROD, FRONT FORK
52110-34E20
|
$273.15 | ||
|
Unavailable |
|||
|
#14
ROD, ADJUST
52111-34E00
|
$27.06 | ||
|
Unavailable |
|||
|
#15
O RING
09280-03002
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, FRONT
51171-34E20
|
$64.18 | ||
|
Unavailable |
|||
|
#17
JOINT, SPRING
51172-29EA0
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, SPRING
51176-34E00
|
$13.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT, SPRING
51172-17C00
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
.NUT
51827-27E00
|
$7.42 | ||
|
Unavailable |
|||
|
#21
ADJUSTER, SPRING
51185-34E00
|
$55.17 | ||
|
Unavailable |
|||
|
#22
O RING
09280-14011
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FORK
51189-34E00
|
$66.62 | ||
|
Unavailable |
|||
|
#24
O RING
51117-29EA0
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01550-08457
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL S-H
51149-34E00
|
$3.71 | ||
|
Unavailable |
|||
|
#27
PIECE, ADJUST
51830-33E00
|
$55.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING, OIL LOCK PIECE
51117-34E20
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
LABEL, LOWER
51169-42E00
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
