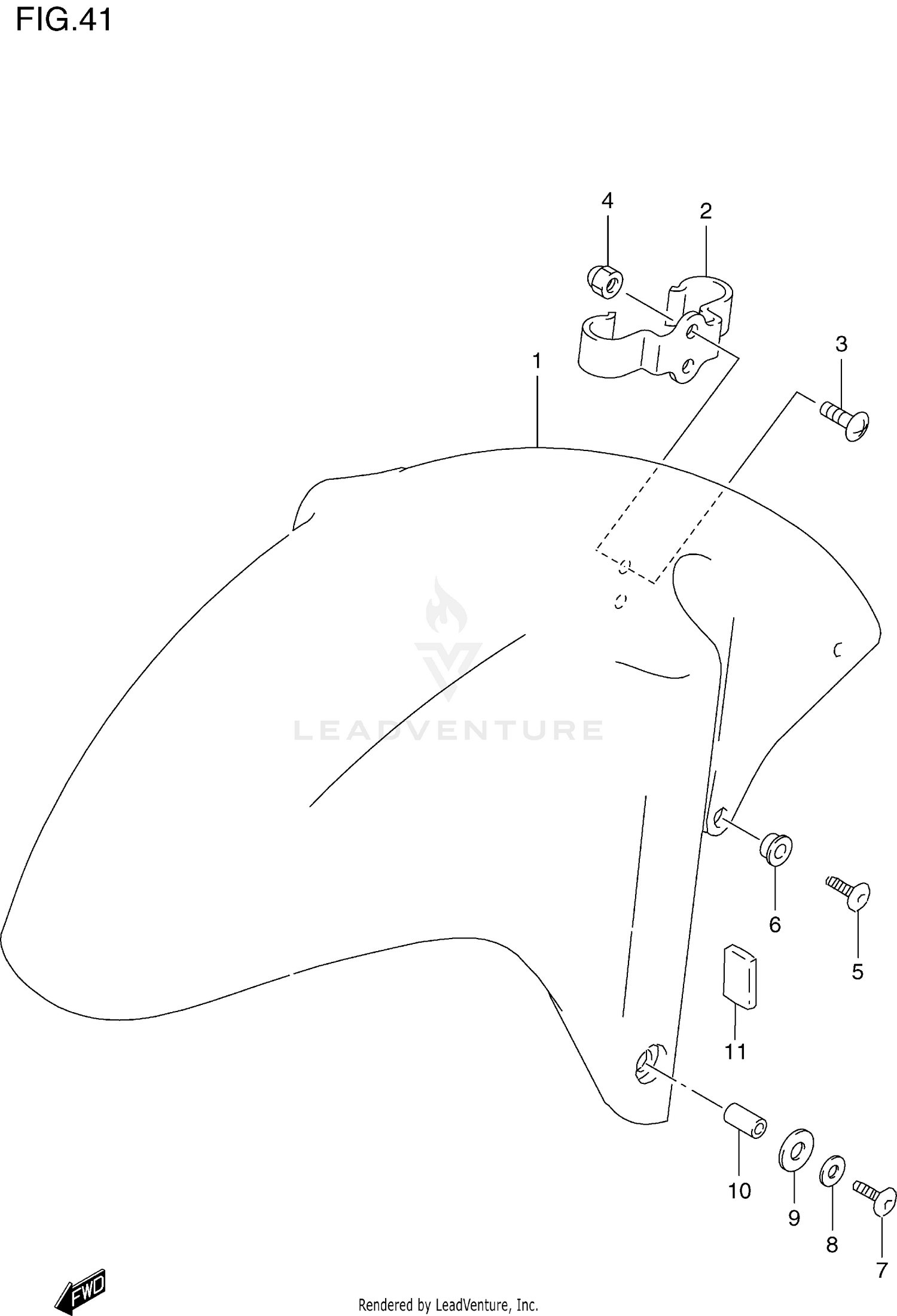

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
53110-33E00-17U
Superseded by 53110-33E50-17U
|
$231.48 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
53110-33E00-1LF
Superseded by 53110-33E50-1LF
|
$231.48 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
53110-33E40-019
Superseded by 53110-33E40-33J
|
$240.74 | ||
|
Unavailable |
|||
|
#1
FENDER, FRONT
53110-33E60
|
$245.66 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (BLACK)
53110-33E40-Y7L
|
$240.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (YELLOW)
53110-33E40-Y9H
|
$328.97 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (BLUE)
53110-33E40-Y7E
|
$245.66 | ||
|
Unavailable |
|||
|
#2
CLAMP, BRAKE HOSE
53117-33E10
|
$6.73 | ||
|
Unavailable |
|||
|
#3
SCREW
02142-05103
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08313-10053
Superseded by 08313-1005B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, REAR
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09161-06021
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FRONT
09139-06030
|
$4.64 | ||
|
Unavailable |
|||
|
#8
WASHER, CLUTCH RLSE NO.2
09160-06079
Superseded by 09160-06052
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,FR FENDER,FRONT NO.2
53121-33E00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-06258
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION (80X20X10)
33652-41520
Superseded by 33652-01D10
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
