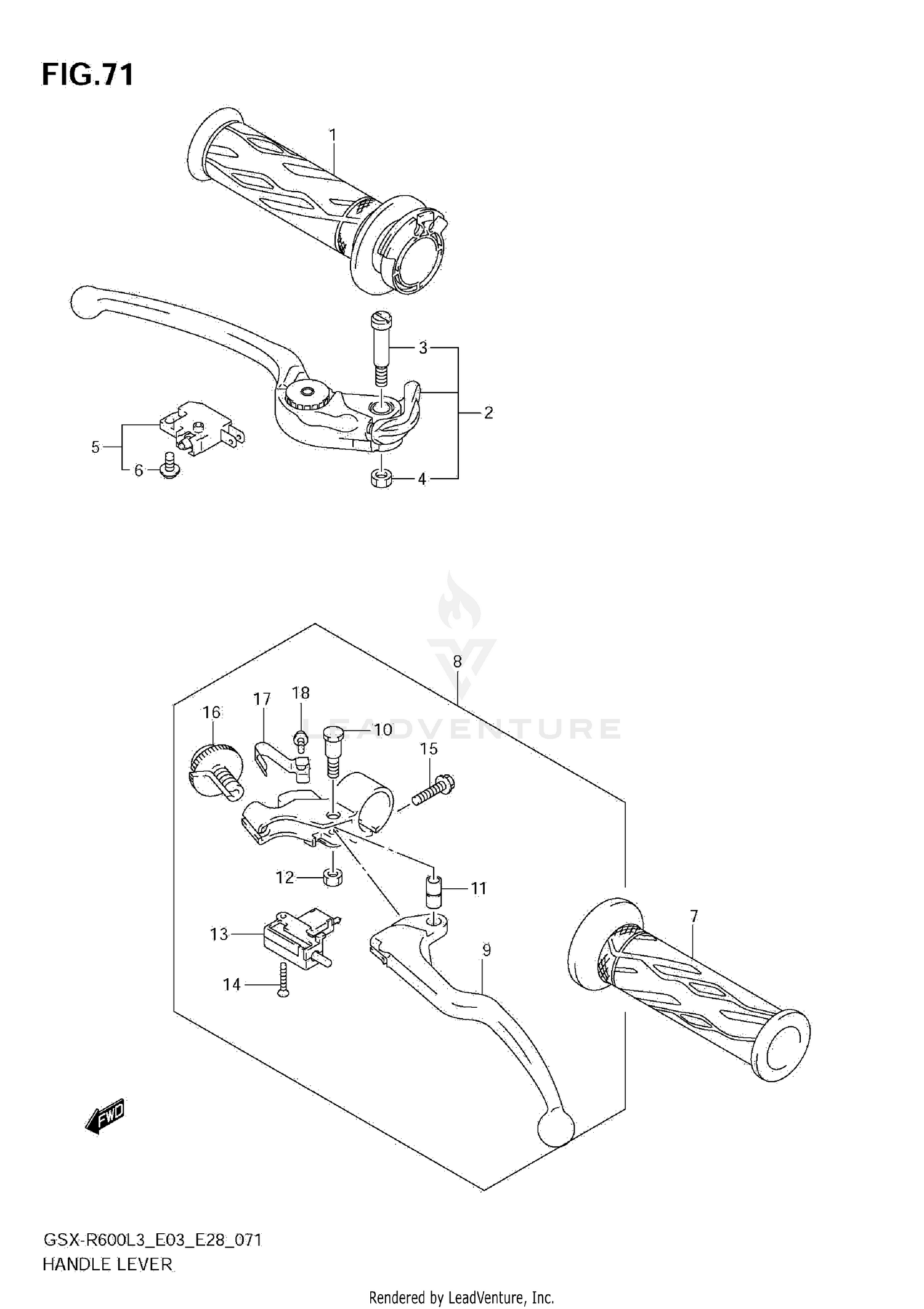

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP,THROTTLE
57110-21H01
Superseded by 57110-21H02
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, BLAKE
57300-29G30
|
$84.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, PIVOT
57431-29G00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-14J01
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP LH
57211-21H00
Superseded by 57211-21H01
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER ASSY,CLUT
57500-41G20
Superseded by 57500-41G21
|
$116.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER, CLUTCH
57621-41G00
|
$45.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
57431-41G00
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
57532-41G00
|
$25.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY, CLUTCH
57560-41G20
|
$29.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
57562-41G20
Superseded by 57562-41G21
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
.BOLT
01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CABLE ADJUSTER
57641-33E21
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
57644-33E00
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, SPRING
57642-33E00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
