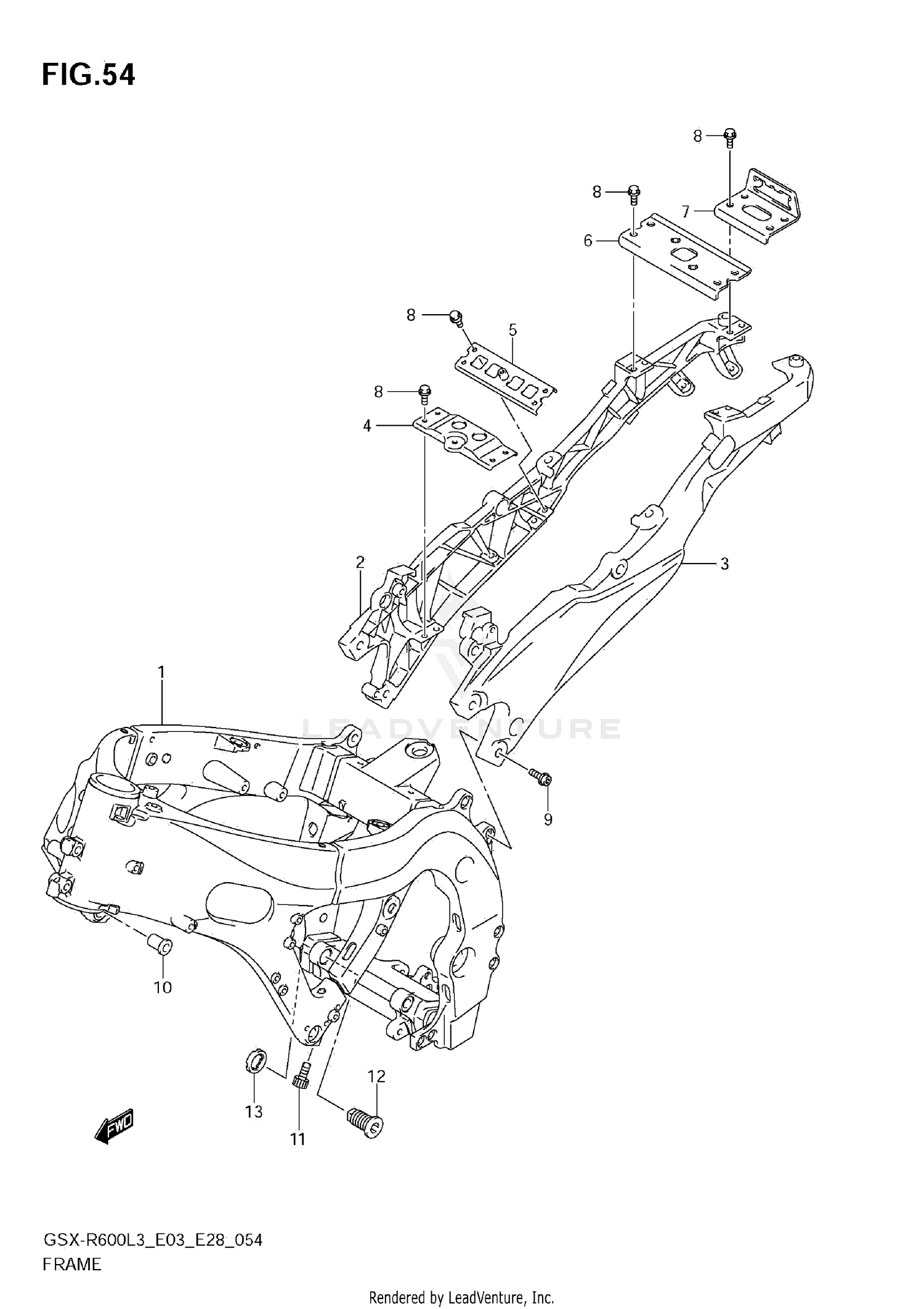

Frame (gsx-r600l3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-14J00-YAP
Superseded by 41100-15J00-YAP
|
$7,922.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL,SEAT RH (BLACK)
41211-14J00-YUG
|
$348.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL,SEAT LH (BLACK)
41221-14J00-YUG
|
$356.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRIDGE,SEAT RAIL FRONT
41770-01H00
|
$69.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRIDGE,SEAT RAIL LOWER
42740-37H00
|
$47.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRIDGE,SEAT RAIL UPPER
42730-14J00
|
$47.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRIDGE,SEAT RAIL REAR
42751-14J00
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X12)
09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,SEAT RAIL
41233-18G20
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, ENGINE MOUNT
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X32)
09106-08185
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, ADJUST
41921-35F00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, ADJUST
41922-18G00
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
