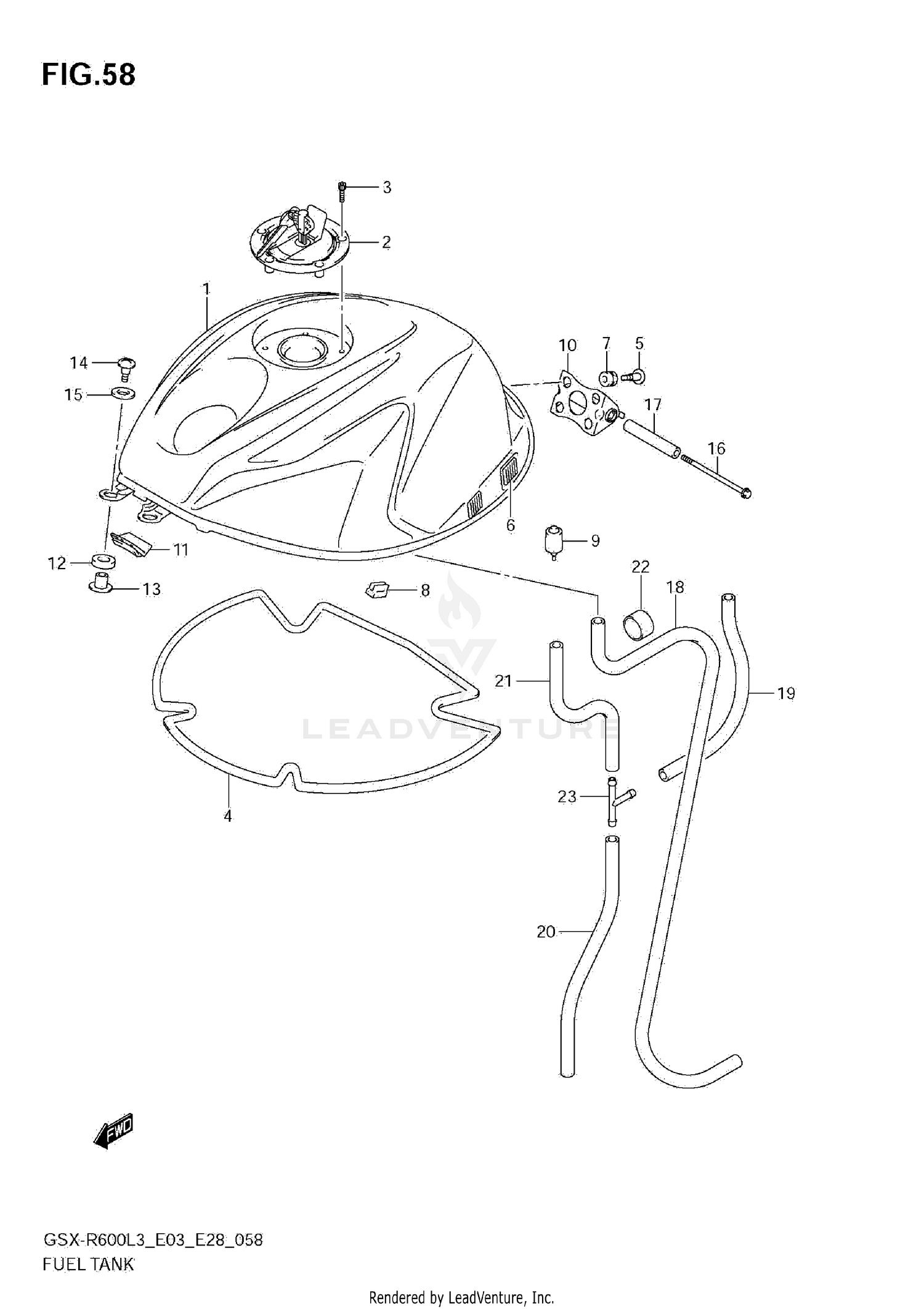

Fuel Tank (gsx-r600l3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL (BLUE)
44100-14J32-YSF
|
$1,609.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (RED)
44100-14J32-YVZ
|
$1,637.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-14J32-YWW
|
$1,291.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD,FUEL TANK HEAT
44191-14J00
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
44543-14J00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK COVER
44276-21H00
Superseded by 44276-21H01
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK REAR
44542-41G00
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, REAR
44530-41G00
Superseded by 44530-41G01
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER,FUEL TANK FRONT
44546-44H00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X25)
09139-06192
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X110)
09106-06119
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,FUEL TANK WATER DRAIN
44423-14J00
Superseded by 44423-14J01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,FUEL TANK BRTHR NO.1
44424-14J00
Superseded by 44424-14J01
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE,FUEL TANK BRTHR NO.2
44424-14J10
Superseded by 44424-14J11
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,VACUUM
44425-09E00
Superseded by 44425-09E01
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (12X16X600)
09352-12163-600
|
$8.81 | ||
|
Unavailable |
|||
|
#23
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
