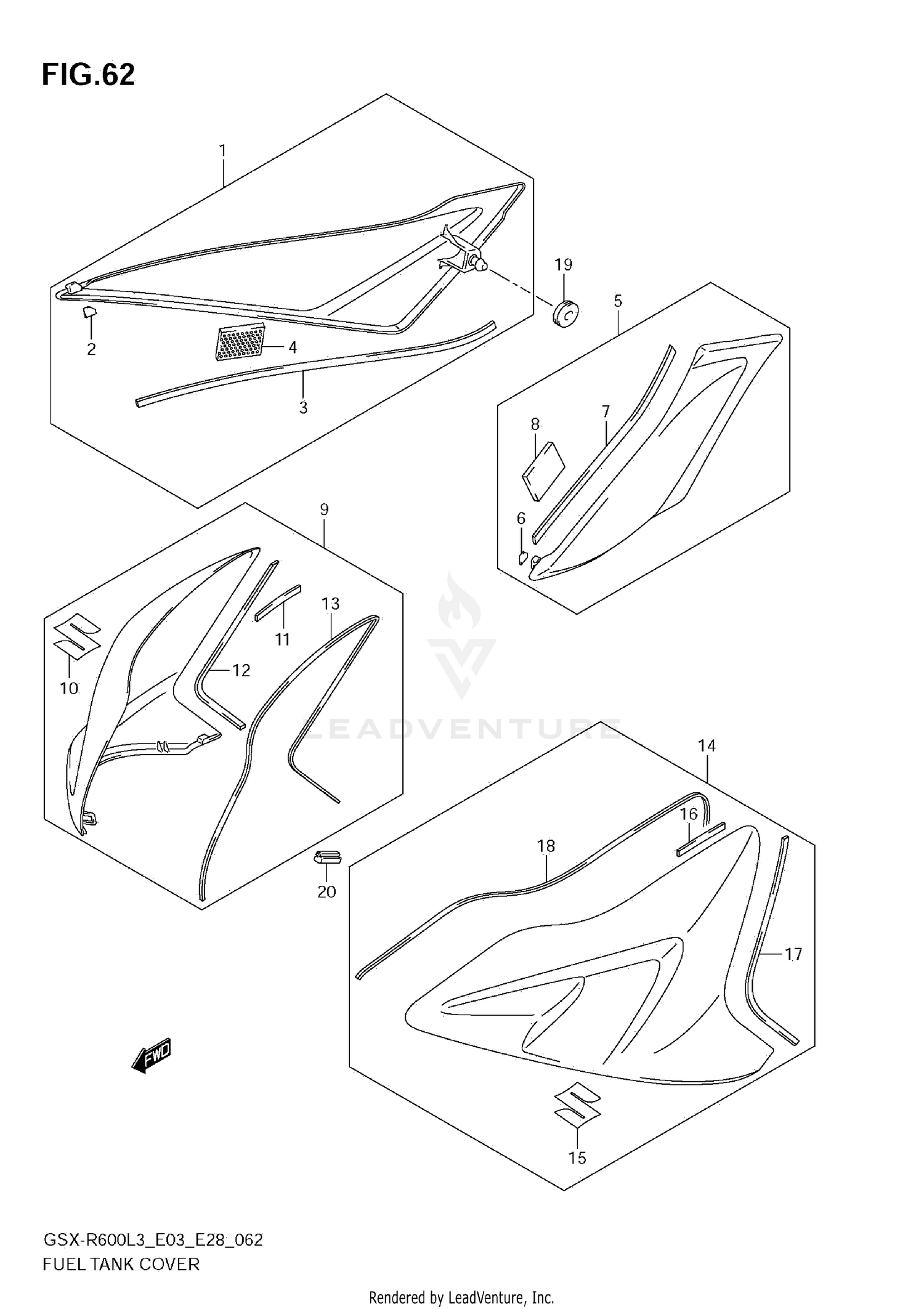

Fuel Tank Cover (gsx-r600l3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FUEL TANK SIDE RH
44170-14J00
|
$52.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FUEL TANK COVER
44172-14J00
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FUEL TANK SIDE COVER
44278-14J00
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
FASTENER (25X33X0.8)
44572-02F01
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,FUEL TANK SIDE LH
44180-14J00
|
$52.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, FUEL TANK COVER
44172-14J00
|
$10.43 | ||
|
Unavailable |
|||
|
#7
CUSHION,FUEL TANK SIDE COVER
44278-14J00
|
$6.17 | ||
|
Unavailable |
|||
|
#8
FASTENER (25X33X0.8)
44572-02F01
|
$14.29 | ||
|
Unavailable |
|||
|
#9
COVER, TANK FRONT RH (BLUE)
44270-14J12-YSF
|
$206.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, TANK FRONT RH (RED)
44270-14J12-YVZ
|
$179.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, TANK FRONT RH (WHITE)
44270-14J12-YWW
|
$177.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM, "S"
68111-18G20
|
$41.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK COVER NO.1
44273-14J00
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION,FUEL TANK COVER R NO
44274-14J00
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,FUEL TANK COVER FR
44277-14J00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, TANK FRONT LH (BLUE)
44280-14J12-YSF
|
$202.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, TANK FRONT LH (RED)
44280-14J12-YVZ
|
$217.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, TANK FRONT LH (WHITE)
44280-14J12-YWW
|
$204.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, "S"
68111-18G20
|
$41.70 | ||
|
Unavailable |
|||
|
#16
CUSHION,FUEL TANK COVER NO.1
44273-14J00
|
$19.06 | ||
|
Unavailable |
|||
|
#17
.CUSHION,FUEL TANK COVER L NO
44284-14J00
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION,FUEL TANK COVER FR
44277-14J00
|
$6.93 | ||
|
Unavailable |
|||
|
#19
CUSHION, SIDE
44173-14J00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,FUEL TANK COVER FR
44177-14J01
Superseded by 44177-14J02
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
