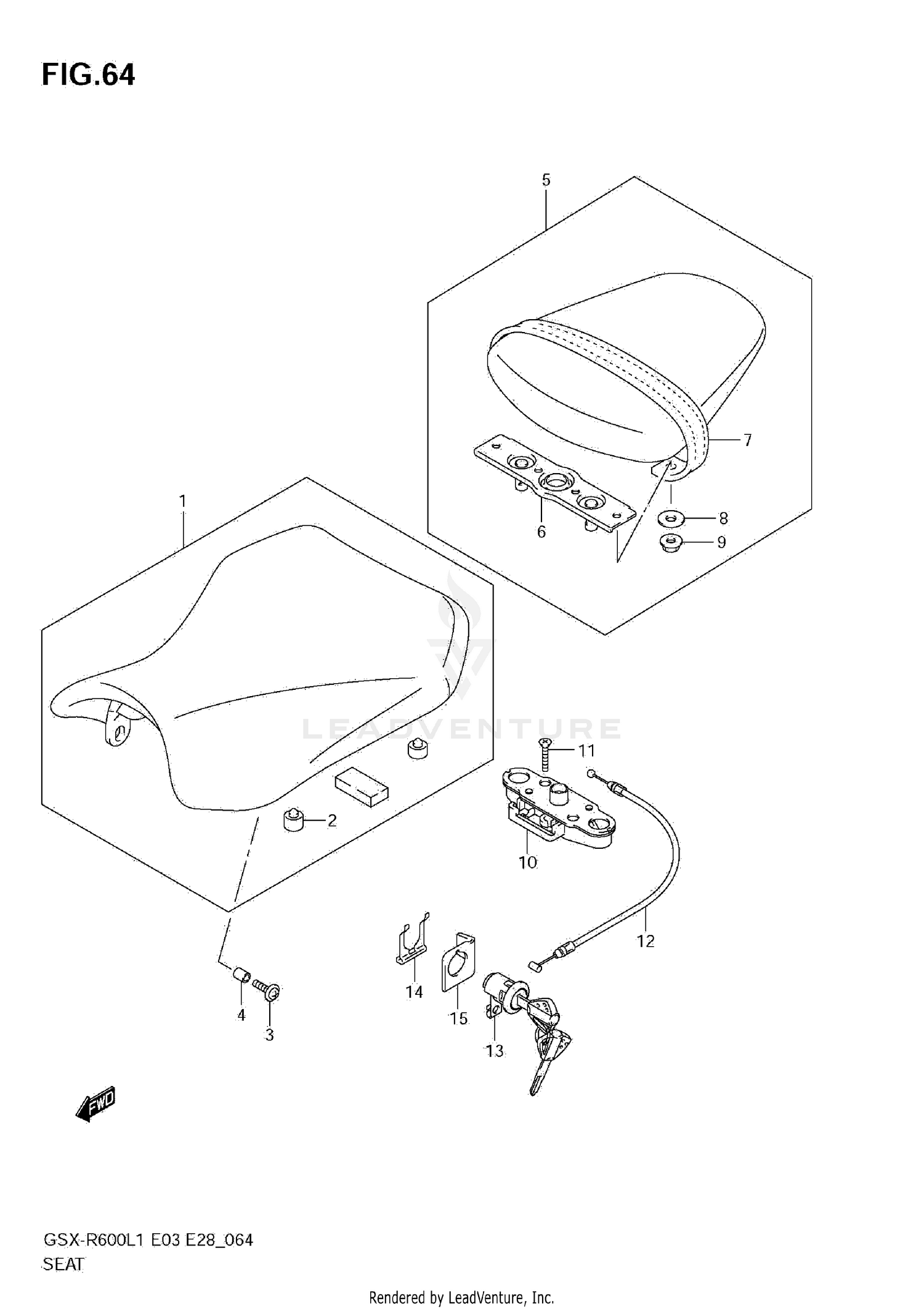

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-14J00-DW2
Superseded by 45100-14J11-DW2
|
$256.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
09321-10034
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X16)
09136-06121
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (6.5X9X10.5)
09180-06264
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT ASSY,PILLION (BLACK)
45300-14J00-P3H
Superseded by 45300-14J11-P3H
|
$214.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
.STRIKER
45290-47H00
Superseded by 45290-47H01
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BAND ASSY, SEAT
45180-14J00-P3H
Superseded by 45180-14J10-P3H
|
$31.17 | ||
|
Unavailable |
|||
|
#8
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, SEAT SUPPORT
45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02122-0630A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE,SEAT LOCK
45280-14J00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK SET, SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, SEAT LOCK ASSY
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
