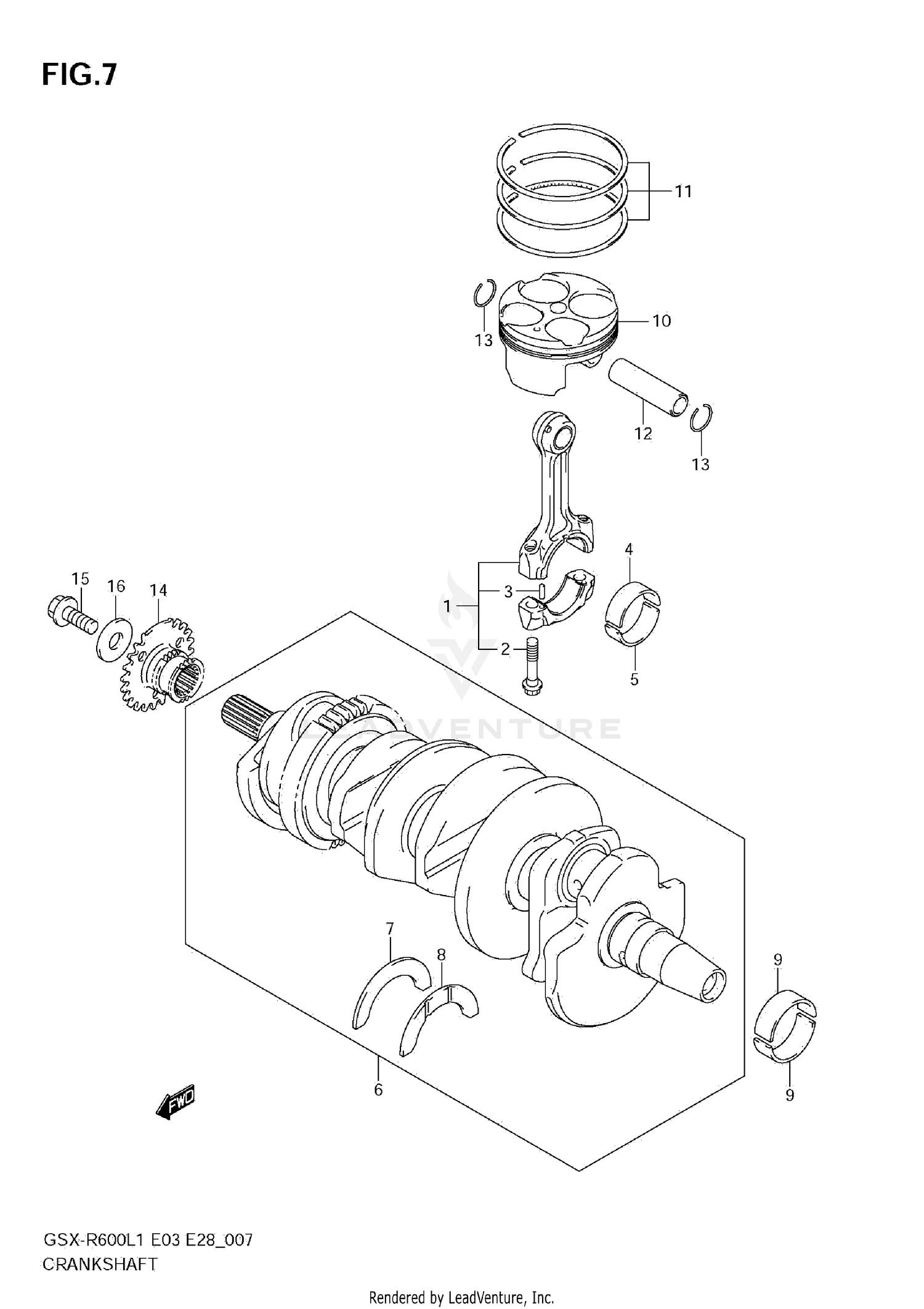

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CONNROD ASSY
12160-14J10
|
$253.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT, CONNECTING ROD
12163-35F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,CRANK PIN
12164-14J00-0A0
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,CRANK PIN
12164-14J00-0B0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,CRANK PIN
12164-14J00-0C0
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,CRANK PIN
12164-14J00-0D0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, UPPER (GREEN)
12164-29G00-0A0
|
$18.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING, UPPER (BLACK)
12164-29G00-0B0
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, UPPER (BROWN)
12164-29G00-0C0
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, UPPER (YELLOW)
12164-29G00-0D0
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT SET
12000-01810
Superseded by 12000-01820
|
$1,906.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#8
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,CRANKSHAFT
12229-01H00-0A0
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,CRANKSHAFT
12229-01H00-0B0
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,CRANKSHAFT
12229-01H00-0C0
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,CRANKSHAFT
12229-01H00-0D0
|
$23.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,CRANKSHAFT
12229-01H00-0E0
|
$24.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON
12111-14J00-0F0
|
$226.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING SET,PISTON
12140-29G20
|
$112.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN,PISTON
12151-14J00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, SNAP
09381-14001
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPROCKET, CAM CHAIN
12731-01H00
|
$146.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-10285
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
