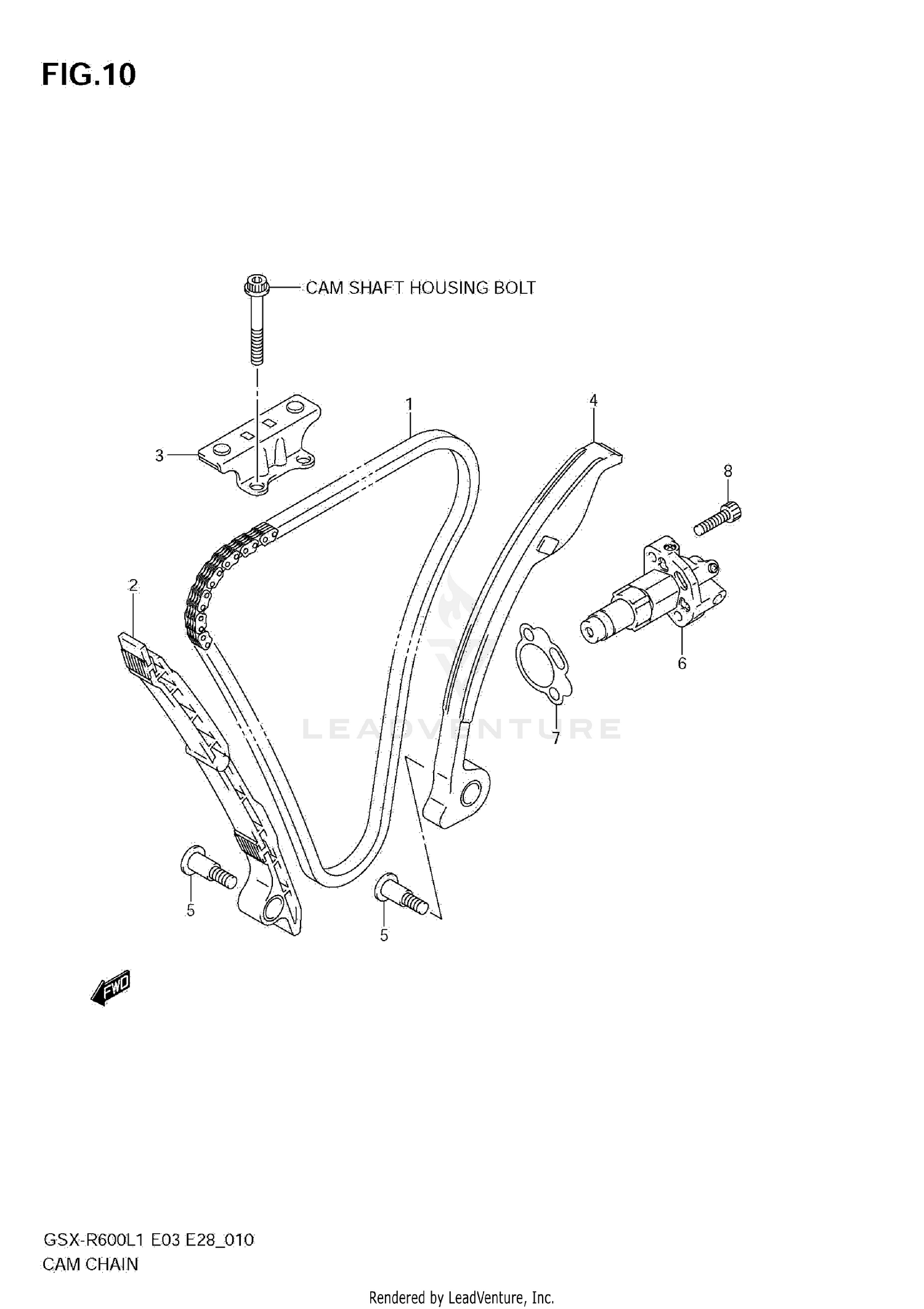

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-39F00
|
$183.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN NO.1
12771-37H00
Superseded by 12771-37H01
|
$34.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-29G00
|
$41.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM CHAIN
12811-02H00
Superseded by 12811-02H01
|
$65.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CAM CHAIN TENSIONER
12812-31G00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY,TENSIONER
12830-37H00
|
$337.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET,TENSIONER ADJUSTER
12837-02H00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
