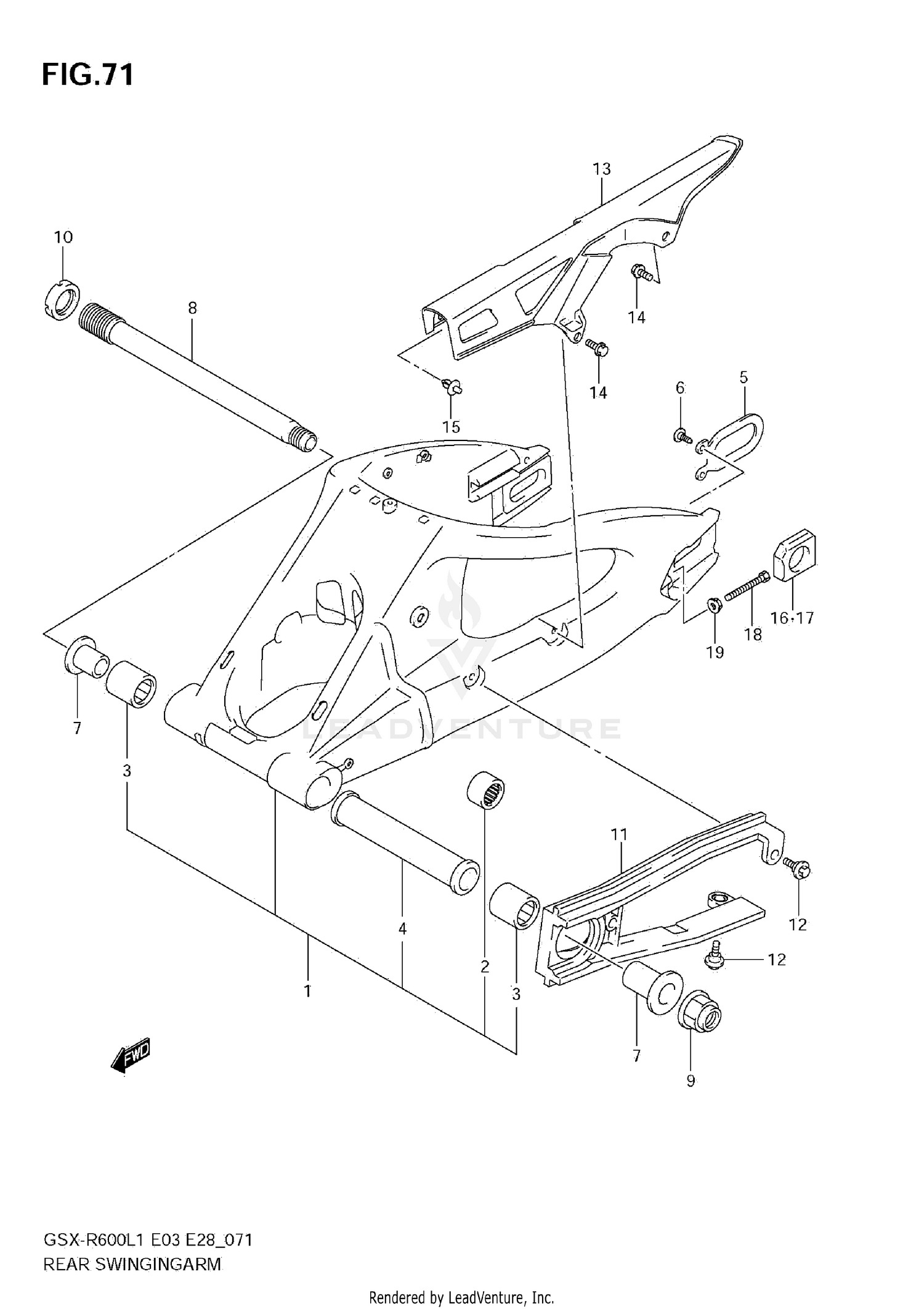

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASSY,RR (BLACK)
61000-14J00-YAP
Superseded by 61000-14J01-YAP
|
$2,954.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
SWINGING ARM ASSY, REAR (BLUE)
61000-14J00-YUA
|
$2,679.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (20X27X30)
09263-20070
|
$41.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$34.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, CENTER
61281-41G00
|
$62.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,RR SWGARM BRKT
61124-14J00
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X12)
09125-06060
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
61251-41G00
|
$50.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT,RR SWGARM PIVOT
61211-01H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20006
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, PIVOT
61214-42E00
Superseded by 61214-42E10
|
$48.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUFFER,CHAIN TOUCH DEFENSE
61273-14J00
Superseded by 61273-14J01
|
$68.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X17.8)
09111-06072
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE,CHAIN
61311-14J00
|
$50.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X14)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ADJUSTER, CHAIN RH
61445-44G00
Superseded by 61445-44G20
|
$54.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER, CHAIN LH
61446-44G00
Superseded by 61446-44G20
|
$54.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (8X50)
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-1008A
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
