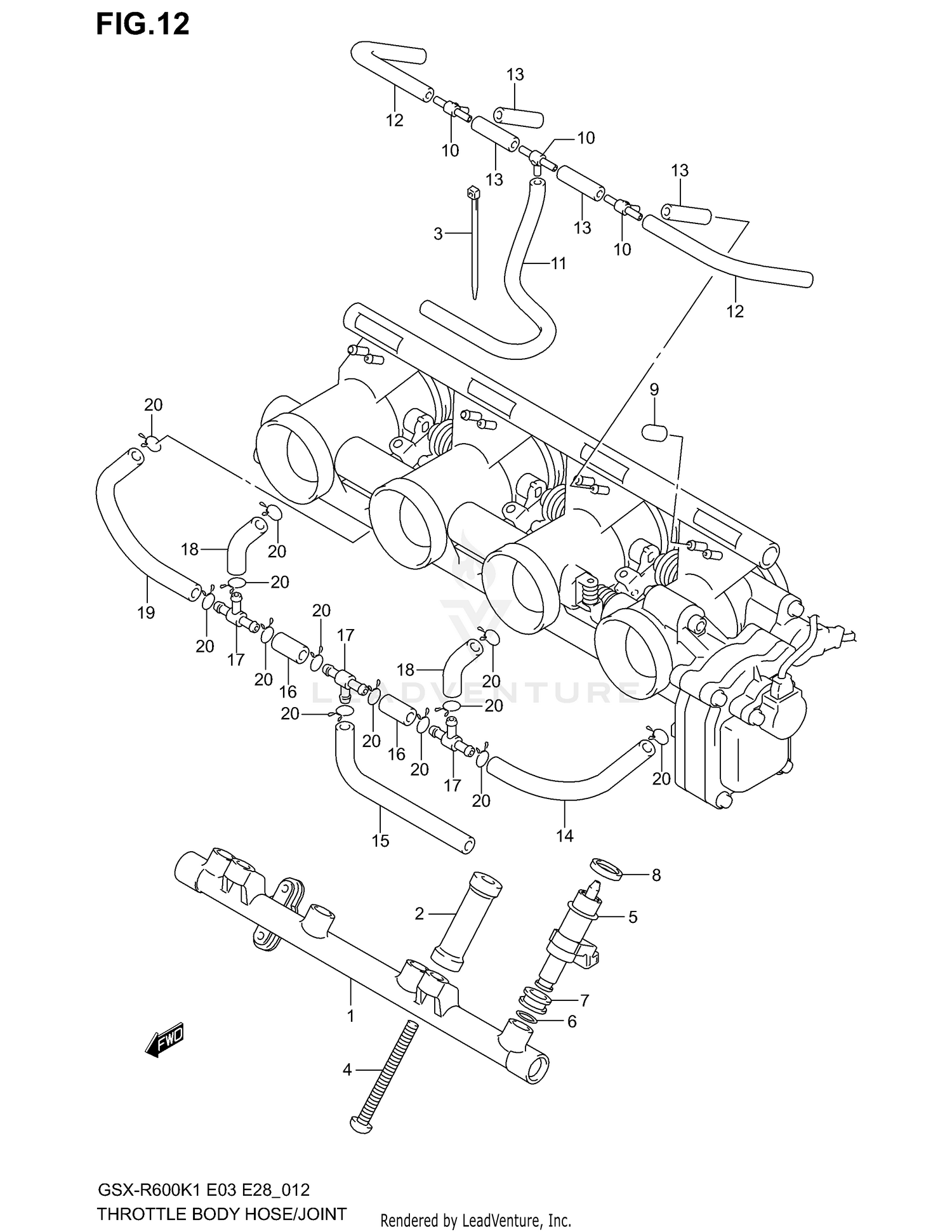

Throttle Body Hose/joint Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DERIVELY PIPE ASSY
15731-39F00
|
$215.96 | ||
|
Unavailable |
|||
|
#2
PIPE
13582-39F00
|
$12.56 | ||
|
Unavailable |
|||
|
#3
CLIP
13692-05A20
|
$6.88 | ||
|
Unavailable |
|||
|
#4
SCREW
13602-39F00
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
INJECTOR ASSY
15710-24F00
|
$355.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O-RING
15721-24F00
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, CUSHION
15722-24F00
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL RING
13672-24F00
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
13274-84000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
.3WAY, VACUUM HOSE
13685-02FA0
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#13
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#14
HOSE ASSY
13683-39F40
|
$12.21 | ||
|
Unavailable |
|||
|
#15
HOSE
13683-39F30
|
$22.57 | ||
|
Unavailable |
|||
|
#16
HOSE
13683-10200
Superseded by 13683-10201
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
NIPPLE
13685-48B00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE
13683-02FC0
|
$17.14 | ||
|
Unavailable |
|||
|
#19
HOSE ASSY
13683-39F20
|
$17.00 | ||
|
Unavailable |
|||
|
#20
CLIP
09401-10410
Superseded by 09401-10401
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
