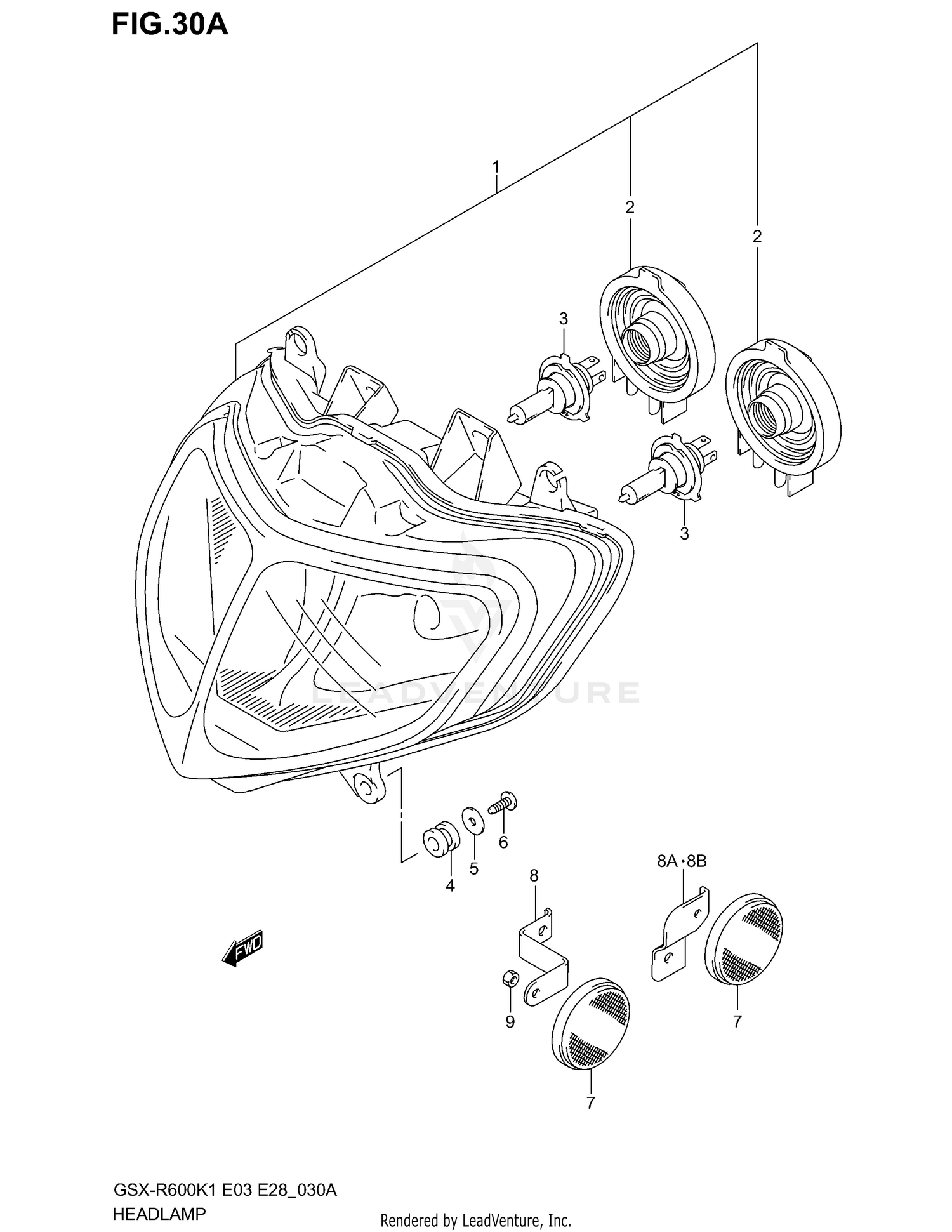

Headlamp (model K2/k3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-35F60-999
|
$494.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
35125-77A00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V60/55W,H4)
09471-12185
Superseded by 09471-12060
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION (9X18X14)
09320-09039
Superseded by 09320-09059
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER (5.5X18X1)
09160-05045
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
09132-05048
Superseded by 03541-0516B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A10
Superseded by 35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FRONT SIDE REAR
35956-35F00
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#8A
REFLEX-REFLECTOR ASSY, FR RH
35956-35F10
|
$5.49 | ||
|
Unavailable |
|||
|
#8B
REFLEX-REFLECTOR ASSY, FR LH
35957-35F10
|
$5.49 | ||
|
Unavailable |
|||
|
#9
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
