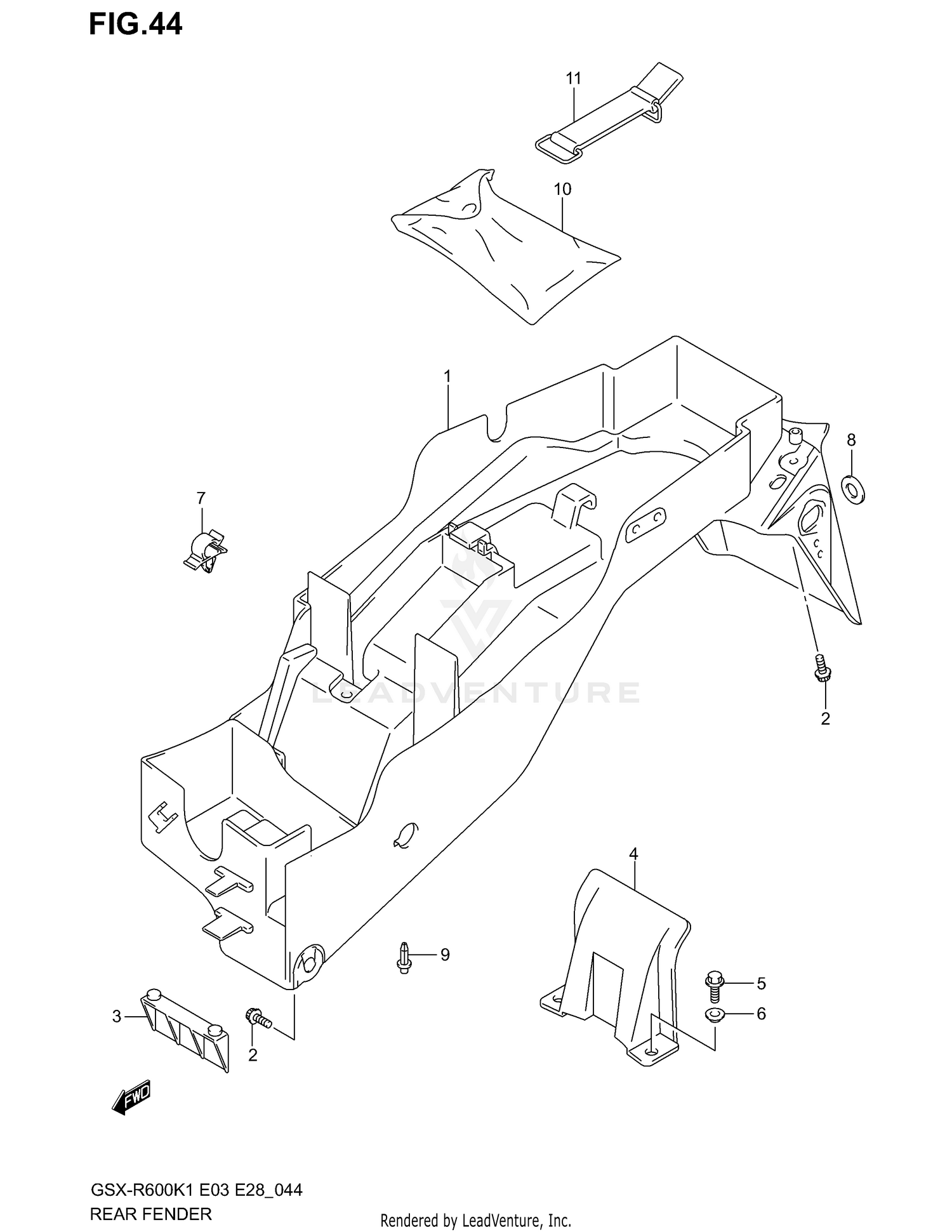

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR
63111-35F40
|
$155.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR
63111-35FB0
|
$186.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X18)
63161-35F00
Superseded by 09111-06081
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X18)
09111-06081
|
$5.37 | ||
|
Unavailable |
|||
|
#3
MUD GUARD, FRONT
63411-35F00
|
$11.55 | ||
|
Unavailable |
|||
|
#4
MUD GUARD, LOWER
63421-39F00
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09169-06026
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09403-05313
Superseded by 18214-75F00
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLIP, LOWER (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TOOL ASSY
09800-21039
Superseded by 09800-21089
|
$88.41 | ||
|
Unavailable |
|||
|
#11
BAND,TOOL
47435-02F01
Superseded by 47435-02F02
|
$9.42 | ||
|
Unavailable |
|||
