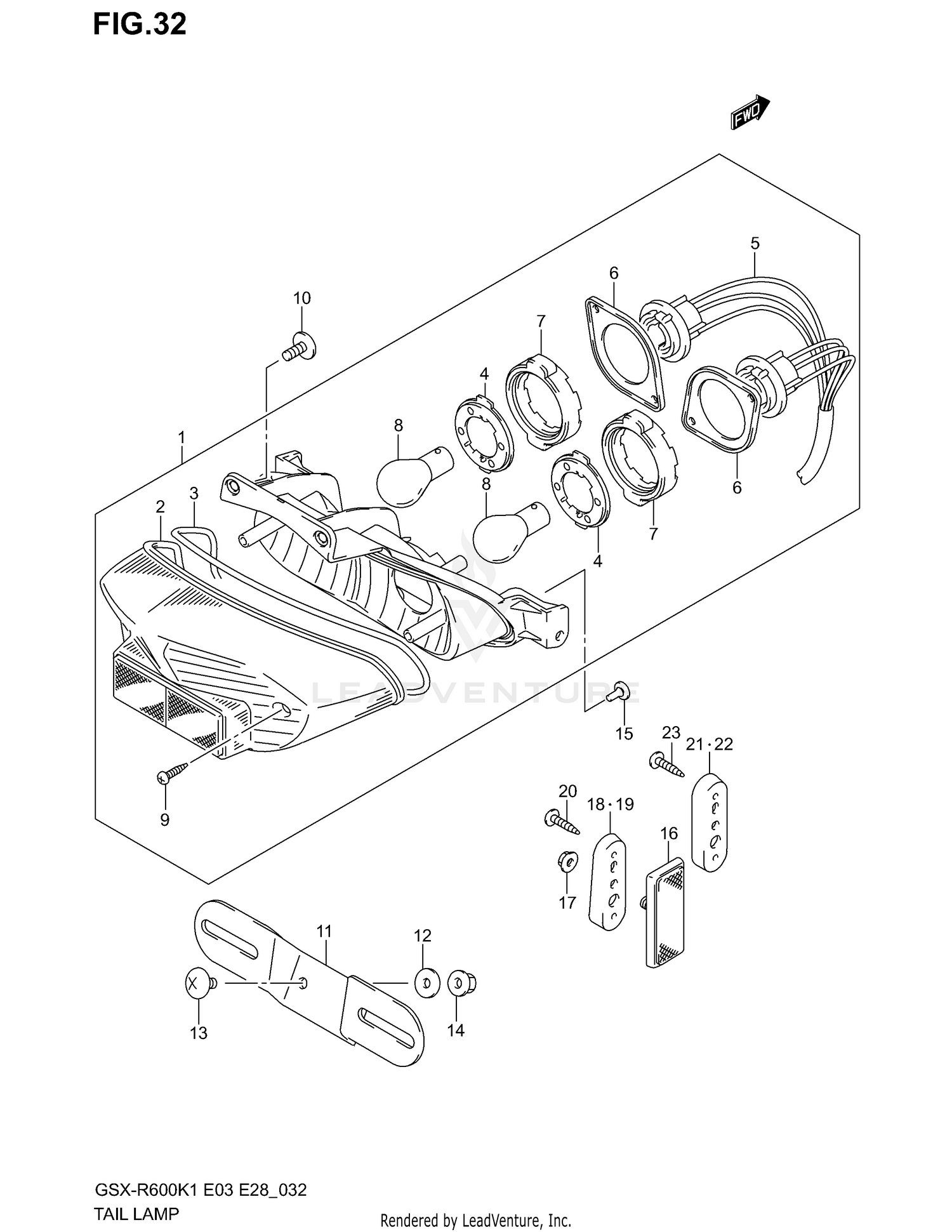

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-35F31
|
$157.59 | ||
|
Unavailable |
|||
|
#2
LENS
35712-35F30
|
$60.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-35F00
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, NO.1
35716-48B21
|
$22.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET & CORD
35718-35F00
|
$72.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, NO.2
35736-48B21
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
35765-48B21
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03211-04207
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-05103
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, LICENSE PLATE
35927-35F00
|
$17.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CUSHION
09321-06026
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, REAR SIDE RH
35978-35F00
|
$4.03 | ||
|
Unavailable |
|||
|
#19
BRACKET, REAR SIDE LH
35979-35F00
|
$4.32 | ||
|
Unavailable |
|||
|
#20
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, REAR SIDE RR RH
35978-40F00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, REAR SIDE RR LH
35979-40F00
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
03541-04163
Superseded by 03541-0416A
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
