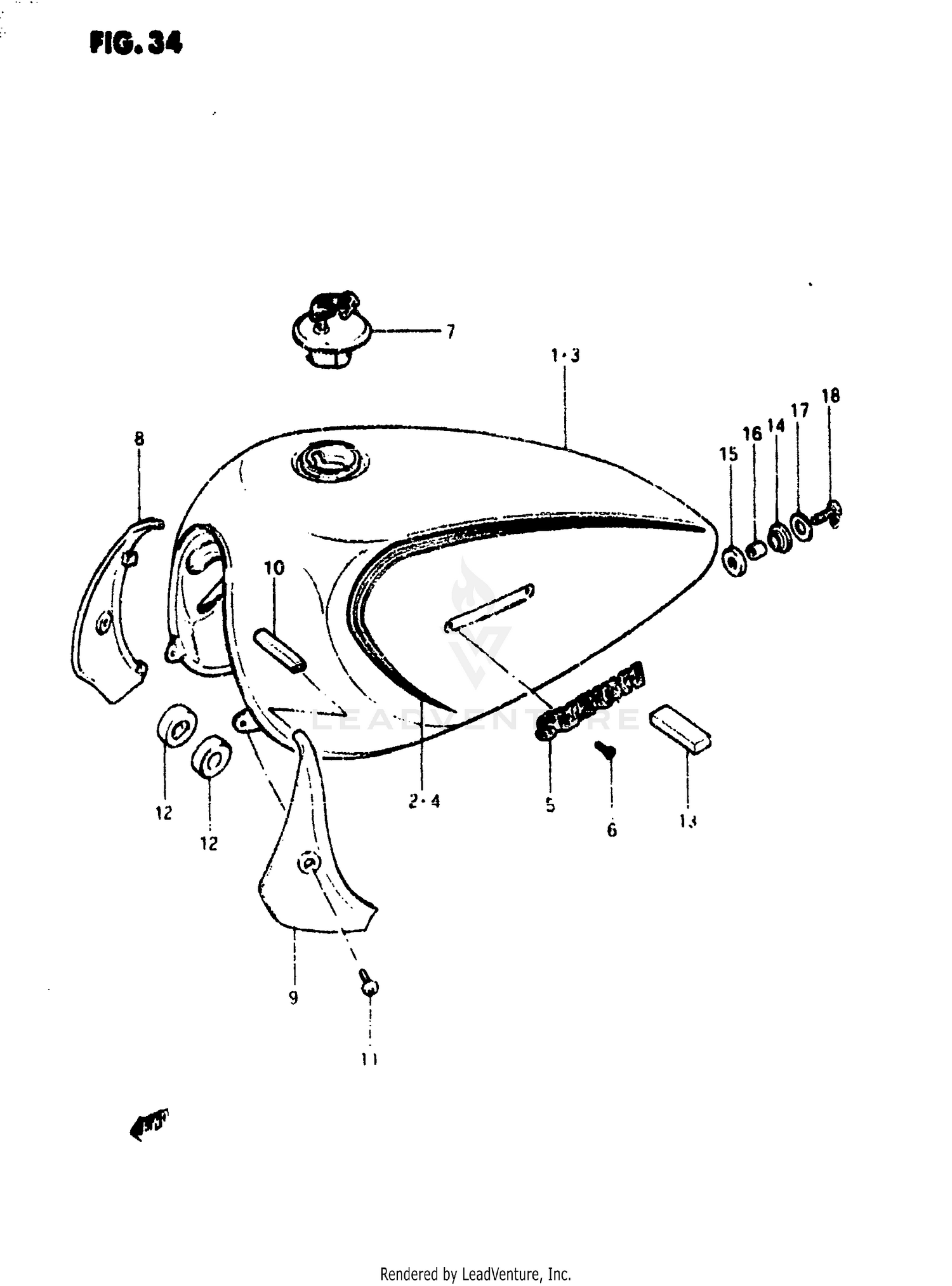

Fuel Tank (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-44240-019
Superseded by 44100-44231-019
|
$187.94 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-44220-998
|
$21.03 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
44100-44240-05L
Superseded by 44100-44231-05L
|
$177.14 | ||
|
Unavailable |
|||
|
#4
TAPE SET
68110-44220-71F
|
$17.50 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68111-37300
|
$24.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02132-03065
Superseded by 02122-0306B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP SET,FUEL TA
44200-30704
Superseded by 44200-30832
|
$105.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, FRONT RH
44271-44201
|
$9.79 | ||
|
Unavailable |
|||
|
#9
COVER, FRONT LH
44272-44201
|
$10.01 | ||
|
Unavailable |
|||
|
#10
TUBE, FRONT
44273-44200
|
$1.67 | ||
|
Unavailable |
|||
|
#11
SCREW
02142-06125
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CUSHION FUEL TA
09329-01005
Superseded by 09329-01008
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, REAR NO.1
09320-12010
Superseded by 09320-12013
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, REAR NO.2
09320-12023
Superseded by 09320-12017
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPACER
09180-08067
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01107-08308
Superseded by 01500-08307
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
