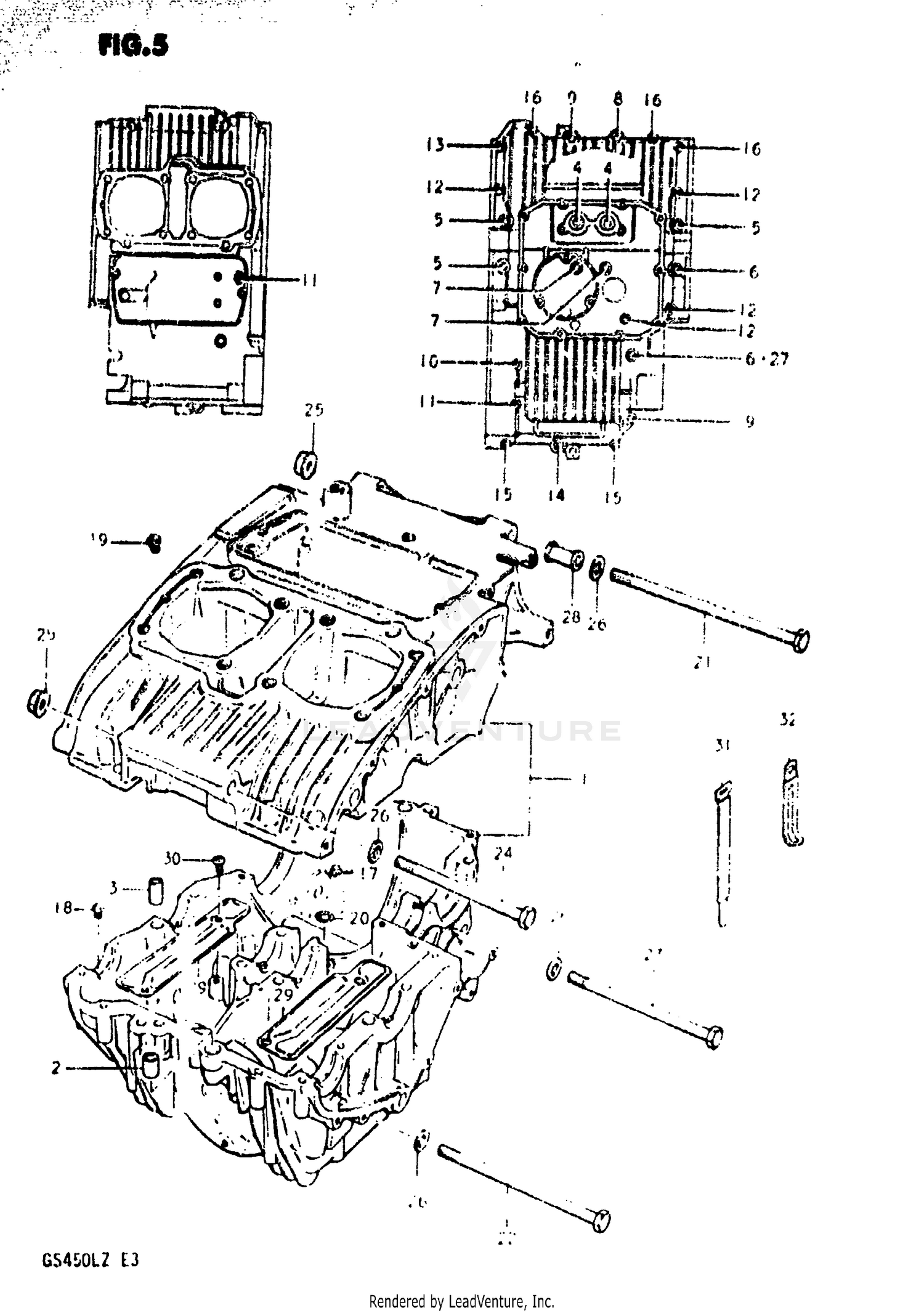

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-44851
Superseded by 11300-44861
|
$819.18 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-44861
|
$819.18 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13004
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (11X20)
09206-11005
Superseded by 09206-11017
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09106-08014
Superseded by 07130-0870B
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X125)
09103-08020
Superseded by 09103-08106
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X110)
09103-08024
Superseded by 09103-08134
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X100)
09103-08009
Superseded by 09103-08070
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01517-08658
Superseded by 01550-08657
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, MUF SPRT,RR
01517-08458
Superseded by 01550-08457
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X125)
09103-06031
Superseded by 09103-06033
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X105)
09103-06025
Superseded by 09103-06067
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-06908
Superseded by 01550-06907
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01517-06708
Superseded by 01550-06707
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01517-06658
Superseded by 01550-06657
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X50)
01517-06508
Superseded by 01550-06507
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (CHROME)
01517-06458
Superseded by 01550-06457
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, OIL GALLERY MISSION
09493-28008
|
$4.93 | ||
|
Unavailable |
|||
|
#18
JET, OIL G BALANCER SHAFT
09493-32002
|
$18.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, OIL GALLERY CYLINDER
09493-24008
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING, NOZZLE
09280-03001
Superseded by 09280-03003
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
ENGINE MOUNT BO
09101-10010
Superseded by 09101-10010-XC0
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (10x210)
09100-10033
|
$12.66 | ||
|
Unavailable |
|||
|
#23
BOLT
09100-10092
Superseded by 41189-17X00
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT 10X125
09100-10051
Superseded by 09100-10274
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08319-31105
Superseded by 08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
08322-11108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPACER, ENGINE MOUNTING
11610-44100
|
$8.70 | ||
|
Unavailable |
|||
|
#29
PLATE, OIL SEPARATOR
11521-44100
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
02112-06088
Superseded by 02112-06087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
09404-06412
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
