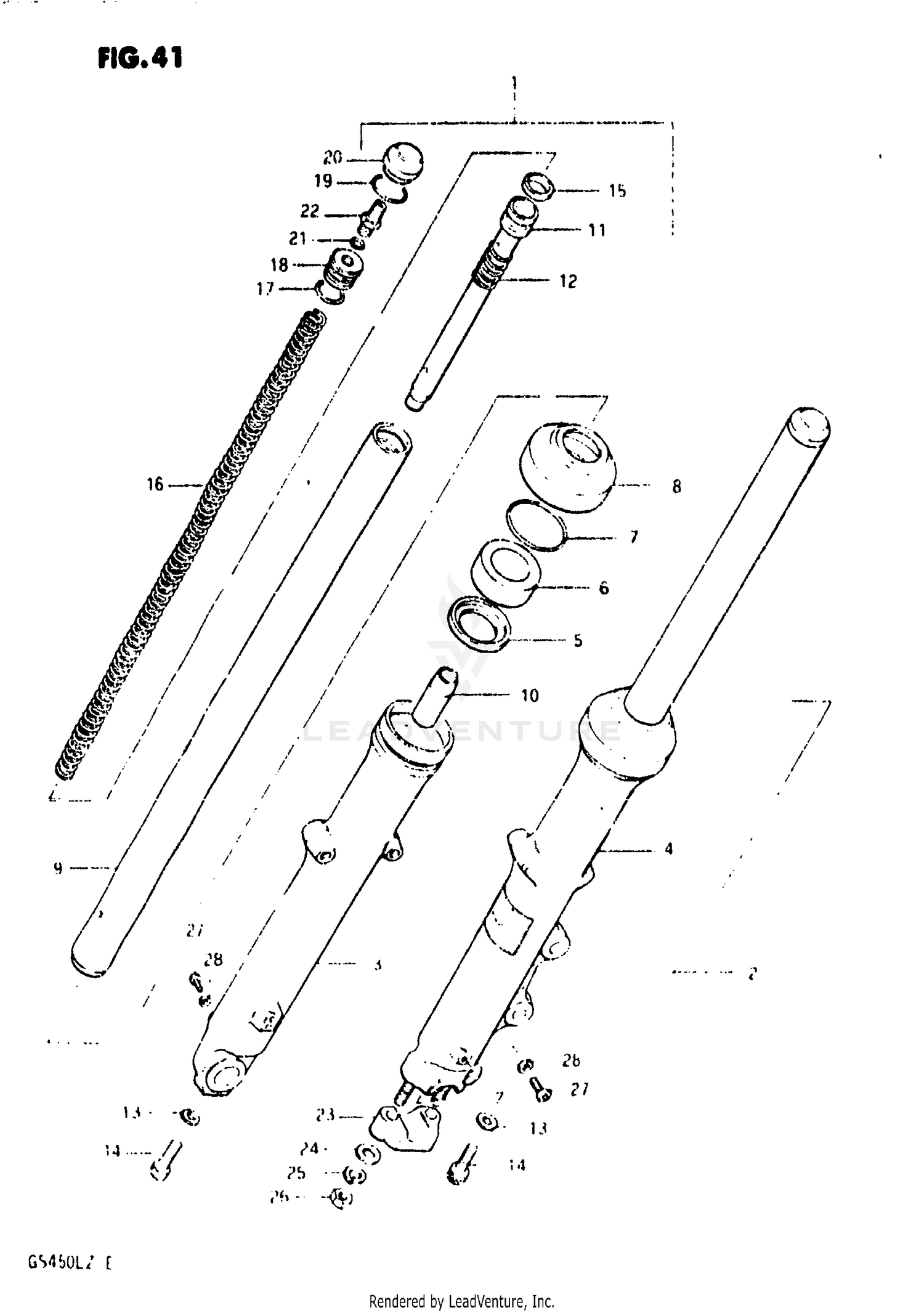

Front Fork (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUMPER ASSY, RH
51103-44220
|
$200.60 | ||
|
Unavailable |
|||
|
#2
DUMPER ASSY, LH
51104-44220
|
$216.24 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, RH
51130-44310
|
$159.85 | ||
|
Unavailable |
|||
|
#4
OUTER TUBE, LH
51140-44310
|
$163.58 | ||
|
Unavailable |
|||
|
#5
SPACER, SEAL
51168-44030
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
51153-37310
Superseded by 51153-02B00
|
$26.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, OIL SEAL STOPPER
51156-11420
Superseded by 51156-02B00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL
51571-37310
|
$26.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
INNER TUBE
51110-44211
|
$118.46 | ||
|
Unavailable |
|||
|
#10
.PIECE, OIL LOCK
51195-48000
|
$9.12 | ||
|
Unavailable |
|||
|
#11
CYLINDER
51146-44731
Superseded by 51146-38300
|
$44.35 | ||
|
Unavailable |
|||
|
#12
SPRING, REBOUND
51177-36030
|
$2.33 | ||
|
Unavailable |
|||
|
#13
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, PISTON
51196-33130
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
51171-44220
|
$19.69 | ||
|
Unavailable |
|||
|
#17
O RING
51181-33131
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT SPRING
51172-44170
|
$4.89 | ||
|
Unavailable |
|||
|
#19
RING STOPPER
51169-48500
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
51189-44170
|
$4.39 | ||
|
Unavailable |
|||
|
#21
.O RING (D:1.9,ID:5.7)
51117-45440
Superseded by 09280-06005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, AIR
51293-45440
|
$16.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, AXLE
51132-31030
|
$34.09 | ||
|
Unavailable |
|||
|
#24
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, CLUTCH RELEASE NO.1
09140-08005
Superseded by 09140-08017
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
02112-04068
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
51183-33030
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
