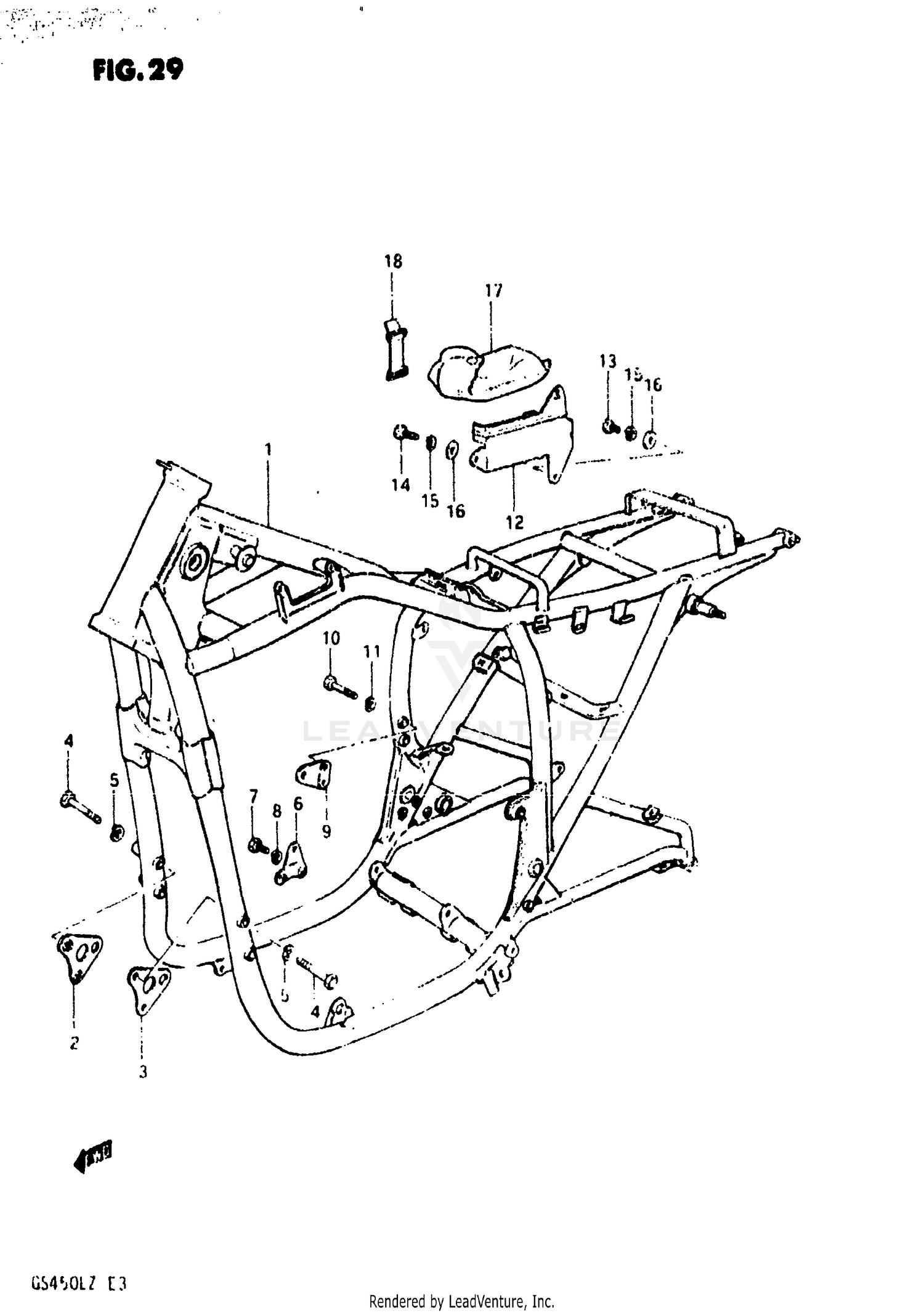

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
41100-44210-019
Superseded by 41100-44250-019
|
$503.75 | ||
|
Unavailable |
|||
|
#2
PLATE, NO. 1 RH (BLACK)
41930-44000-019
|
$7.77 | ||
|
Unavailable |
|||
|
#3
PLATE, NO. 1 LH (BLACK)
41940-44000-019
|
$7.38 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08608
Superseded by 01500-0860B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE, NO.2 RH (BLACK)
41920-44100-019
|
$6.32 | ||
|
Unavailable |
|||
|
#7
PLUG, DRAIN
01107-08168
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#9
PLATE, NO.4 RH (BLACK)
41910-44000-019
|
$7.08 | ||
|
Unavailable |
|||
|
#10
BOLT
01107-08458
Superseded by 01500-08453
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#12
HOLDER, TOOL
41551-44100
|
$9.32 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
TOOL SET
09800-00193
Superseded by 09800-06801
|
$66.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOOL SET
09800-00811
Superseded by 09800-06801
|
$66.28 | ||
|
Unavailable |
|||
|
#17
TOOL SET
09800-06800
Superseded by 09800-06801
|
$66.28 | ||
|
Unavailable |
|||
|
#18
BAND
09462-00072
Superseded by 09462-00094
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
