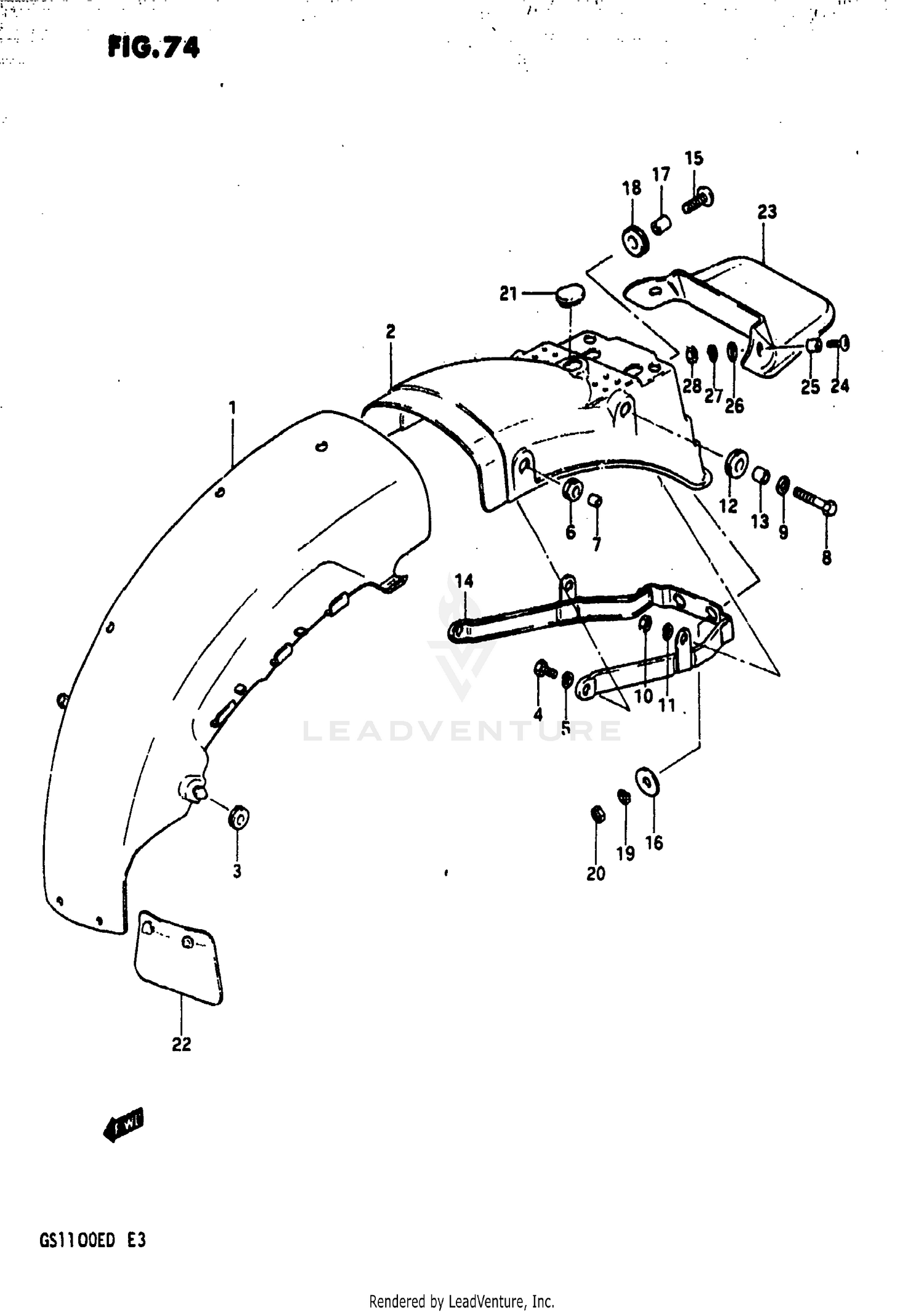

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,RR FENDER
63112-49003
Superseded by 63112-49004
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, REAR FENDER REAR
63113-49000-291
|
$136.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01107-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION (8.5X20X8)
09320-08007
Superseded by 09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.1x9x7.5)
09180-06038
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, REAR
01204-08307
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FENDER SIDE CUS
09320-12011
Superseded by 09320-12090
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-08021
Superseded by 09180-08188
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
REINFORGEMENT, REAR FENDER
63120-49000
|
$38.35 | ||
|
Unavailable |
|||
|
#15
SCREW
02142-06207
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER (6.5X9X9)
09180-06011
Superseded by 09180-06263
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.39 | ||
|
Unavailable |
|||
|
#19
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#20
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG
09250-12008
|
$0.78 | ||
|
Unavailable |
|||
|
#22
MUD GUARD, REAR FENDER
63411-31900
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
EXTENSION, REAR FENDER
63311-49030
|
$10.73 | ||
|
Unavailable |
|||
|
#24
SCREW
09125-06009
Superseded by 09125-06073
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER (6.2x8.3x5.7)
09180-06001
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#28
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
Unavailable |
|||
