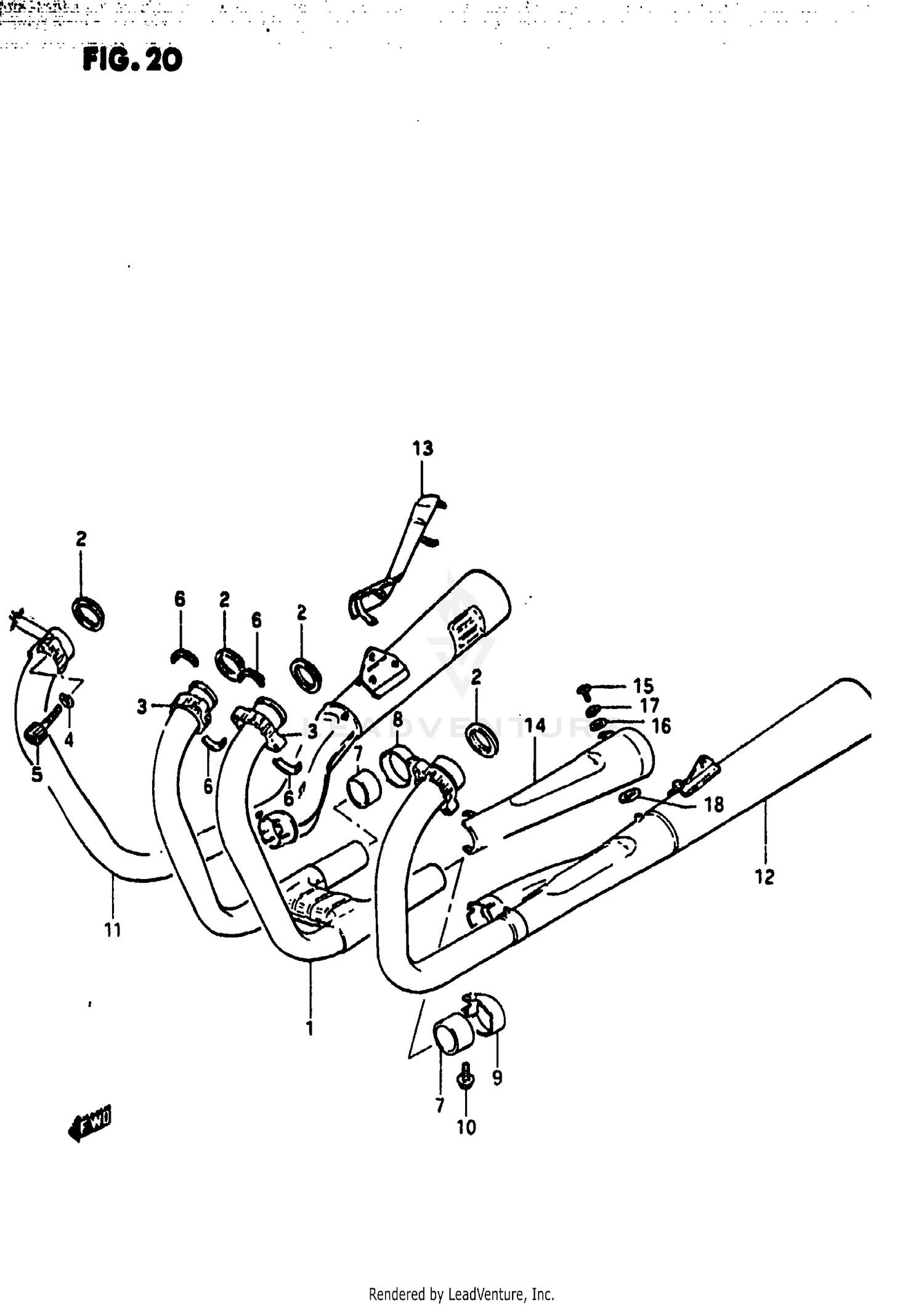

Muffler (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST CENTER
14100-49200
|
$344.73 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
14181-11020
Superseded by 14181-01D00
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, EXHAUST PIPE FRONT
14182-49010
Superseded by 14182-49011
|
$33.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP (H:21)
14182-49011
|
$33.62 | ||
|
Unavailable |
|||
|
#4
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, MUFFLER SUPPORT
09106-08018
Superseded by 07130-0845B
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09106-08021
Superseded by 07130-08407
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, EXHAUST PIPE
14155-49000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR,MUFFL
14771-49001
Superseded by 14771-49010
|
$34.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, CONNECTOR RH
14459-49000
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, CONNECTOR LH
14469-49000
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-08258
Superseded by 01550-08257
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
14301-49201
Superseded by 14301-49201-H01
|
$149.65 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
14301-49202
Superseded by 14301-49204-H01
|
$143.56 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
14301-49203
Superseded by 14301-49204-H01
|
$143.56 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14302-49201
Superseded by 14302-49203-H01
|
$385.78 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14302-49202
Superseded by 14302-49203-H01
|
$385.78 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
14780-49202
Superseded by 14780-49203
|
$38.18 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
14780-49500
Superseded by 14780-49501
|
$41.34 | ||
|
Unavailable |
|||
|
#14
NO DESCRIPTION AVAILABLE
14790-49202
Superseded by 14790-49203
|
$49.46 | ||
|
Unavailable |
|||
|
#15
SCREW
02112-05108
Superseded by 02112-05107
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08322-21058
Superseded by 08322-01057
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,MUFFLER
09168-06005
Superseded by 09168-06105
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
