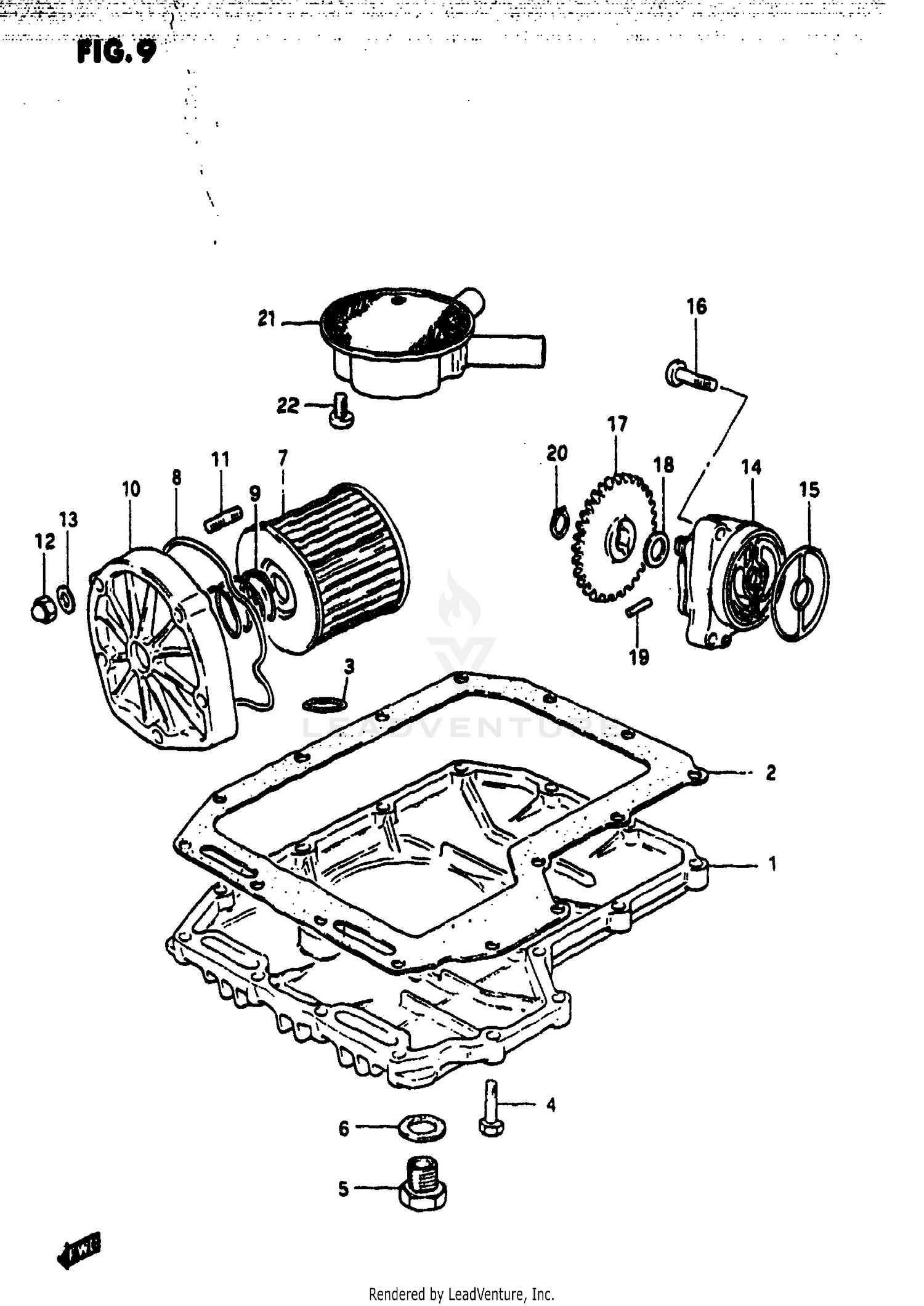

Oil Pump - Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN OIL
11511-49200
Superseded by 11511-49201
|
$312.20 | ||
|
Available to order. Add to View Price |
|||
|
#1
PAN OIL
11511-49220
Superseded by 11511-49201
|
$312.20 | ||
|
Unavailable |
|||
|
#2
GASKET,OIL PAN(
11489-49200
Superseded by 11489-49201-H17
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING
09280-13001
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-06258
Superseded by 01550-06257
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-06255
Superseded by 01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
09168-14004
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FILTER, ENGINE OIL
16510-45040
|
$7.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
16518-49200
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09440-32004
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
16531-49210
|
$50.04 | ||
|
Unavailable |
|||
|
#10
CAP
16531-49220
|
$40.59 | ||
|
Unavailable |
|||
|
#11
STUD BOLT (L:25)
01421-06258
Superseded by 01421-06257
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, LICENSE HOLDER
08313-11068
Superseded by 08313-10067
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08313-11065
Superseded by 08313-1006A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
.WASHER
08322-21065
Superseded by 08322-0106B
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PUMP, ENGINE OIL
16400-49220
|
$154.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING
16491-49200
Superseded by 16491-31300
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (6x32)
09103-06045
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, DRIVEN (NT:33)
16331-49000
|
$123.60 | ||
|
Unavailable |
|||
|
#18
WASHER
08221-10185
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09261-04009
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
08331-31109
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
STRAINER, ENGINE OIL
16520-49200
|
$55.74 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
02112-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
