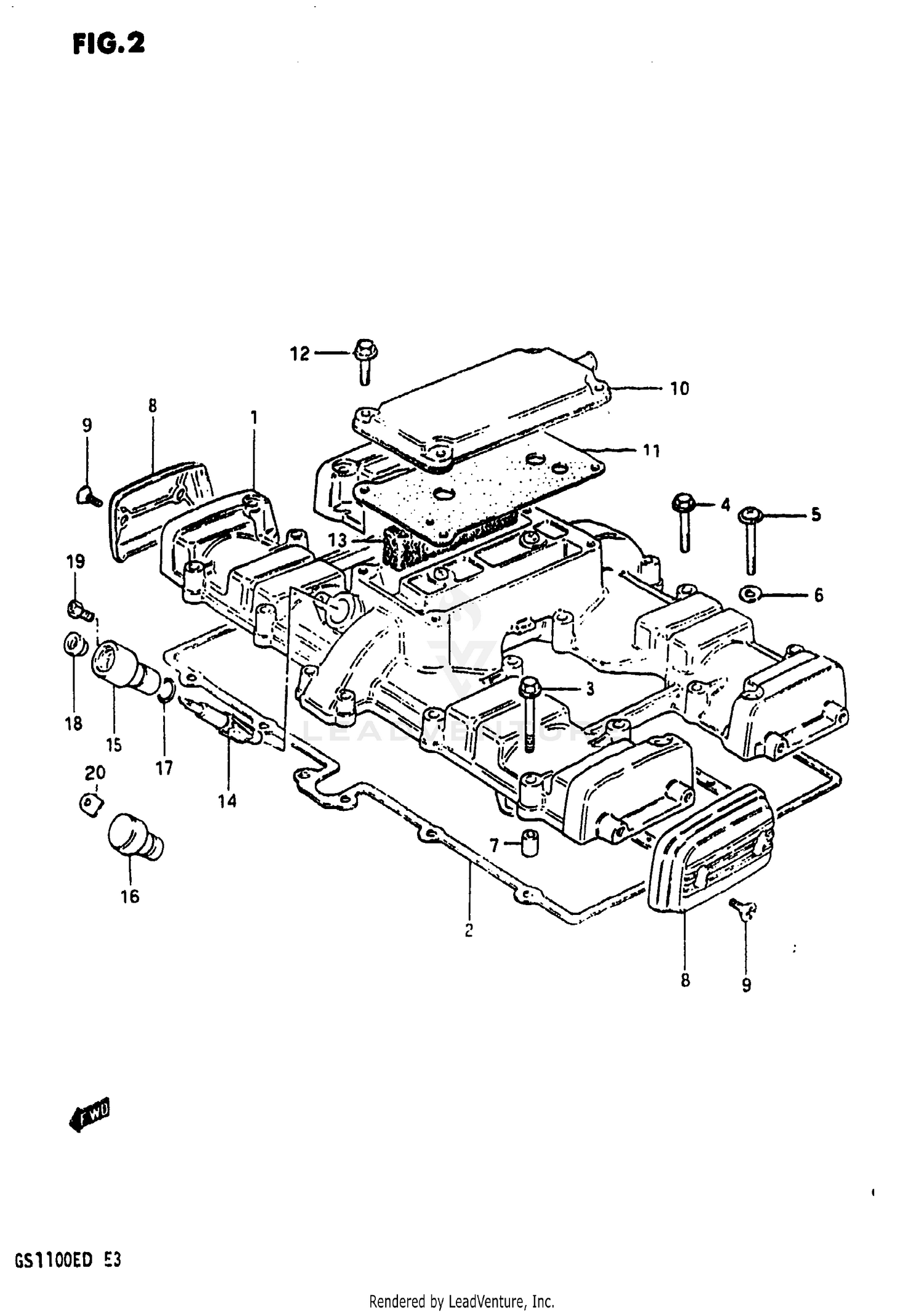

Cylinder Head Cover (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
11171-45440
|
$203.42 | ||
|
Unavailable |
|||
|
#2
GASKET,CYLINDER
11173-49221
Superseded by 11173-49224-H17
|
$47.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01517-06405
Superseded by 01550-0640A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-06355
Superseded by 01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02152-06405
Superseded by 02112-0640A
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, SIDE
11174-49221
|
$25.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
09127-05015
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, BREATHER
11176-45411
Superseded by 11176-45402
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET,BREATHER
11177-49210
Superseded by 11177-49210-H17
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-06205
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEPARATOR,HD CV
11186-49200
Superseded by 11186-49201
|
$10.50 | ||
|
Unavailable |
|||
|
#14
GEAR, TACHOMETER DRIVEN
26431-49200
Superseded by 26431-49201
|
$42.94 | ||
|
Unavailable |
|||
|
#15
SLEEVE
26441-49000
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
26442-45000
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL BAND
26451-45000
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
09289-05002
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
09128-05101
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE
26449-33000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
