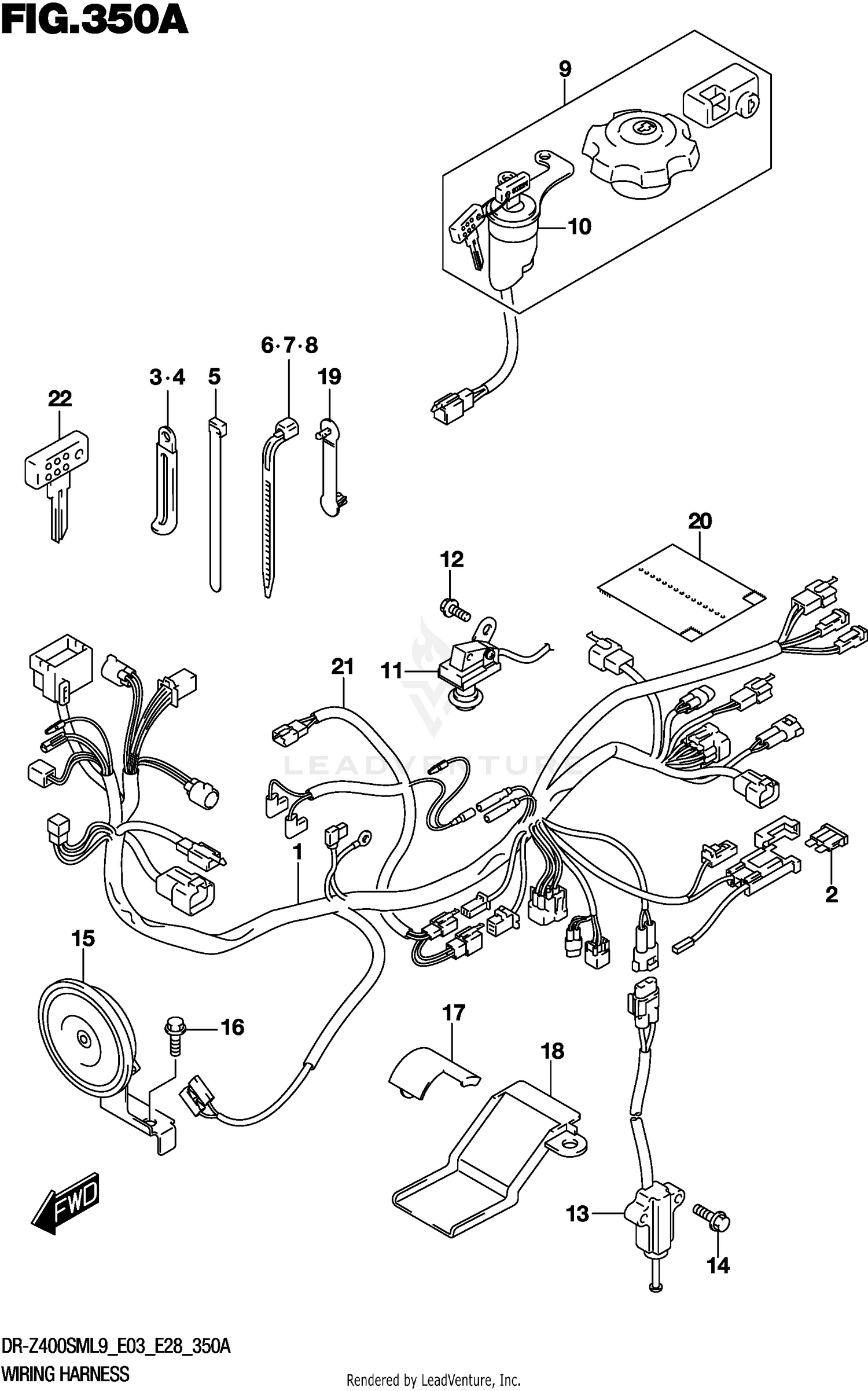

Wiring Harness (dr-z400sml9 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS WIRING
36610-29FF0
Superseded by 36610-29FF1
|
$360.56 | ||
|
Unavailable |
|||
|
#2
.FUSE (20A)
09481-20101
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#4
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK SET
37101-29811
Superseded by 37101-29814
|
$205.80 | ||
|
Unavailable |
|||
|
#10
SWITCH ASSY,IGN
37110-29FA0
Superseded by 37110-29FA1
|
$151.76 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY
37740-29F00
|
$145.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02162-0608B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY,SID
37840-11X50
Superseded by 37840-11X52
|
$88.95 | ||
|
Unavailable |
|||
|
#14
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN ASSY
38500-29F01
|
$96.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PROTECTOR WIRING HARNESS
36611-29F10
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR,WIRING HARNESS
36611-29F00
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:63)
36651-48E00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER WIRING HARNESS
36618-15D20
Superseded by 36618-15D21
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE,CARB HEATER
36856-29F00
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#22-1
KEY,BLANK (TYPE:C)
37146-01F00
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#22-2
KEY,BLANK (TYPE:D)
37146-01F10
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#22-3
KEY,BLANK (TYPE:E)
37146-01F20
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#22-4
KEY,BLANK (TYPE:F)
37146-01F30
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
