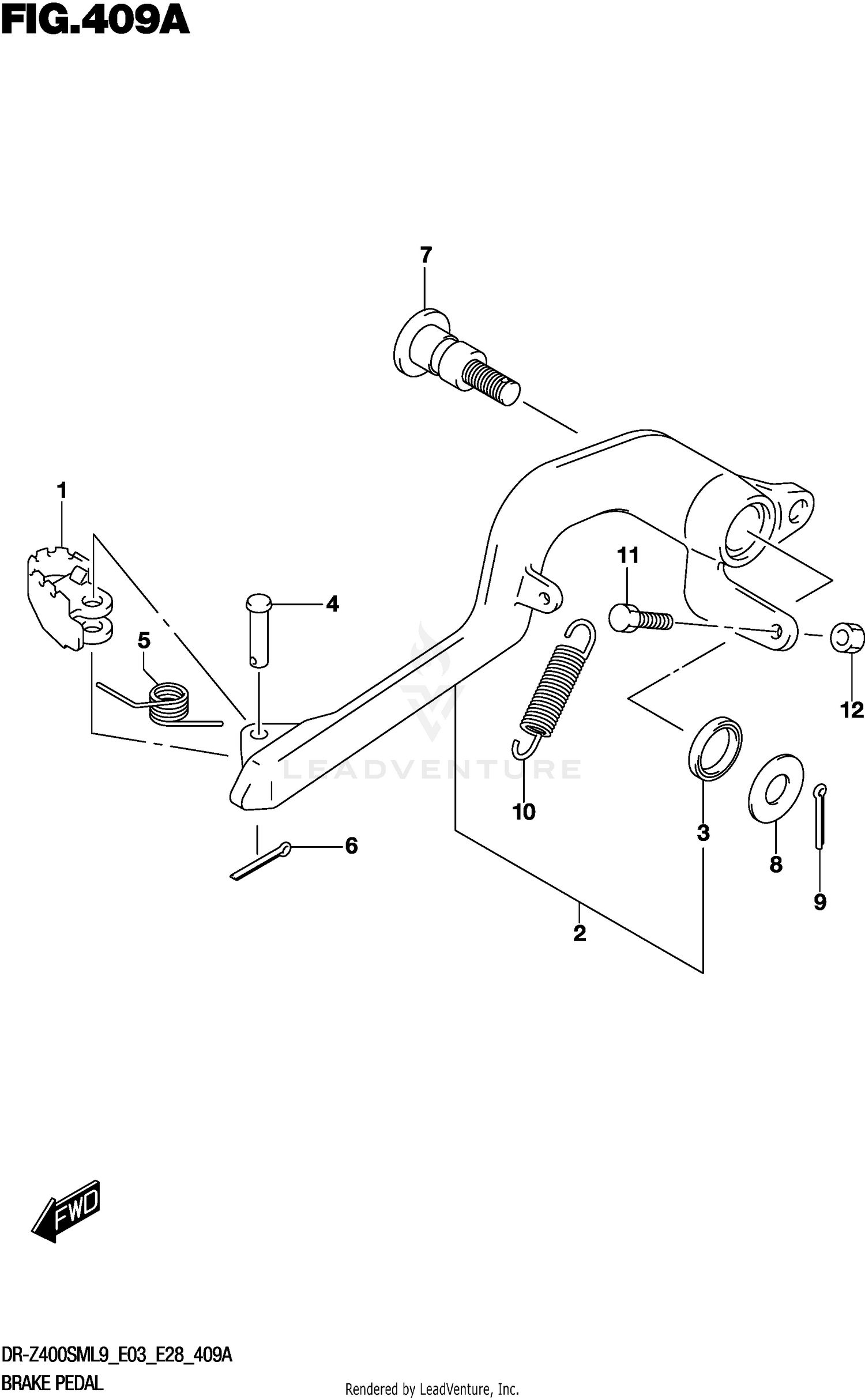

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43110-43D00
|
$16.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM,BRAKE PEDAL
43120-29F10
|
$268.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
.OIL SEAL (15X21X3)
09284-15006
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN (6X23.5)
09200-06062
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09444-11006
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,BRAKE PEDAL
43142-27C00
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
08211-10261
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09443-11033
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X30)
09104-06004
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08310-0006B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
