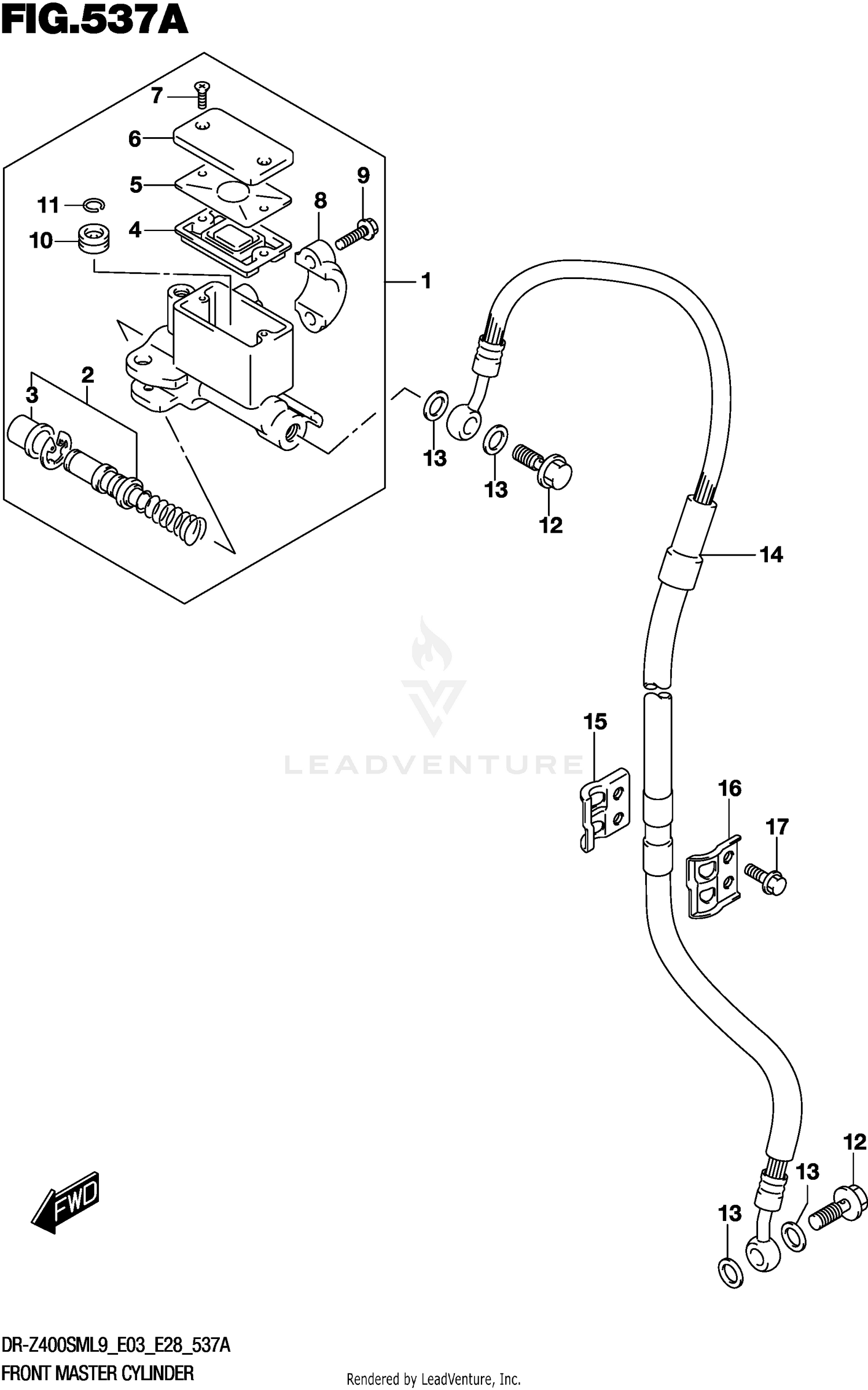

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-44E50
|
$283.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-38810
|
$66.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
59666-44300
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
.DIAPHRAGM
59667-04700
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PLATE,DIAPHRAGM
59668-14F00
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PLATE
59669-14F20
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW
02122-0412A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
.HOLDER
59671-03D00
|
$29.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT,HOLDER (6X25)
59675-06F00
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SEPARATOR
59748-36E00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
.RING
69744-36E00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
UNION (10X1.25X22)
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
59480-29F31
Superseded by 59480-29F32
|
$184.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP,FRONT BRAKE HOSE,INNER
59260-36E00
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP,FR BRAKE HOSE OUTER
59270-29F00
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
