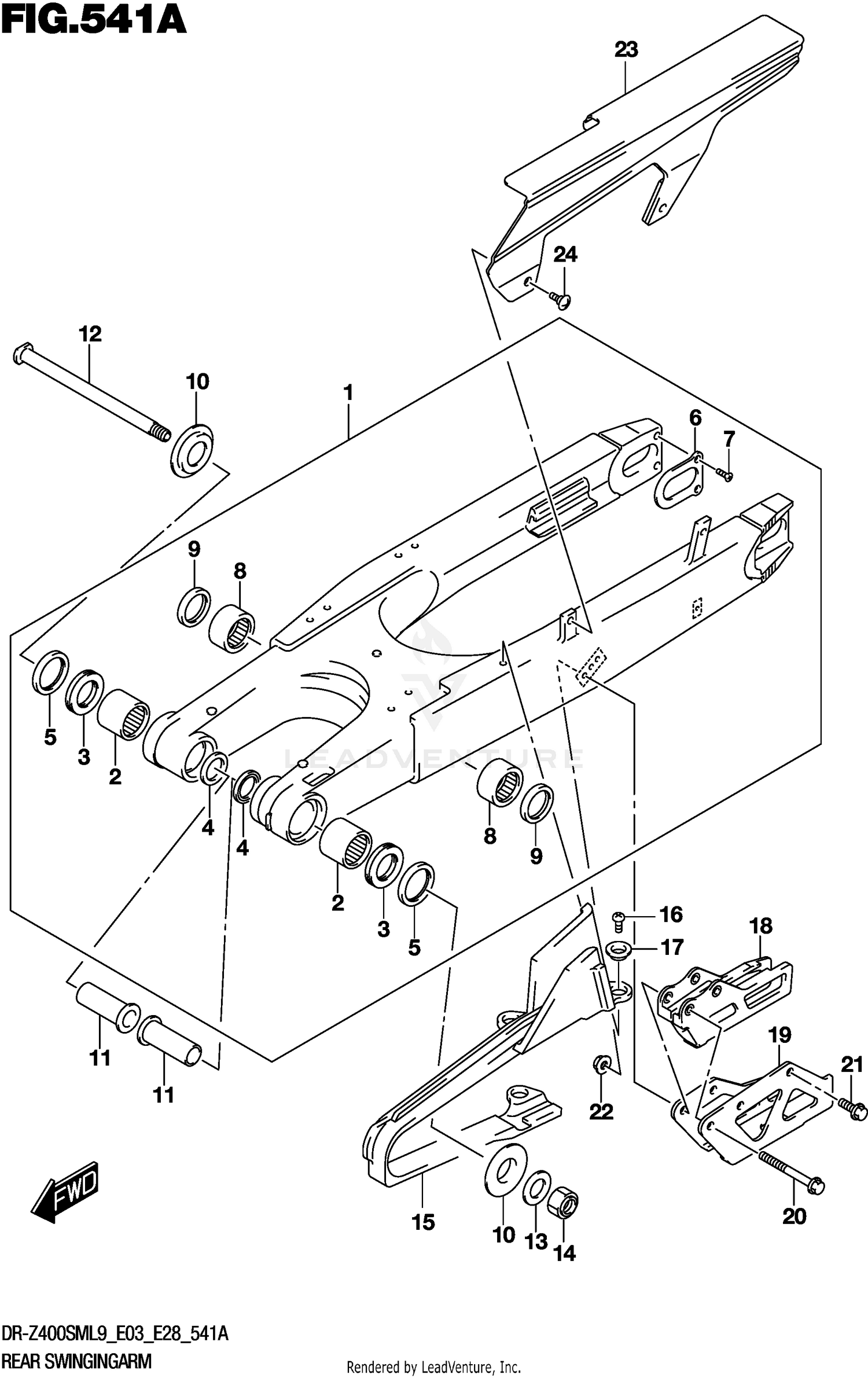

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASSY RR
61000-29F70
Superseded by 61000-29F71
|
$2,155.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (22X29X30)
09263-22017
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (22X35X2)
09263-22064
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
09285-22001
Superseded by 09285-22006
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,REAR SWGARM PIVOT,OUTER
61262-36E00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,REAR SWGARM PIVOT,OUTER
61262-36E00
|
$9.20 | ||
|
Unavailable |
|||
|
#6
.PLATE,SWGARM REAR
61128-29F70
|
$138.69 | ||
|
Unavailable |
|||
|
#7
.SCREW (5X10)
09120-05003
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BEARING (20X27X15)
09263-20086
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL,CUSHION LEVER DUST (19X
62624-14500
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER,SWINGINGARM PIVOT,OUTE
61250-44E00
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,SWGARM PIVOT,INNER
61252-36E00
|
$60.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT,REAR SWINGINGARM PIVOT
61211-29F00
|
$92.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-0116B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-16007
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUFFER,CHAIN TOUCH DEFENSE
61273-29F20
|
$85.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-0508A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09169-05022
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE,CHAIN
61341-35G00
|
$62.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE,CHAIN GUIDE
61342-37F00
|
$72.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01547-0650A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE,CHAIN
61310-34E00
|
$106.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW (6X16)
09139-06083
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
