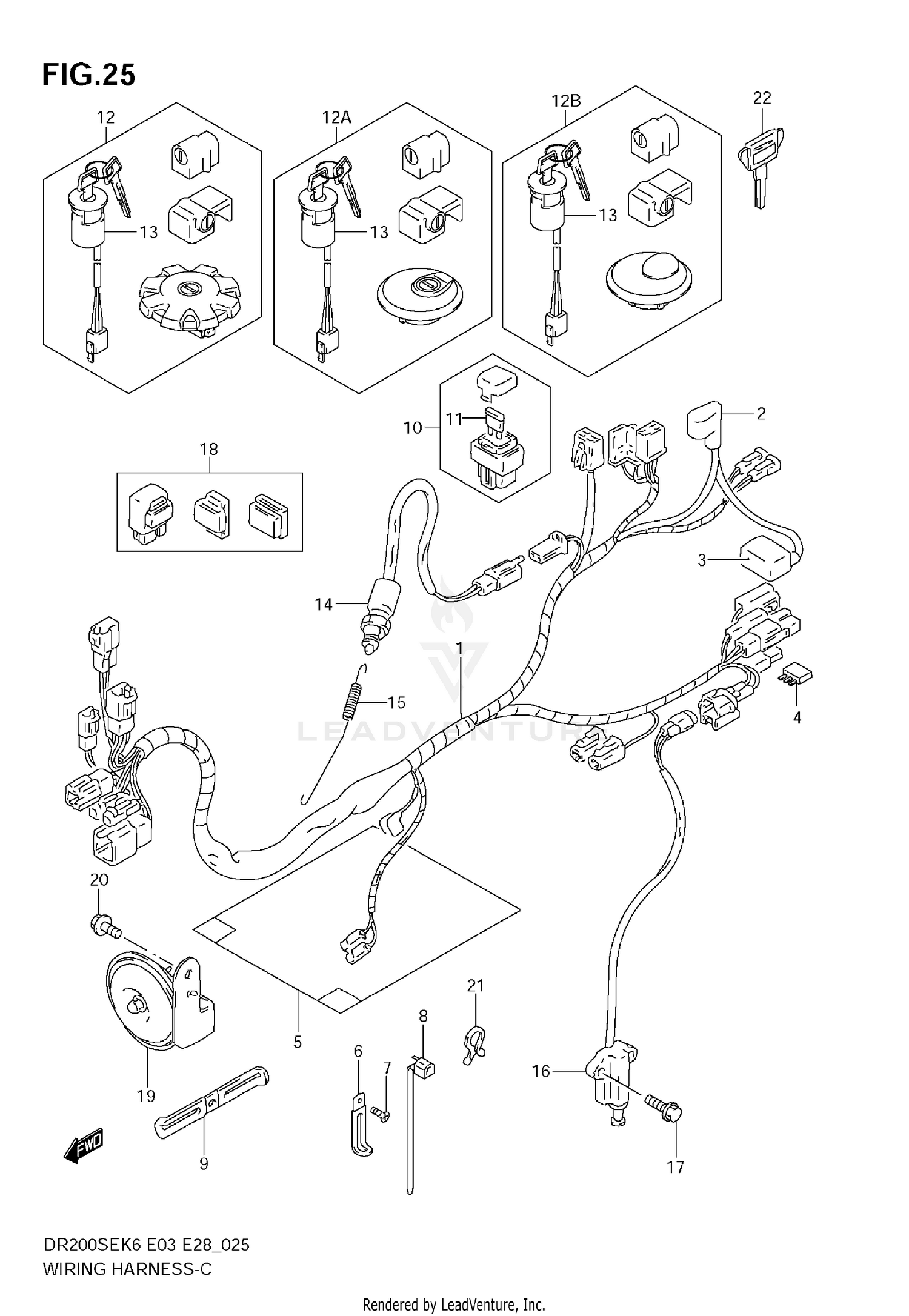

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-42A50
|
$383.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CAP,STARTER RELAY
31861-10D00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CAP,BATTERY PLUS
33624-10D00
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER WIRING HARNESS
36618-15D20
Superseded by 36618-15D21
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#6
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03541-0410B
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:95)
09407-11401
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP,STARTER MOTOR LEAD
36651-05301
|
$2.22 | ||
|
Unavailable |
|||
|
#10
BOX ASSY, FUSE
36740-24B01
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
.FUSE (20A)
09481-20101
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK SET
37000-44820
Superseded by 37000-44821
|
$276.14 | ||
|
Available to order. Add to View Price |
|||
|
#12A
LOCK SET
37000-44830
Superseded by 37000-44831
|
$255.37 | ||
|
Available to order. Add to View Price |
|||
|
#12B
LOCK SET
37000-44870
Superseded by 37000-44871
|
$258.71 | ||
|
Unavailable |
|||
|
#13
SWITCH ASSY, IGNITION
37110-44A01
Superseded by 37110-44A20
|
$112.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY, STOP LAMP
37740-45D00
|
$19.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
09443-06064
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,SID
37840-44X50
Superseded by 37840-44X52
|
$72.43 | ||
|
Unavailable |
|||
|
#17
BOLT
01550-0620B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY ASSY, SIDE STAND
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN ASSY
38500-44B00
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, LEAD WIRE
09408-00012
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY,BLANK TYPE,C (A51)
37146-03A00
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY,BLANK TYPE,D (A52)
37146-03A10
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY,BRANK TYPE,E (A53)
37146-03A20
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY,BLANK TYPE,F (A54)
37146-03A30
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
