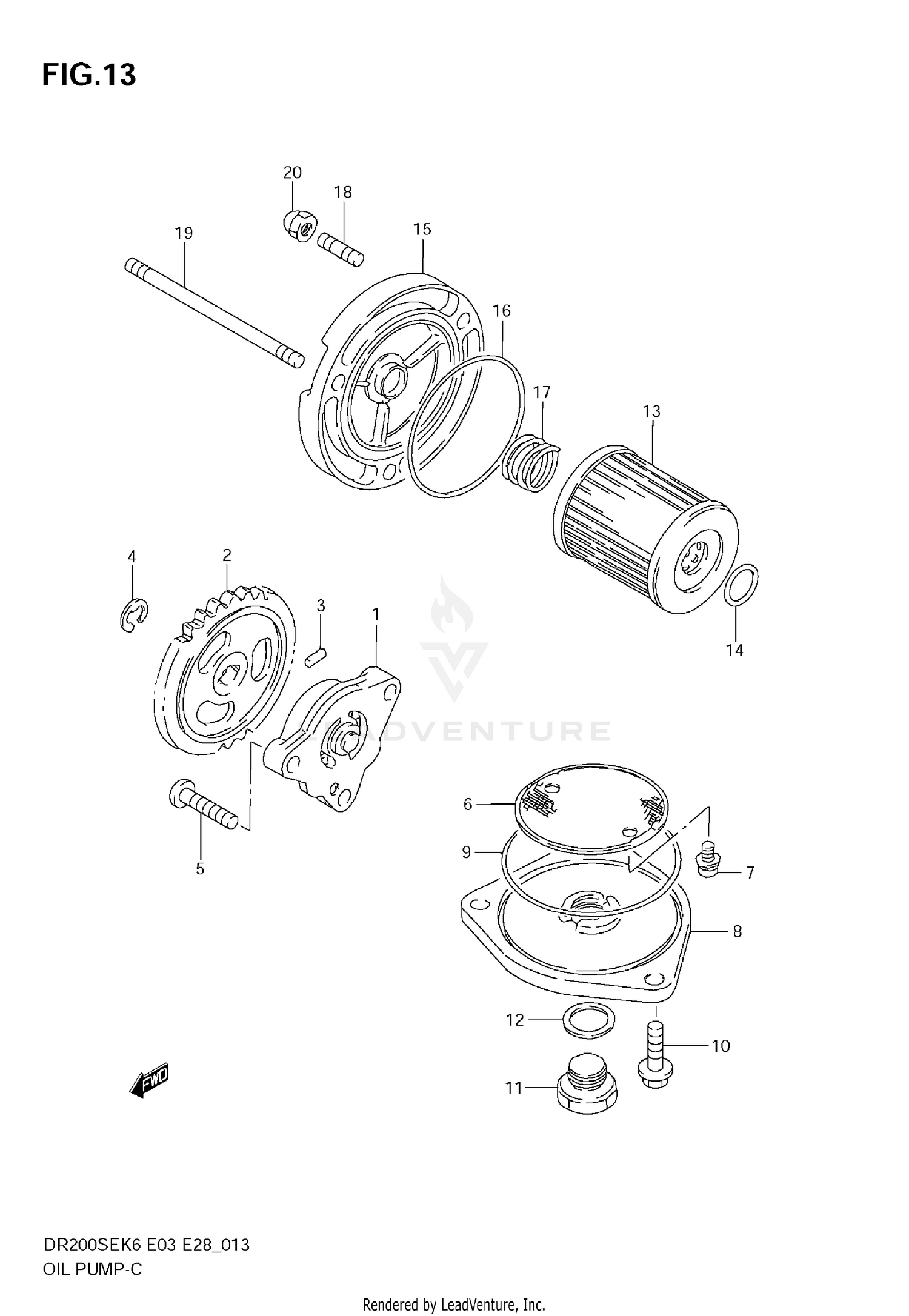

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENGINE OIL
16400-42A01
|
$168.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR,OIL PUMP DRIVEN (NT:30)
16331-35C00
|
$23.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09261-02008
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
E-RING
08332-1106A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW
02112-0625B
|
|||
|
Unavailable |
|||
|
#6
STRAINER
16520-05202
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-7512A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, OIL STRAINER
16523-05200
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:2.4,ID:60.5)
09280-60005
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
01547-0620B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PLUG (14X12)
09247-14026
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#13
FILTER, ENGINE OIL
16510-25C00
|
$9.36 | ||
|
Unavailable |
|||
|
#14
.O RING (D:1.9,ID:13)
09280-13004
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CAP, OIL FILTER
16512-42A20
|
$35.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
.O RING (D:2.4,ID:52.6)
09280-54001
|
$4.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPRING
09440-18002
|
$1.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT,STUD
09108-06123
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
STUD BOLT
09108-06108
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08313-1006B
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
