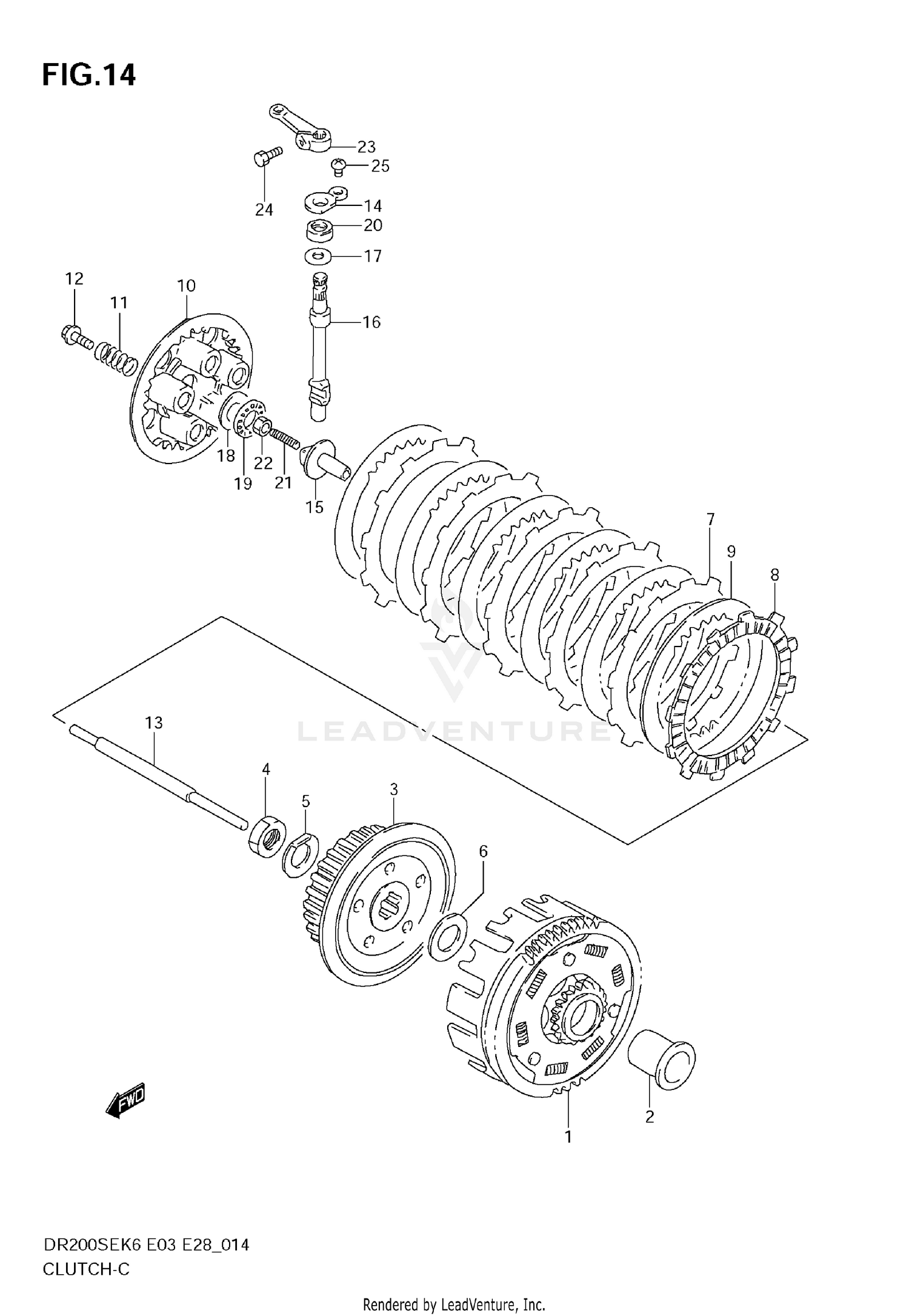

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY,PRIMARY DRIVEN (NT:
21200-42A50
|
$303.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER,PRIMARY DRIVEN GEAR
21251-13E00
|
$24.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
HUB,CLUTCH SLEEVE
21411-42A03
Superseded by 21411-42A04
|
$71.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09140-16001
Superseded by 09140-16005
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09169-16003
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08211-20355
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVE (T:3.0)
21441-25C01
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVE
21441-13A01
|
$18.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLATE,DRIVEN (T:1.4)
21451-01B40
|
$10.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
DISC, CLUTCH PRESSURE
21462-14103
Superseded by 21462-14130
|
$26.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09440-15021
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (5X16)
09116-05020
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, CLUTCH PUSH
23110-05202
Superseded by 23110-05203
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, CLUTCH PUSH
23110-05203
|
$19.46 | ||
|
Unavailable |
|||
|
#14
RETAINER CL RLSE OIL SEAL
23117-05200
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIECE, CLUTCH PUSH
23121-38201
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAM SHAFT, CLUTCH RELEASE
23122-05200
|
$54.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
THRUST WASHER (10X20X1.0)
09181-10195
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (15.5X28X1)
09160-15045
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (15X28X2)
09263-15003
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (10X20X6)
09282-10012
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
.SCREW (6X25)
09134-06010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09140-06023
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARM, CLUTCH RELEASE
23271-46010
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01500-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02142-0610B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
