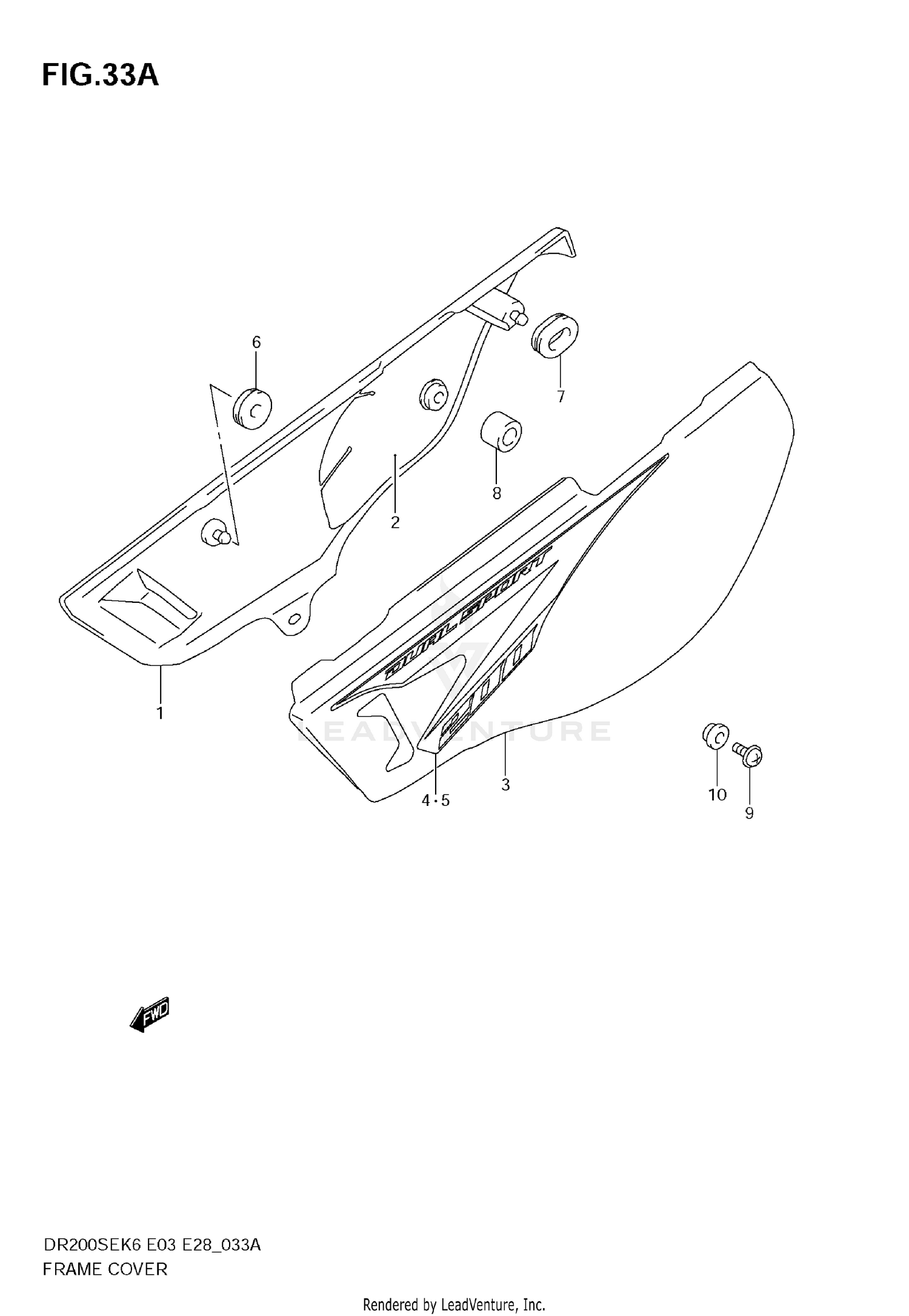

Frame Cover (model K9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLACK)
47111-44AC0-019
|
$111.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, FRAME RH (WHITE)
47111-44AC0-30H
|
$107.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIELD, FRAME COVER RH
47166-44AA0
|
$32.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FRAME LH (BLACK)
47211-44AB0-019
|
$111.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FRAME LH (WHITE)
47211-44AB0-30H
|
$103.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPE, RH
68135-42A30-GJD
|
$24.01 | ||
|
Unavailable |
|||
|
#4
TAPE, RH
68135-42A30-GJE
|
|||
|
Unavailable |
|||
|
#5
TAPE, LH
68145-42A30-GJD
|
$24.01 | ||
|
Unavailable |
|||
|
#5
TAPE, LH
68145-42A30-GJE
|
|||
|
Unavailable |
|||
|
#6
CUSHION
09320-08018
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08029
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09321-10027
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (6X16)
09136-06017
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09169-06031
Superseded by 09169-06041
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
